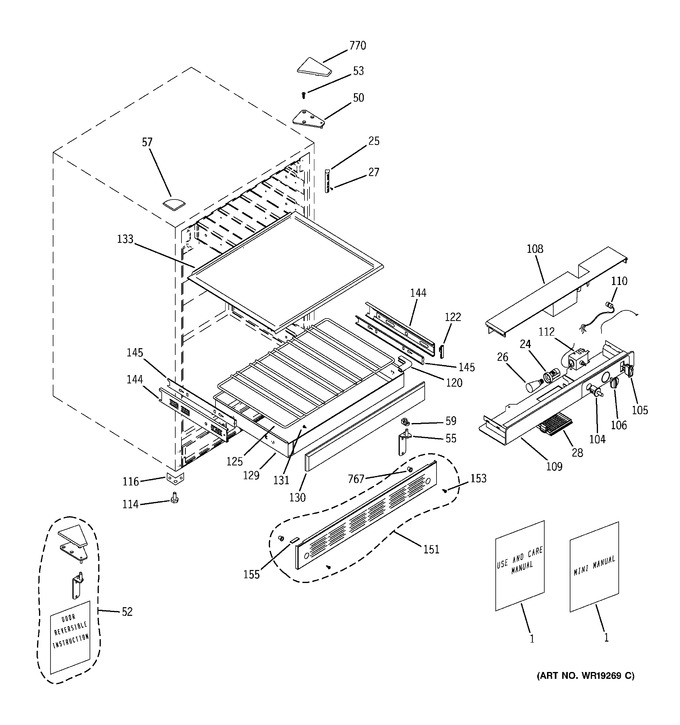

1 - Door
2 - Cabinet & Shelves
3 - Unit Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 31-51429 | Mini Manual |
|
- | |||||
| 1 | 49-60210 | Install Instruction |
|
- | |||||
| 1 | 49-60217 | Owners Manual |
|
- | |||||
| 24 | WR23X5180 | Socket Lamp |
|
- | |||||
| 25 | WR02X11410 | Temp.control Bulb Cover |
|
- | |||||
| 26 | WR23X10295 | Bulb |
|
- | |||||
| 27 | WR01X10355 | Screw, Bulb Cover |
|
- | |||||
| 28 | WR02X11415 | Bulb Shield |
|
- | |||||
| 50 | WR13X10276 | Upper Hinge Right |
|
- | |||||
| 52 | WG03L01828 | Reverse Door Hinge Kit (Replaces: WR13X10275) |
|
$ 182.70 | |||||
| 53 | WR01X10349 | Upper Hinge Screw |
|
- | |||||
| 55 | WR13X10279 | Hinge Support-lower |
|
- | |||||
| 57 | WR13X10278 | Hinge Cover |
|
- | |||||
| 59 | WR02X11417 | Cam Riser |
|
- | |||||
| 104 | WG02F04509 | Switch Spdt High Amp (Replaces: WB24T10147) |
|
$ 27.16 | |||||
| 105 | WR23X10292 | Switch |
|
- | |||||
| 106 | WR02X11408 | Thermostat Knob |
|
- | |||||
| 108 | WR17X11391 | Control Housing Cover |
|
- | |||||
| 109 | WR17X11395 | Control Housing |
|
- | |||||
| 110 | WR23X10294 | Harness Temp Contr |
|
- | |||||
| 112 | WR09X10094 | Control Temperature |
|
- | |||||
| 114 | WR01X10347 | Leveling Leg Front |
|
- | |||||
| 116 | WR2X8319 | Leveling Leg Support |
|
- | |||||
| 120 | WG03L02641 | Rubber Corner Piece (Replaces: WR02X11830) |
|
$ 63.21 | |||||
| 122 | WR02X11412 | Guide Front |
|
- | |||||
| 125 | WR71X10469 | Bottle Rack - Short |
|
- | |||||
| 129 | WR72X10121 | Bottle Shelf Frame |
|
- | |||||
| 130 | WR17X11390 | Frame Front |
|
- | |||||
| 131 | WR01X10354 | Screw Frame Front |
|
- | |||||
| 133 | WR71X10470 | Glass Shelf |
|
- | |||||
| 144 | WR17X11394 | Inner-liner Guide Short |
|
- | |||||
| 145 | WR72X10123 | Frame Guide Short |
|
- | |||||
| 151 | WR79X10032 | Kick Plate Kit - Ss |
|
- | |||||
| 151 | WR74X10142 | Kick Plate Bk |
|
- | |||||
| 151 | WR74X10143 | Kick Plate Wh |
|
- | |||||
| 153 | WR01X10358 | Kick Plate Screw Wh |
|
- | |||||
| 153 | WR01X10359 | Kick Plate Screw Bk |
|
- | |||||
| 155 | WR02X11413 | Kick Plate Front Wh |
|
- | |||||
| 155 | WR02X11414 | Kick Plate Front Bk |
|
- | |||||
| 767 | WR02X11485 | Kick Plate Spacer |
|
- | |||||
| 770 | WR02X11780 | Cover Hinge Support Lh |
|
- | |||||
| 770 | WR02X11486 | Cover Hinge Support Rh |
|
- |
