1 - Door


2 - Cabinet & Shelves


3 - Climate Controls


4 - Machine Compartment

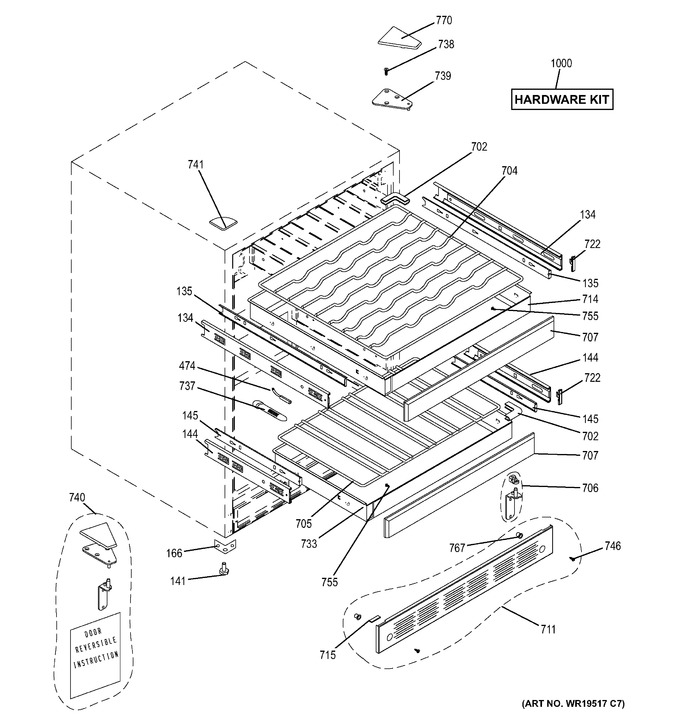

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
134	WR17X11393		Inner-liner Guide		Appelez-nous	-
135	WR72X10122		Frame Guide		Appelez-nous	-
141	WR01X10456		Levelling Leg		Appelez-nous	-
144	WR17X11394		Inner-liner Guide Short		Appelez-nous	-
145	WR72X10123		Frame Guide Short Slid		Appelez-nous	-
166	WR02X11844		Levelling Leg Support		Appelez-nous	-
474	WR55X10409		Temp Sensor		Appelez-nous	-
702	WG03L02641		Corner Piece   (Replaces: WR02X11830)				$ 63.21
704	WR71X10468		Bottle Rack		Appelez-nous	-
705	WR71X10469		Bottle Rack - Short		Appelez-nous	-
706	WR13X10279		Hinge Support-lower		Appelez-nous	-
707	WR17X11390		Frame Front		Appelez-nous	-
711	WR79X10032		Kick Plate Kit - Ss		Appelez-nous	-
711	WR74X10190		Kick Plate Kit - Black		Appelez-nous	-
714	WR72X10120		Wine Bottle Shelf Frame		Appelez-nous	-
715	WR02X11414		Kick Plate Front Bk		Appelez-nous	-
722	WR02X11412		Guide Front		Appelez-nous	-
733	WR72X10121		Bottle Shelf Frame		Appelez-nous	-
737	WR02X11845		Temp.control Bulb Cover		Appelez-nous	-
738	WR01X10349		Upper Hinge Screw		Appelez-nous	-
739	WR13X10276		Upper Hinge Right		Appelez-nous	-
740	WG03L01828		Reverse Door Hinge Kit   (Replaces: WR13X10275)				$ 182.70
741	WR13X10278		Hinge Cover		Appelez-nous	-
746	WR01X10457		Kick Plate Screw - Black		Appelez-nous	-
755	WR01X10354		Screw Frame Front		Appelez-nous	-
767	WR02X11485		Kick Plate Spacer		Appelez-nous	-
770	WR02X11486		Cover Hinge Support Rh		Appelez-nous	-
1000	WR01X10455		Screw Kit		Appelez-nous	-
