SELECT A DIAGRAM

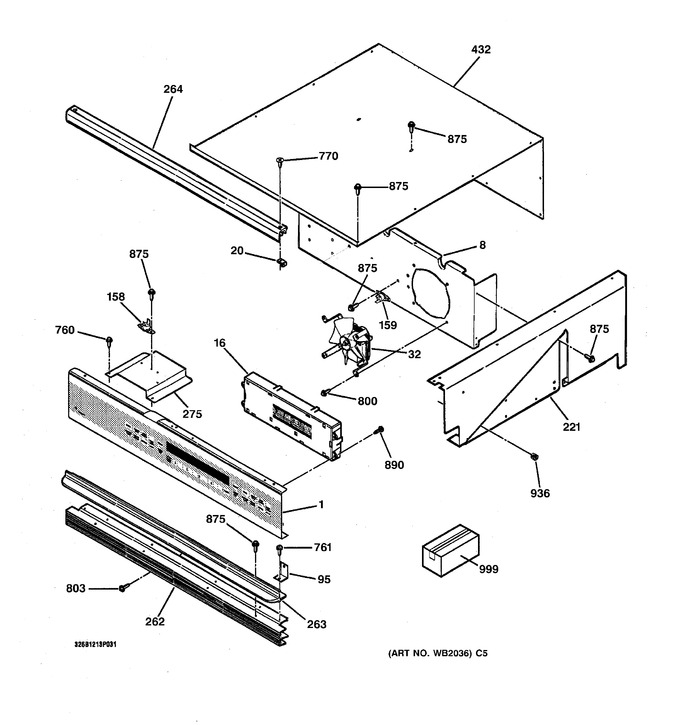

1 - Control Panel
2 - Body Parts
3 - Door
4 - Door Lock
5 - Convection Fan
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WB36K5728 | Control Panel W/kpd-blk |
|
- | |||||
| 8 | WB2K5257 | Fan Support-upper |
|
- | |||||
| 16 | WB27K5334 | Clock/oven Control |
|
- | |||||
| 20 | WB2K5146 | Trim Bracket |
|
- | |||||
| 32 | WB26K5071 | Fan-upper |
|
- | |||||
| 95 | WB2K5203 | Vent Trim Bracket |
|
- | |||||
| 158 | WB24K5033 | Limit Switch |
|
- | |||||
| 159 | WG02F04523 | Limit Switch (Replaces: WB24K5085) |
|
$ 28.58 | |||||
| 221 | WB63K5082 | Side Extenstion-rt-upper |
|
- | |||||
| 221 | WB63K5083 | Side Extension-lt-upper |
|
- | |||||
| 262 | WB7K5073 | Vent Trim-blk |
|
- | |||||
| 262 | WB7K5075 | Vert Side Trim-lt-black |
|
- | |||||
| 262 | WB7K5076 | Vert Side Trim-rt-black |
|
- | |||||
| 263 | WB7K5510 | I-brow Trim-blk |
|
- | |||||
| 264 | WB7K5071 | Top Control Pnl Trim-blk |
|
- | |||||
| 275 | WB34K5078 | Vent Box Cover |
|
- | |||||
| 432 | WB63K5094 | Top Cover |
|
- | |||||
| 760 | WB1K5028 | Screw |
|
- | |||||
| 761 | WB1K5029 | Screw-black |
|
- | |||||
| 761 | WB1K5062 | Screw-brt. Ni. |
|
- | |||||
| 770 | WB1K5068 | Screw-blk |
|
- | |||||
| 770 | WB1K5072 | Screw |
|
- | |||||
| 800 | WB1K5138 | Screw |
|
- | |||||
| 803 | WB1K5162 | Screw-black |
|
- | |||||
| 875 | WG04A00781 | Screw (Replaces: WH2X930) |
|
Immediately | $ 3.57 | ||||
| 890 | WB1M27 | Screw |
|
- | |||||
| 936 | WB1K5065 | Snap Bushing |
|
- | |||||
| 999 | 49-8443 | Pm Cookbook |
|
- | |||||
| 999 | 31-10123 | Installation Instruction |
|
- | |||||
| 999 | 31-13305 | Mini Manual W/wire Diag. |
|
- | |||||
| 999 | 49-8711 | Pm Manual Use & Care |
|
- |
