SELECT A DIAGRAM

1 - Component Group


2 - Component Group


3 - Component Group

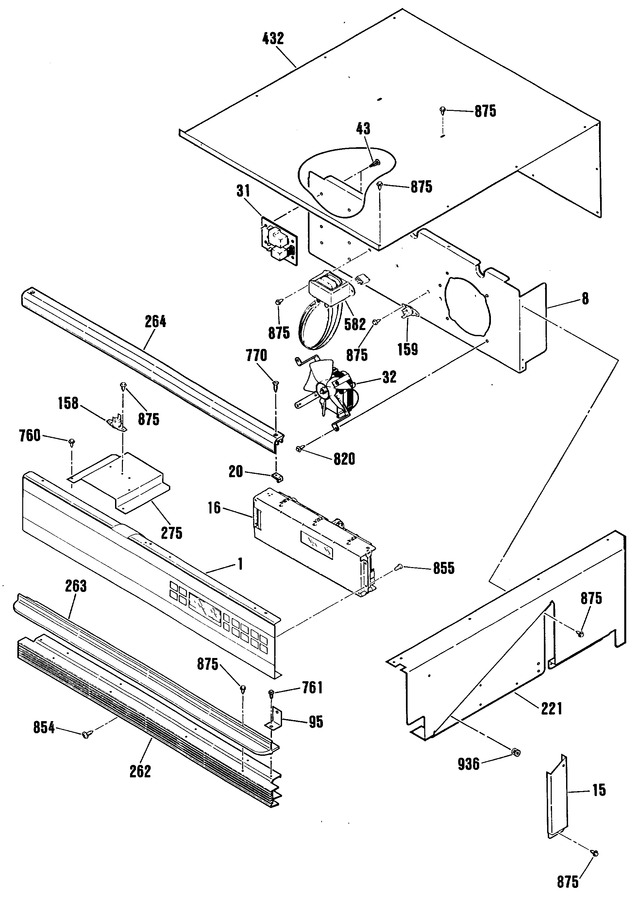

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WB36K5237		Control Panel Asm		Appelez-nous	-
8	WB2K5257		Fan Support		Appelez-nous	-
15	WB34K5090		Meat Probe Wire Cover		Appelez-nous	-
16	WB27K5046		Clock/oven Control		Appelez-nous	-
20	WB2K5146		Trim Bracket		Appelez-nous	-
31	WB27K5077		Relay Board		Appelez-nous	-
32	WB26K5045		Fan		Appelez-nous	-
43	WB2X9158		Pc Board Spacer		Appelez-nous	-
95	WB2K5203		Vent Trim Bracket		Appelez-nous	-
158	WB24K5033		Limit Switch		Appelez-nous	-
159	WB24K5034		Limit Switch-erc		Appelez-nous	-
221	WB63K5082		Side Extenstion-rt-upper		Appelez-nous	-
221	WB63K5083		Side Extension-lt-upper		Appelez-nous	-
262	WB7K5081		Vert Side Trim-lt-white		Appelez-nous	-
262	WB7K5079		Vent Trim		Appelez-nous	-
262	WB7K5082		Vert Side Trim-rt-white		Appelez-nous	-
263	WB7K5078		Trim-i-brow Gray		Appelez-nous	-
264	WB7K5077		Cnt Pnl Top Trim-white		Appelez-nous	-
275	WB34K5078		Vent Box Cover		Appelez-nous	-
432	WB63K5094		Top Cover		Appelez-nous	-
582	WB20K5008		Transformer		Appelez-nous	-
760	WB1K5028		Screw		Appelez-nous	-
761	WB1K5062		Screw-brt. Ni.		Appelez-nous	-
761	WB1K5029		Screw-black		Appelez-nous	-
820	WB1X1424		Screw		Appelez-nous	-
854	WB1X1328		Screw		Appelez-nous	-
875	WB1K5057		Screw		Appelez-nous	-
936	WB1K5065		Snap Bushing		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
