SELECT A DIAGRAM
1 - Control Panel
2 - Body Parts
3 - Oven Door
4 - Lock
5 - Component Group
New Model Search:

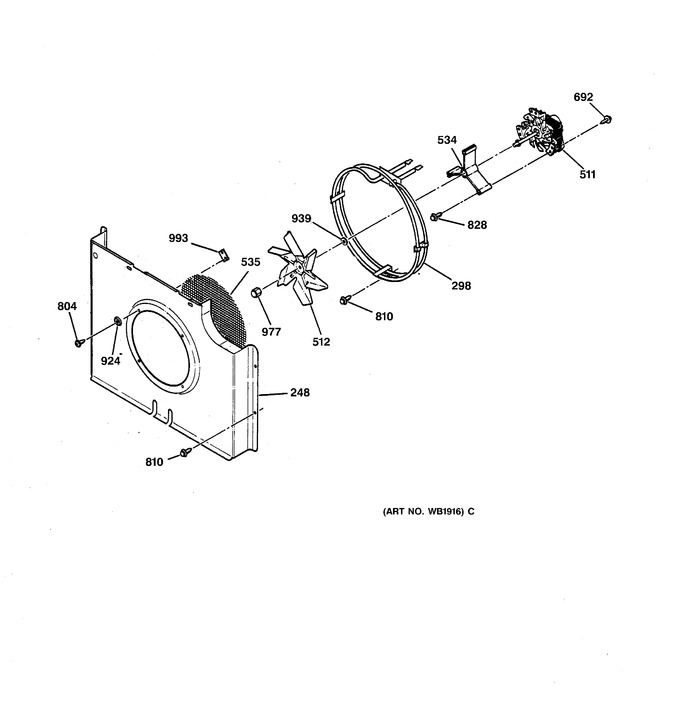

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 248 | WB63K5137 | Panel Ov Inner Asm |
|
- | |||||
| 298 | WG02F05489 | Element-convx (Replaces: WB44K5029) |
|
Immediately | $ 104.36 | ||||
| 511 | WB26K5069 | Convection Fan Motor |
|
- | |||||
| 512 | WB26K5040 | Blade Fan |
|
- | |||||
| 534 | WB26K5050 | Oven Cavity Support |
|
- | |||||
| 535 | WB26K5042 | Screen (s.s. Convx) |
|
- | |||||
| 692 | WZ04X0416 | Screw |
|
- | |||||
| 804 | WB1X1127 | Screw |
|
- | |||||
| 810 | WB1X1253 | Screw |
|
- | |||||
| 828 | WB1X1141 | Screw |
|
- | |||||
| 924 | WB1K5146 | Washer |
|
- | |||||
| 939 | WB1K5126 | Washer |
|
- | |||||
| 977 | WB1K5125 | Nut |
|
- | |||||
| 993 | WB1K5141 | Speed Nut-flat |
|
- |
