SELECT A DIAGRAM

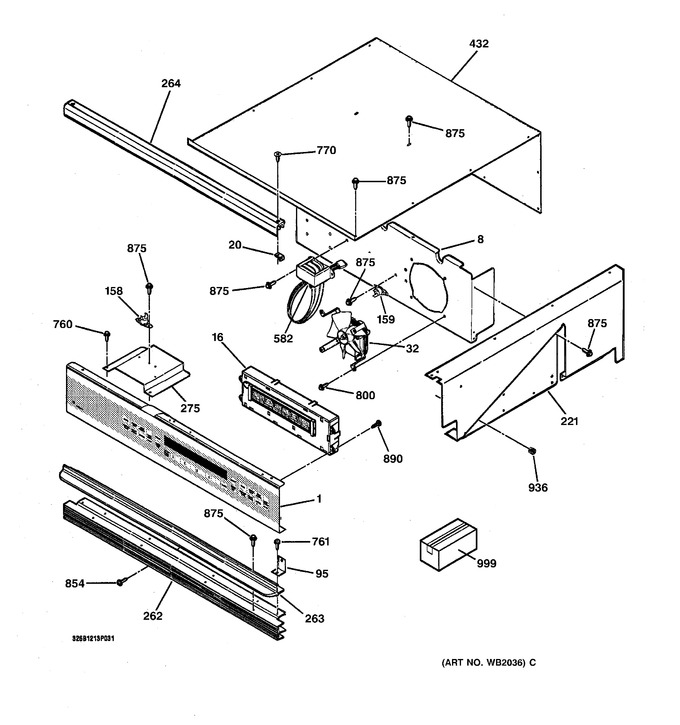

1 - Control Panel
2 - Body Parts
3 - Door
4 - Door Lock
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WB36K5734 | Control Panel W/kpd |
|
- | |||||
| 8 | WB2K5137 | Fan Support-lower |
|
- | |||||
| 8 | WB2K5257 | Fan Support-upper |
|
- | |||||
| 16 | WB27K5320 | Clock/oven Control |
|
- | |||||
| 20 | WB2K5146 | Trim Bracket |
|
- | |||||
| 32 | WB26K5045 | Fan |
|
- | |||||
| 32 | WB26K5072 | Fan-lower |
|
- | |||||
| 95 | WB2K5203 | Vent Trim Bracket |
|
- | |||||
| 158 | WB24K5033 | Switch Limit |
|
- | |||||
| 159 | WG02F04523 | Limit Switch (Replaces: WB24K5085) |
|
$ 28.58 | |||||
| 221 | WB63K5083 | Side Extension-lt-upper |
|
- | |||||
| 221 | WB63K5174 | Body Side Extension-lowr |
|
- | |||||
| 221 | WB63K5082 | Side Extenstion-rt-upper |
|
- | |||||
| 262 | WB7K5097 | Vert Side Trim-lt-wht |
|
- | |||||
| 262 | WB7K5098 | Vert Side Trim-rt-wht |
|
- | |||||
| 262 | WB7K5079 | Vent Trim |
|
- | |||||
| 263 | WB7K5096 | Trim-i Brow Gray |
|
- | |||||
| 263 | WB7K5511 | I-brow Trim-wht |
|
- | |||||
| 264 | WB7K5077 | Cnt Pnl Top Trim-white |
|
- | |||||
| 275 | WB34K5078 | Vent Box Cover |
|
- | |||||
| 432 | WB63K5094 | Cover Top |
|
- | |||||
| 692 | WZ04X0416 | Screw |
|
- | |||||
| 760 | WB1K5028 | Screw |
|
- | |||||
| 761 | WB1K5185 | Screw-white |
|
- | |||||
| 761 | WB1K5134 | Screw-gray |
|
- | |||||
| 770 | WB01T10012 | Screw 8-18 Ab Flt .375 B |
|
- | |||||
| 770 | WB1K5072 | Screw |
|
- | |||||
| 796 | WB1K5116 | Screw |
|
- | |||||
| 800 | WB1K5138 | Screw |
|
- | |||||
| 854 | WB1X1328 | Screw-black |
|
- | |||||
| 875 | WG04A00781 | Scr 8-18 Ab Hxw 3/8 S (Replaces: WH2X930) |
|
Immediately | $ 3.57 | ||||
| 890 | WB1M27 | Screw St 6-20x.437 Tr |
|
- | |||||
| 936 | WB1K5065 | Snap Bushing |
|
- | |||||
| 999 | WB18K5643 | Harness Wire Main |
|
- | |||||
| 999 | 31-10123 | Installation Instruction |
|
- | |||||
| 999 | 31-13334 | Mini Manual W/wire Diag. |
|
- | |||||
| 999 | 49-8757 | Pm Manual Use & Care |
|
- | |||||
| 999 | WB18K5617 | Lock Motor Wire Harness |
|
- | |||||
| 999 | WB18K5650 | Harness Wire Lock Mtr |
|
- |
