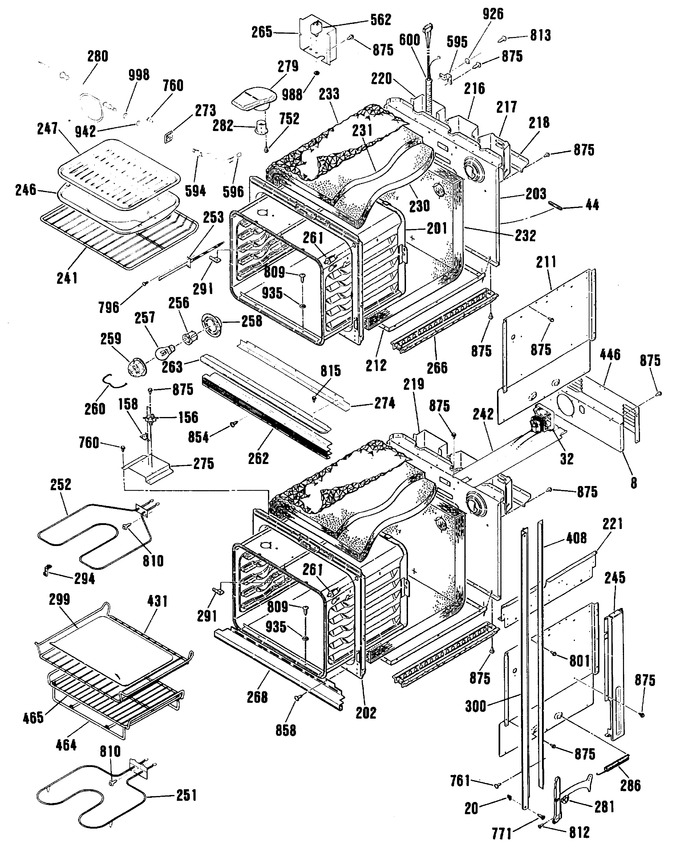

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 8 | WB2K5137 | Fan Support-lower |
|
- | |||||
| 8 | WB2K5133 | Fan Support-upper |
|
- | |||||
| 20 | WB2K5146 | Trim Bracket |
|
- | |||||
| 32 | WB26X115 | Fan Assembly Upper |
|
- | |||||
| 32 | WB26X113 | Fan Asm |
|
- | |||||
| 44 | WB2K5225 | Grommet Strip (.020) |
|
- | |||||
| 156 | WB24K5049 | Limit Switch |
|
- | |||||
| 158 | WB24K5033 | Limit Switch |
|
- | |||||
| 201 | WB63K5135 | Wrapper Asm(convx) |
|
- | |||||
| 202 | WB63K5084 | Front Frame Asm |
|
- | |||||
| 203 | WB63K5136 | Back Main |
|
- | |||||
| 211 | WB63K5085 | Cabinet Side |
|
- | |||||
| 212 | WB63K5080 | Cabinet Bottom |
|
- | |||||
| 216 | WB34K5069 | Wire Cover-element |
|
- | |||||
| 217 | WB34K5070 | Wire Cover-light |
|
- | |||||
| 218 | WB34K5067 | Wire Cover Bottom |
|
- | |||||
| 219 | WB34K5082 | Wire Cover-conduit |
|
- | |||||
| 220 | WB34K5145 | Cover Wire Conduit Convx |
|
- | |||||
| 221 | WB63K5082 | Side Extension-rt-upper |
|
- | |||||
| 221 | WB63K5093 | Cab Side Extension-low |
|
- | |||||
| 221 | WB63K5083 | Side Extension-lt-upper |
|
- | |||||
| 230 | WB35K5048 | Insulation-top& Sides-in |
|
- | |||||
| 231 | WB35K5068 | Top/sides Out Ins-upper |
|
- | |||||
| 232 | WB35K5047 | Insulation-back & Bottom |
|
- | |||||
| 233 | WB34K5080 | Heat Reflector |
|
- | |||||
| 241 | WB48K5009 | Rack Ov (convx Flat) |
|
- | |||||
| 242 | WB38K5041 | Air Channel |
|
- | |||||
| 245 | WB2K5139 | Vertical Side Trim |
|
- | |||||
| 246 | WB48M3 | Broiler Pan |
|
- | |||||
| 247 | WB49X627 | Broiler Pan Grid |
|
- | |||||
| 251 | WB44K5013 | Bake Element |
|
$ 113.30 | |||||
| 252 | WG02F05475 | Broil Element (Replaces: WB44K5009) |
|
$ 103.82 | |||||
| 253 | WB20X106 | Oven Sensor |
|
- | |||||
| 256 | WB8K5029 | Receptacle |
|
- | |||||
| 257 | BUY LOCAL | Lamp Oven |
|
- | |||||
| 258 | WB2X7693 | Oven Light Cup |
|
- | |||||
| 259 | WG02F04576 | Ov Lamp Lens (Replaces: WB36X389) |
|
$ 18.59 | |||||
| 260 | WB2X7694 | Light Lens Bail |
|
- | |||||
| 261 | 318394803 | Jam Switch (Replaces: WB24K5061) |
|
Immediately | $ 44.23 | ||||
| 262 | WB7K5079 | Vent Trim |
|
- | |||||
| 263 | WB7K5078 | Trim-i-brow Gray |
|
- | |||||
| 263 | WB7K5096 | Trim-i Brow Gray |
|
- | |||||
| 265 | WB34K5142 | Cover Wire Cnoduit Convx |
|
- | |||||
| 266 | WB63K5079 | Rail Base |
|
- | |||||
| 268 | WB7K5080 | Lower Frt Frame Trim-wht |
|
- | |||||
| 273 | WB34K5140 | Probe Cover |
|
- | |||||
| 274 | WB7K5094 | Vent Trim Extension |
|
- | |||||
| 275 | WB34K5078 | Vent Box Cover |
|
- | |||||
| 279 | WB38K5028 | Vent Box Asm-black |
|
- | |||||
| 280 | WB20X5050 | Sensor Probe |
|
- | |||||
| 281 | WB14K5006 | Ov Dr Hinge-rt |
|
- | |||||
| 281 | WB14K5007 | Ov Dr Hinge-lt |
|
- | |||||
| 282 | WB28K5010 | Vent Tube |
|
- | |||||
| 286 | WB9K5012 | Ov Dr Spring |
|
- | |||||
| 291 | WB2X9152 | Cover |
|
- | |||||
| 294 | WS01A01413 | Broil Element Support (Replaces: WB2X9719) |
|
$ 10.54 | |||||
| 299 | WB6K5024 | Tray Cookie Large |
|
- | |||||
| 299 | WB6K5025 | Cookie Tray |
|
- | |||||
| 300 | WB7K5098 | Vert Side Trim-rt-wht |
|
- | |||||
| 300 | WB7K5097 | Vert Side Trim-lt-wht |
|
- | |||||
| 408 | WB2K5229 | Bracket Sd Trm Adjust Rt |
|
- | |||||
| 408 | WB2K5141 | Sd Trim Adj Bracket-lt |
|
- | |||||
| 431 | WB48K5010 | Rack Ov (convx Offset) |
|
- | |||||
| 446 | WB34K5089 | Wire Cover-center |
|
- | |||||
| 464 | WB48K5011 | Rack Convx Roast |
|
- | |||||
| 465 | WB48K5012 | Rack Grid Convx Roast |
|
- | |||||
| 594 | WB8K5012 | Jack Receptacle |
|
- | |||||
| 595 | WB2K5126 | Conduit Clamp |
|
- | |||||
| 596 | WB8K5013 | Housing Asm Receptacle |
|
- | |||||
| 600 | WB18K5365 | Conduit Wire Asm |
|
- | |||||
| 752 | WZ04X0345 | Screw |
|
- | |||||
| 760 | WB1K5028 | Screw |
|
- | |||||
| 761 | WB1K5062 | Screw |
|
- | |||||
| 771 | WB1K5067 | Screw |
|
- | |||||
| 796 | WB1K5116 | Screw |
|
- | |||||
| 801 | WB1M1 | Screw |
|
- | |||||
| 809 | WG02A00781 | Screw (Replaces: WB1X1137) |
|
$ 14.29 | |||||
| 810 | WB1X1135 | Screw |
|
- | |||||
| 812 | WB1X1133 | Screw |
|
- | |||||
| 813 | WS01A00445 | Screw (Replaces: WB1X1261) |
|
$ 12.51 | |||||
| 815 | WB1X1149 | Screw |
|
- | |||||
| 854 | WB1X1328 | Screw |
|
- | |||||
| 858 | WB1K5113 | Wood Screw |
|
- | |||||
| 875 | WB1K5057 | Screw |
|
- | |||||
| 926 | WB1X1260 | Ground Washer |
|
- | |||||
| 935 | WB1X1201 | Washer |
|
- | |||||
| 942 | WB1X5573 | Washer |
|
- | |||||
| 998 | WG02A00927 | Nut (Replaces: WB1X5572) |
|
$ 67.26 |
