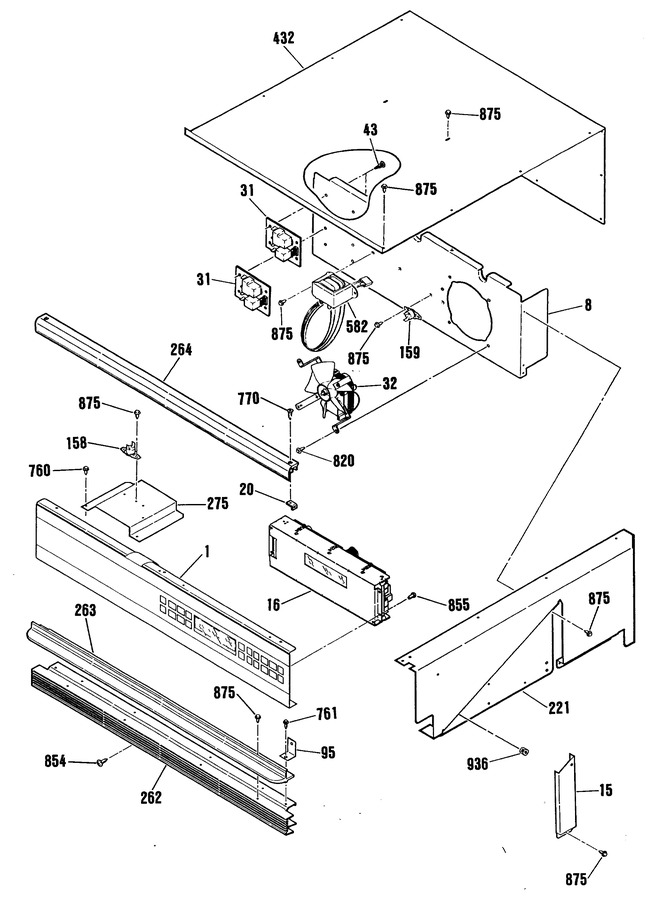

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
1 - Component Group
2 - Component Group
3 - Component Group
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WB36K5239 | Control Panel Asm |
|
- | |||||
| 8 | WB2K5257 | Fan Support-upper |
|
- | |||||
| 8 | WB2K5137 | Fan Support-lower |
|
- | |||||
| 15 | WB34K5090 | Meat Probe Wire Cover |
|
- | |||||
| 16 | WB27K5048 | Clock/oven Control |
|
- | |||||
| 20 | WB2K5146 | Trim Bracket |
|
- | |||||
| 31 | WB27K5077 | Relay Board |
|
- | |||||
| 32 | WB26X113 | Fan-lower |
|
- | |||||
| 32 | WB26K5045 | Fan-upper |
|
- | |||||
| 43 | WB2X9158 | Pc Board Spacer |
|
- | |||||
| 95 | WB2K5203 | Vent Trim Bracket |
|
- | |||||
| 121 | WB57K5272 | Oven Door Glass-white |
|
- | |||||
| 158 | WB24K5033 | Limit Switch |
|
- | |||||
| 159 | WB24K5034 | Limit Switch-erc |
|
- | |||||
| 221 | WB63K5093 | Cab Side Extension-low |
|
- | |||||
| 221 | WB63K5083 | Side Extension-lt-upper |
|
- | |||||
| 221 | WB63K5082 | Side Extenstion-rt-upper |
|
- | |||||
| 262 | WB7K5098 | Vert Side Trim-rt-wht |
|
- | |||||
| 262 | WB7K5097 | Vert Side Trim-lt-white |
|
- | |||||
| 262 | WB7K5079 | Vent Trim |
|
- | |||||
| 263 | WB7K5078 | Trim-i-brow-wht-upper |
|
- | |||||
| 263 | WB7K5096 | Trim-i Brow-wht-center |
|
- | |||||
| 264 | WB7K5077 | Cnt Pnl Top Trim-white |
|
- | |||||
| 275 | WB34K5078 | Vent Box Cover |
|
- | |||||
| 432 | WB63K5094 | Top Cover |
|
- | |||||
| 582 | WB20K5008 | Transformer |
|
- | |||||
| 760 | WB1K5028 | Screw |
|
- | |||||
| 761 | WB1K5062 | Screw-brt. Ni. |
|
- | |||||
| 770 | WB1K5067 | Screw |
|
- | |||||
| 820 | WB1X1424 | Screw |
|
- | |||||
| 854 | WB1X1328 | Screw |
|
- | |||||
| 855 | WB1X1295 | Screw |
|
- | |||||
| 875 | WB1K5057 | Screw |
|
- | |||||
| 887 | WB1K5172 | Trim Screw-white |
|
- | |||||
| 936 | WB1K5065 | Snap Bushing |
|
- | |||||
| 999 | WB18K5358 | Harness Wire Main |
|
- | |||||
| 999 | 49-8303 | Cookbook |
|
- | |||||
| 999 | WB18K5217 | Latch Motor W Harness-lo |
|
- | |||||
| 999 | 49-8307 | Manual Use & Care |
|
- | |||||
| 999 | WB18K5416 | Relay Wire Harness |
|
- | |||||
| 999 | 31-10079 | Installation Instruction |
|
- | |||||
| 999 | WB18K5210 | Lock Mtr Wire Harness |
|
- | |||||
| 999 | WB18K5220 | Main Wire Harness-lo |
|
- | |||||
| 999 | 31-10027 | Instruction Sheet |
|
- | |||||
| 999 | WB18K5360 | Harness Wire Main |
|
- | |||||
| 999 | 31-13075 | Manual Mini & Wire Diag |
|
- |
