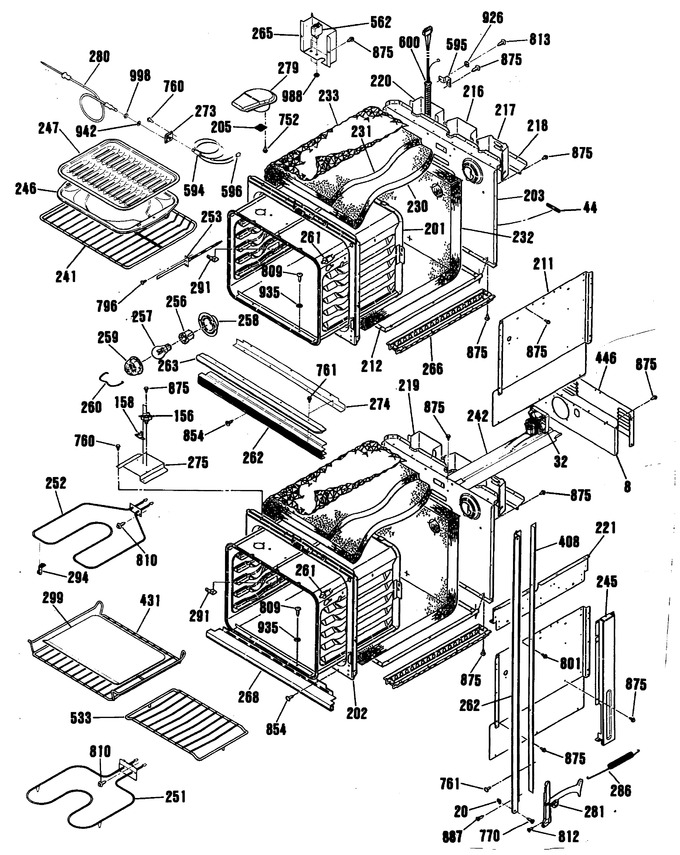

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 8 | WB2K5257 | Fan Support-upper |
|
- | |||||
| 8 | WB2K5137 | Fan Support-lower |
|
- | |||||
| 20 | WB2K5146 | Trim Bracket |
|
- | |||||
| 32 | WB26K5045 | Fan-upper |
|
- | |||||
| 32 | WB26X113 | Fan-lower |
|
- | |||||
| 44 | WB2K5225 | Grommet Strip (.020) |
|
- | |||||
| 156 | WB24K5049 | Limit Switch |
|
- | |||||
| 158 | WB24K5033 | Limit Switch |
|
- | |||||
| 201 | WB63K5166 | Oven Body |
|
- | |||||
| 202 | WB63K5084 | Front Frame Asm |
|
- | |||||
| 203 | WB63K5168 | Main Back |
|
- | |||||
| 205 | WB6K5026 | Smoke Elim Screen |
|
- | |||||
| 211 | WB63K5173 | Body Side |
|
- | |||||
| 212 | WB63K5080 | Cabinet Bottom |
|
- | |||||
| 216 | WB34K5069 | Wire Cover-element |
|
- | |||||
| 217 | WB34K5070 | Wire Cover-light |
|
- | |||||
| 218 | WB34K5067 | Wire Cover Bottom |
|
- | |||||
| 219 | WB34K5082 | Wire Cover-conduit |
|
- | |||||
| 220 | WB34K5145 | Cover Wire Conduit Convx |
|
- | |||||
| 221 | WB63K5082 | Side Extenstion-rt-upper |
|
- | |||||
| 221 | WB63K5083 | Side Extension-lt-upper |
|
- | |||||
| 230 | WB35K5048 | Insulation-wrapper-inner |
|
- | |||||
| 231 | WB35K5068 | Insulation Wrapper-outer |
|
- | |||||
| 232 | WB35K5089 | Insulation Back & Bttm |
|
- | |||||
| 233 | WB34K5080 | Heat Reflector |
|
- | |||||
| 241 | WB48K5009 | Rack Ov (convx Flat) |
|
- | |||||
| 242 | WB38K5041 | Air Channel |
|
- | |||||
| 245 | WB2K5139 | Vertical Side Supt |
|
- | |||||
| 246 | WB48M3 | Broiler Pan |
|
- | |||||
| 247 | WB48K5018 | Broiler Pad Grid |
|
- | |||||
| 251 | WB44K5013 | Bake Element |
|
$ 113.30 | |||||
| 252 | WG02F05475 | Broil Element (Replaces: WB44K5009) |
|
$ 115.36 | |||||
| 253 | WB20X106 | Oven Sensor |
|
- | |||||
| 256 | WB8K5029 | Receptacle |
|
- | |||||
| 257 | BUY LOCAL | Oven Lamp |
|
- | |||||
| 258 | WB2X7693 | Oven Light Cup |
|
- | |||||
| 259 | WG02F04576 | Ov Lamp Lens (Replaces: WB36X389) |
|
$ 20.65 | |||||
| 260 | WB2X7694 | Light Lens Bail |
|
- | |||||
| 261 | 318394803 | Jamb Switch (Replaces: WB24K5061) |
|
Immediately | $ 49.14 | ||||
| 262 | WB7K5079 | Vent Trim |
|
- | |||||
| 262 | WB7K5097 | Vert Side Trim-lt-wht |
|
- | |||||
| 262 | WB7K5098 | Vert Side Trim-rt-wht |
|
- | |||||
| 263 | WB7K5096 | Trim-i Brow Gray |
|
- | |||||
| 263 | WB7K5078 | Trim-i-brow Gray |
|
- | |||||
| 265 | WB34K5142 | Cover Wire Cnoduit Convx |
|
- | |||||
| 266 | WB63K5079 | Base Rail |
|
- | |||||
| 268 | WB7K5080 | Lower Frt Frame Trim-wht |
|
- | |||||
| 273 | WB34K5140 | Probe Cover |
|
- | |||||
| 274 | WB7K5094 | Vent Trim Extension |
|
- | |||||
| 275 | WB34K5078 | Vent Box Cover |
|
- | |||||
| 279 | WB38K5028 | Vent Box Asm-black |
|
- | |||||
| 280 | WB20K5034 | Meat Probe |
|
- | |||||
| 281 | WB14K5006 | Ov Dr Hinge-rt |
|
- | |||||
| 281 | WB14K5007 | Ov Dr Hinge-lt |
|
- | |||||
| 291 | WB2X9152 | Cover |
|
- | |||||
| 294 | WS01A01413 | Broil Element Support (Replaces: WB2X9719) |
|
$ 11.71 | |||||
| 299 | WB6K5037 | Cookie Tray-small |
|
- | |||||
| 299 | WB6K5038 | Cookie Tray-large |
|
- | |||||
| 408 | WB2K5300 | Side Trim Adj Bracket-lt |
|
- | |||||
| 408 | WB2K5299 | Side Trim Adj Bracket-rt |
|
- | |||||
| 431 | WB48K5010 | Rack Ov (convx Offset) |
|
- | |||||
| 446 | WB34K5089 | Wire Cover-center |
|
- | |||||
| 533 | WB48X5105 | Rack Roast |
|
- | |||||
| 562 | WB20K5039 | Circuit Breaker-25 Amp |
|
- | |||||
| 594 | WB8K5012 | Jack Receptacle |
|
- | |||||
| 595 | WB2K5126 | Conduit Clamp |
|
- | |||||
| 596 | WB8K5013 | Housing Asm Receptacle |
|
- | |||||
| 600 | WB18K5365 | Conduit Wire Asm |
|
- | |||||
| 752 | WB0X6542 | Screw |
|
- | |||||
| 760 | WB1K5028 | Screw |
|
- | |||||
| 761 | WB1K5062 | Screw-brt. Ni. |
|
- | |||||
| 761 | WB1K5029 | Screw-black |
|
- | |||||
| 770 | WB1K5067 | Screw |
|
- | |||||
| 796 | WB1K5116 | Screw |
|
- | |||||
| 801 | WB1M1 | Screw |
|
- | |||||
| 809 | WG02A00781 | Screw (Replaces: WB1X1137) |
|
$ 15.88 | |||||
| 810 | WB1X1253 | Screw |
|
- | |||||
| 812 | WB1X1133 | Screw |
|
- | |||||
| 813 | WS01A00445 | Screw (Replaces: WB1X1261) |
|
$ 13.90 | |||||
| 854 | WB1X1328 | Screw-black |
|
- | |||||
| 875 | WG04A00781 | Scr 8-18 Ab Hxw 3/8 S (Replaces: WH2X930) |
|
Immediately | $ 3.97 | ||||
| 887 | WB1K5172 | Trim Screw-white |
|
- | |||||
| 926 | WB1X1260 | Ground Washer |
|
- | |||||
| 935 | WB1X1201 | Washer |
|
- | |||||
| 942 | WB1X5573 | Washer |
|
- | |||||
| 988 | WB1M11 | Nut |
|
- | |||||
| 998 | WG02A00927 | Nut (Replaces: WB1X5572) |
|
$ 67.26 |
