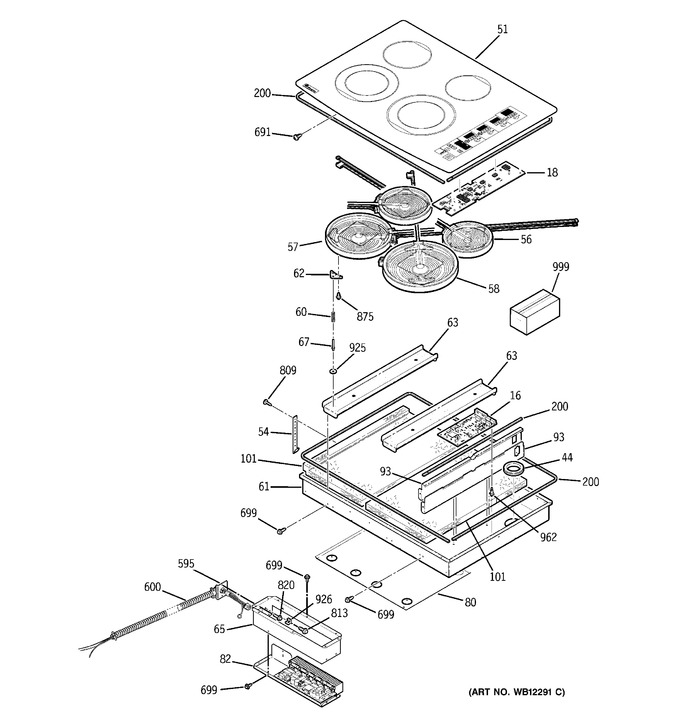

1 - Cooktop
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 16 | WG02F00064 | Board Asm Main Logic (Replaces: WB27T10365) |
|
$ 379.96 | |||||
| 18 | WB29T10017 | Board Asm 30" Display |
|
- | |||||
| 44 | WB02T10092 | Burner Box Grommet |
|
- | |||||
| 51 | WB62T10212 | Glass Maintop Asm |
|
- | |||||
| 54 | WG02A00689 | Hold Down Bracket (Replaces: WB2K5328) |
|
$ 5.72 | |||||
| 56 | WB30T10081 | Element Haliant Lt Rr |
|
- | |||||
| 56 | WB30T10066 | Radiant Element Rt Rr |
|
- | |||||
| 57 | WG02F04086 | Element Radiant Lt Frt (Replaces: WB30T10080) |
|
$ 404.63 | |||||
| 58 | WB30T10062 | Radiant Element Rt Frt |
|
- | |||||
| 60 | WB09T10005 | Spring Radiant (comp) |
|
- | |||||
| 61 | WB64T10020 | Burner Box Bottom |
|
- | |||||
| 62 | WB2K5318 | Radiant Heater Bracket |
|
- | |||||
| 63 | WB02T10084 | Supt Element Bracket |
|
- | |||||
| 65 | WB34T10030 | Drop Box Top |
|
- | |||||
| 67 | WB2X9502 | Radiant Heater Stud |
|
- | |||||
| 80 | WB34T10029 | Burner Box Btm Shield |
|
- | |||||
| 82 | WB23T10014 | Power Board Asm |
|
- | |||||
| 93 | WB34T10027 | Thermal Barrier Inner |
|
- | |||||
| 93 | WB34T10028 | Thermal Barrier Outer |
|
- | |||||
| 101 | WB35T10058 | Insulation |
|
- | |||||
| 101 | WB35T10059 | Insulation |
|
- | |||||
| 200 | WB6K5042 | Foam Tape |
|
- | |||||
| 200 | WG02A00805 | Tape (Replaces: WB06T10007) |
|
$ 165.51 | |||||
| 200 | WB06T10008 | Insulation Foam Tape 30" |
|
- | |||||
| 595 | WB2X9867 | Conduit Harness Plate |
|
- | |||||
| 600 | WB18T10160 | Wire Conduit Asm |
|
- | |||||
| 691 | WB1K5162 | Screw-black |
|
- | |||||
| 699 | WB1K5150 | Screw St10-16 X 7/16" |
|
- | |||||
| 809 | WG02A00781 | Screw (Replaces: WB1X1137) |
|
$ 14.29 | |||||
| 813 | WS01A00445 | Screw (Replaces: WB1X1261) |
|
$ 12.51 | |||||
| 820 | WB1X1424 | Screw |
|
- | |||||
| 875 | WG04A00781 | Screw 8-18 Ab Hxw 3/8 (Replaces: WH2X930) |
|
Immediately | $ 3.57 | ||||
| 925 | WB1K5117 | Washer .250idx.812od |
|
- | |||||
| 926 | WB1X1260 | Ground Washer |
|
- | |||||
| 962 | WB02T10093 | Standoff Pcb |
|
- | |||||
| 999 | 49-80109 | Manual Use & Care |
|
- | |||||
| 999 | WB18T10166 | Logic Display Board |
|
- | |||||
| 999 | WB64X93 | Glass Cleaner |
|
- | |||||
| 999 | 31-10034 | Pm Sheet Mini Manual |
|
- | |||||
| 999 | 31-10511 | Installation Instruction |
|
- | |||||
| 999 | 31-13984 | Manual Mini & Wd Asm |
|
- | |||||
| WG02F04086 | Element Radiant Lf Monogram |
|
$ 404.63 | ||||||
| WG02F00064 | Board Asm Main Logic |
|
$ 379.96 | ||||||
| WG02F04015 | Power Board |
|
$ 847.24 |
