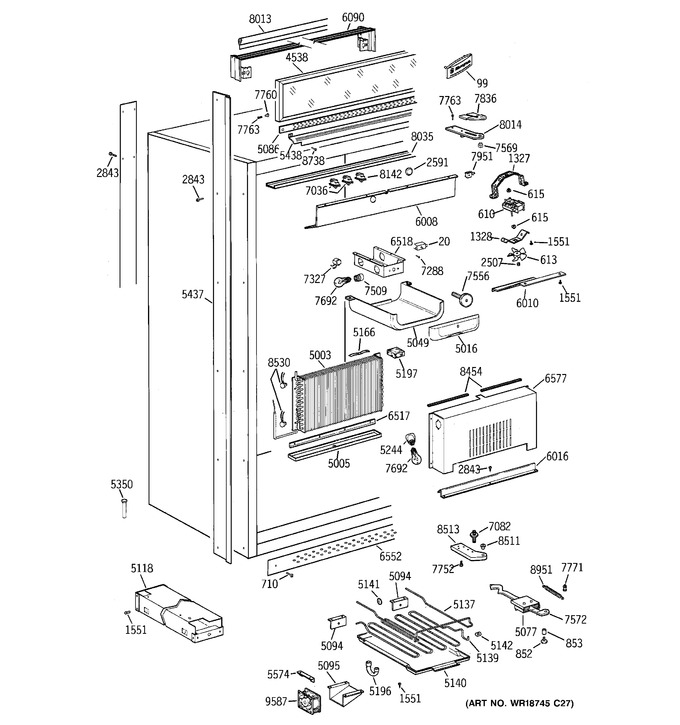

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 20 | WR09X10039 | Temperature Control Ff |
|
- | |||||
| 99 | WB02X10830 | Mg Logo Large Pinned |
|
- | |||||
| 610 | WR60X10067 | Motor Ac/dc Evap Fan |
|
- | |||||
| 613 | WR60X10055 | Blade Evap Fan Asm |
|
- | |||||
| 615 | WR2X7391 | Grommet Evap Fan |
|
- | |||||
| 710 | WG03A00431 | Screw, Toekick (Replaces: WR01X10370) |
|
$ 4.20 | |||||
| 852 | WR01X10184 | Bolt Hinge Ff Door Btm. |
|
- | |||||
| 853 | WR01X10183 | Bushing Ff Door Btm. |
|
- | |||||
| 1327 | WR2X8806 | Bracket Evap. Fan Large |
|
- | |||||
| 1328 | WR02X11747 | Bracket Evap. Fan Small |
|
- | |||||
| 1551 | WR1X5645 | #10 X 1/2 Ph Sms |
|
- | |||||
| 2507 | WR2X3198 | Comp. Ring, Evap. Fan |
|
- | |||||
| 2591 | WR02X10154 | Plug Button #413 I/m |
|
- | |||||
| 2843 | WR1X1903 | Trim Screw S/s |
|
- | |||||
| 4538 | WR74X10157 | Grl Pnl 36r Soffet=84" |
|
- | |||||
| 5003 | WG03F00254 | Evap Coil (Replaces: WR85X10017) |
|
$ 774.64 | |||||
| 5005 | WR17X10648 | Evap Trough |
|
- | |||||
| 5016 | WR17X10650 | Control Panel |
|
- | |||||
| 5049 | WR17X10651 | Light Shield Upper |
|
- | |||||
| 5077 | WR2X9467 | Closure Ff Door Rh |
|
- | |||||
| 5086 | WR02X10142 | Vent Guard 36bm |
|
- | |||||
| 5094 | WR02X10524 | Pan Stop |
|
- | |||||
| 5095 | WR17X10680 | Shroud Fan Aux. Cond. |
|
- | |||||
| 5118 | WR13X10314 | Base Asm (lh) |
|
- | |||||
| 5137 | WR17X10676 | Support Drain Pan |
|
- | |||||
| 5139 | WR84X10024 | Condenser Auxilliary |
|
- | |||||
| 5140 | WR17X10674 | Drain Pan Aux. Cond. |
|
- | |||||
| 5141 | WR01X10180 | Fastener Pan Support |
|
- | |||||
| 5142 | WR02X10525 | Support Clamps |
|
- | |||||
| 5166 | WR01X10045 | Wire Retainer Evap Heate |
|
- | |||||
| 5196 | WR17X10355 | Drain Tube Trap |
|
- | |||||
| 5197 | WR02X10145 | Baffle Evap Lh |
|
- | |||||
| 5244 | WR02X11024 | Socket Lamp Ff |
|
- | |||||
| 5350 | WR17X10655 | Drain Tube |
|
- | |||||
| 5437 | WR08X10016 | Case Trim Lh Bm Ss |
|
- | |||||
| 5438 | WR02X10168 | Wire Guard Bm Ss Rh |
|
- | |||||
| 5574 | WR02X10443 | Btm Motor Brkt |
|
- | |||||
| 6008 | WR17X10658 | Rear Duct 36 Sd Ff |
|
- | |||||
| 6010 | WR17X10689 | Evaporator Fan Mtr. Mtg. |
|
- | |||||
| 6016 | WR17X10653 | Evap Trough Catch |
|
- | |||||
| 6090 | WR74X10176 | Vent Top Asm |
|
- | |||||
| 6517 | WR17X10646 | Drain Baffle |
|
- | |||||
| 6518 | WR74X10046 | Light Bracket |
|
- | |||||
| 6552 | WR74X10049 | Toe Kick 36 Sd Rh |
|
- | |||||
| 6577 | WG03F00269 | Evaporator Cover (Replaces: WR74X10048) |
|
$ 167.88 | |||||
| 7036 | WG03F09086 | Switch Light Ff (Replaces: WR23X10143) |
|
Immediately | $ 11.12 | ||||
| 7082 | WR01X10187 | Adjustable Hinge Pin |
|
- | |||||
| 7288 | WR1X1831 | Screw Grille Mtg. |
|
- | |||||
| 7327 | WG03F00615 | Thermostat (Replaces: WR50X10003) |
|
$ 126.40 | |||||
| 7509 | WR02X11626 | Light Socket #3407b |
|
- | |||||
| 7556 | WR02X10495 | Ff Control Knob Asm |
|
- | |||||
| 7569 | WR2X8587 | Bushing Top Hinge |
|
- | |||||
| 7572 | WR2X8925 | Act Arm Ff |
|
- | |||||
| 7692 | 60A | Appliance Bulb 60w |
|
- | |||||
| 7752 | WR1X1845 | Screw 12-24tt Oht .900 |
|
- | |||||
| 7760 | WR1X1900 | 8-32*5/16 Truss Hd Barre |
|
- | |||||
| 7763 | WR1X1901 | 8-32*1/4 Phil Truss M/s |
|
- | |||||
| 7771 | WR1X1839 | Bushing Hinge Spring Asm |
|
- | |||||
| 7836 | WR13X10087 | Hinge Cover Rh |
|
- | |||||
| 7951 | WR02X10151 | Twist Support |
|
- | |||||
| 8013 | WR2X8972 | Soffit Gasket Frnt Extr. |
|
- | |||||
| 8014 | WR13X10088 | Top Case Hinge Rh |
|
- | |||||
| 8035 | WR17X10661 | Grille Base 36 Sd Ss |
|
- | |||||
| 8142 | WR23X475 | Rocker Switch 200-watt |
|
- | |||||
| 8454 | WR38X10190 | Edge Trim 1.1257" |
|
- | |||||
| 8511 | WR02X10483 | Bushing, Ff Hinge |
|
- | |||||
| 8513 | WR13X10099 | Hinge Btm. Case Rh/lh |
|
- | |||||
| 8530 | WR50X10032 | Thermodisc |
|
- | |||||
| 8738 | WR01X10053 | #8-18 Type Ab X 3/8 Blk |
|
- | |||||
| 8951 | WR02X10526 | Sring Door Closure Ff 48 |
|
- | |||||
| 9587 | WR60X10113 | Drain Pan Fan |
|
- |
