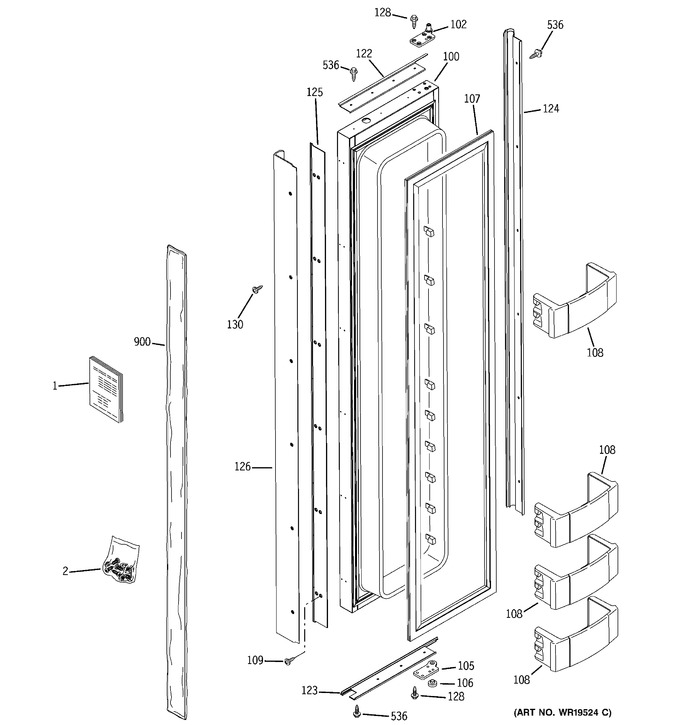

1 - Freezer Door


2 - Sealed System & Mother Board


3 - Fresh Food Door


4 - Freezer Section


5 - Freezer Shelves


6 - Ice Maker & Dispenser


7 - Fresh Food Section


8 - Fresh Food Shelves


9 - Quick Chill


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31-51560		Mini Manual		Appelez-nous	-
1	49-60138		Custom Options Guide		Appelez-nous	-
1	49-60315		Use & Care Manual		Appelez-nous	-
2	WR01X10304		Hardware Pack		Appelez-nous	-
100	WR78X10592		Fz Foamed Door Asm 48 Nd		Appelez-nous	-
102	WR13X10238		Top Sxs Fz Door Hinge As		Appelez-nous	-
105	WR13X10250		Fz Hinge Door Btm		Appelez-nous	-
106	WR01X10297		Fz Bottom Hinge Bushing		Appelez-nous	-
107	WR24X10144		36ff/48fz Door Gasket		Appelez-nous	-
108	WR71X10408		Reg Bin Asm		Appelez-nous	-
109	WR01X10303		Handle Trim Screw		Appelez-nous	-
122	WR38X10332		Door Trim Fz Top		Appelez-nous	-
123	WR38X10333		Door Trim Fz Btm		Appelez-nous	-
124	WR38X10270		Door Trim Fz Side		Appelez-nous	-
125	WR38X10271		Handle Trim		Appelez-nous	-
126	WR01L06145		Handle   (Replaces: WR12X10526)				$ 179.10
128	WR1X1845		Screw		Appelez-nous	-
130	WG03A00448		Trim Screw   (Replaces: WR1X2130)				$ 4.20
536	WR01X10188		Scr Trim (self Drilling)		Appelez-nous	-
900	WR02X11839		Trim Screws Cover Kit		Appelez-nous	-
