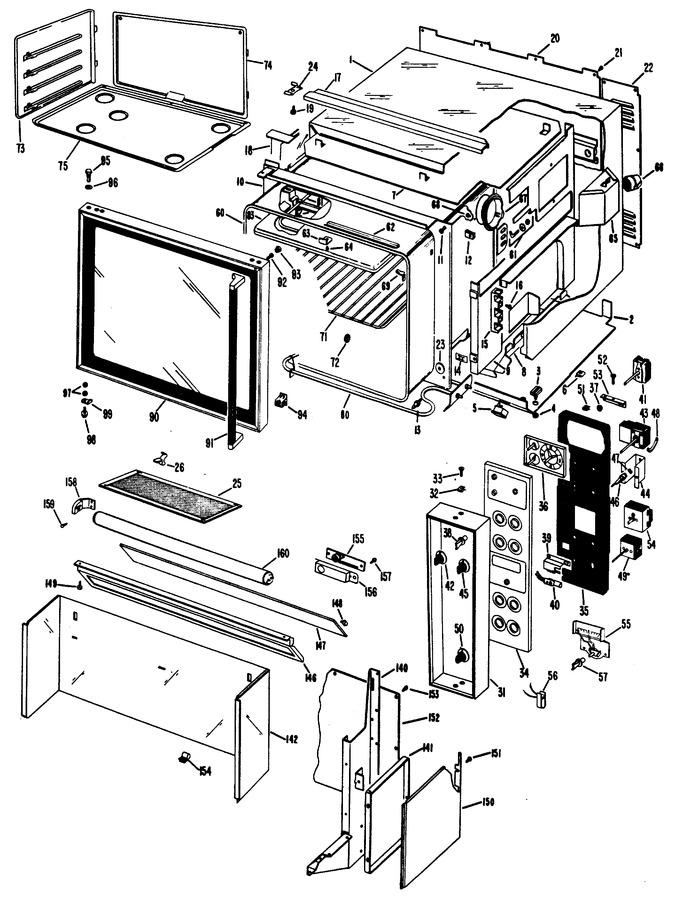

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WB56X874 | Case Side-rh-avocado |
|
- | |||||
| 1 | WZ04X0231 | Screw Mt. Case To Post |
|
- | |||||
| 1 | WB56X875 | Case Side-rh-harvest |
|
- | |||||
| 1 | WB56X841 | Case Side-lh-harvest |
|
- | |||||
| 1 | WB56X873 | Case Side-rh-dark Copp |
|
- | |||||
| 1 | WB56X612 | Case Side-lh-white |
|
- | |||||
| 1 | WB56X617 | Case Side-lh-dark Copp |
|
- | |||||
| 1 | WB56X704 | Case Side-lh-avocado |
|
- | |||||
| 1 | WB56X872 | Case Side-rh-white |
|
- | |||||
| 2 | WB55X149 | Case Bottom |
|
- | |||||
| 2 | WZ04X0245 | Screw Mt. Bottom |
|
- | |||||
| 3 | WB24X136 | Blower Switch |
|
- | |||||
| 3 | 15106 | Oven Light Switch (Replaces: WB24X103) |
|
$ 10.77 | |||||
| 3 | WB24X99 | "f" Lamp Switch |
|
- | |||||
| 4 | WB1X246 | Nut Mt. Switches |
|
- | |||||
| 5 | WB8X154 | Receptacle-normal |
|
- | |||||
| 5 | WB8X156 | Receptacle-timed |
|
- | |||||
| 6 | WB2X1659 | Clip |
|
- | |||||
| 7 | WB55X213 | Top Insulation Guard |
|
- | |||||
| 8 | WB55X198 | Lower Insulation Guard |
|
- | |||||
| 9 | WB55X262 | Insulation Guard Center |
|
- | |||||
| 9 | WZ04X0231 | Screw-mt. Guard |
|
- | |||||
| 10 | WB56X866 | Frame |
|
- | |||||
| 11 | WZ04X0249 | Screw Mt. Frame |
|
- | |||||
| 12 | WB1X365 | Clip Mt. Frame |
|
- | |||||
| 13 | WB2X1521 | Strike Door |
|
- | |||||
| 14 | WB1X447 | Clip-mt. Strike |
|
- | |||||
| 15 | WB17X125 | Terminal Block |
|
- | |||||
| 16 | WZ04X0175 | Screw Mt. Block |
|
- | |||||
| 17 | WB7X736 | Deflector |
|
- | |||||
| 18 | WB49X179 | Air Duct |
|
- | |||||
| 19 | WZ05X0114 | Screw Mt. Deflector |
|
- | |||||
| 20 | WB49X136 | Back Cover |
|
- | |||||
| 21 | WZ04X0231 | Screw Mt. Cover |
|
- | |||||
| 22 | WB49X154 | Cover Instrument |
|
- | |||||
| 23 | WB1X449 | Washer |
|
- | |||||
| 24 | WZ04X0209 | Clip Screw |
|
- | |||||
| 24 | WB2X2108 | Clip |
|
- | |||||
| 25 | WB2X1666 | Filter |
|
- | |||||
| 26 | WB2X1665 | Filter Clip |
|
- | |||||
| 31 | WB7X738 | Trim |
|
- | |||||
| 32 | WB1X358 | Clip |
|
- | |||||
| 33 | WZ04X0237 | Screw |
|
- | |||||
| 34 | WB36X309 | Crystal |
|
- | |||||
| 35 | WB2X2473 | Instrument Bracket |
|
- | |||||
| 36 | WB19X77 | Timer |
|
- | |||||
| 37 | WZ07X0086 | Nut Mt. Timer |
|
- | |||||
| 38 | WB3X297 | Knob Timer |
|
- | |||||
| 39 | WB2X2472 | Lamp Bracket |
|
- | |||||
| 39 | WZ04X0231 | Screw Mt. Bracket |
|
- | |||||
| 40 | WB2X1609 | Lamp 236v |
|
- | |||||
| 40 | WB2X1608 | Lamp 118v |
|
$ 31.65 | |||||
| 41 | WB22X65 | Switch Lower Oven |
|
- | |||||
| 41 | WZ02X0495 | Screw Mt. Switch |
|
- | |||||
| 41 | WB22X66 | Switch Up. Oven |
|
- | |||||
| 42 | WB3X301 | Switch Knob |
|
- | |||||
| 43 | WB21X177 | Thermostat Up-oven |
|
- | |||||
| 43 | WZ02X0495 | Screw Mt. Therm To Bkt |
|
- | |||||
| 44 | WB2X2471 | Thermostat Bracket |
|
- | |||||
| 44 | WZ04X0231 | Screw Mt. Bracket |
|
- | |||||
| 45 | WB3X302 | Knob-therm & Respond. |
|
- | |||||
| 46 | WB2X2470 | Shaft Extension |
|
- | |||||
| 47 | WB2X2479 | Extension Clip |
|
- | |||||
| 48 | WB2X1485 | Sleeve Thermo Tube |
|
- | |||||
| 49 | WB21X181 | Infinite Switch |
|
- | |||||
| 49 | WZ02X0495 | Screw Mt. Switch |
|
- | |||||
| 50 | WB3X301 | Knob Switch |
|
- | |||||
| 51 | WB1X358 | Clip |
|
- | |||||
| 52 | WZ04X0237 | Screw |
|
- | |||||
| 53 | WB2X2474 | Bracket Angle |
|
- | |||||
| 53 | WZ04X0231 | Screw Mt. Angle |
|
- | |||||
| 54 | WZ02X0453 | Screw Mt. Respond. |
|
- | |||||
| 54 | WB21X182 | Respond. Auto Unit |
|
- | |||||
| 54 | WB21X176 | Respond. Lower Oven |
|
- | |||||
| 55 | WB20X42 | Meat Meter |
|
- | |||||
| 55 | WZ04X0279 | Screw Mt. Meter |
|
- | |||||
| 56 | WB2X1093 | Buzzer |
|
- | |||||
| 56 | WZ04X0231 | Screw Mt. Buzzer |
|
- | |||||
| 57 | WB3X297 | Meter Knob |
|
- | |||||
| 60 | WB53X166 | Oven Liner |
|
- | |||||
| 60 | WB2X1511 | Insulation |
|
- | |||||
| 61 | WB9X46 | Oven Hook Pkg. |
|
- | |||||
| 62 | WB2X1522 | Gasket-silicone |
|
- | |||||
| 63 | WB2X2482 | Trim Clip |
|
- | |||||
| 64 | WZ05X0184 | Screw Mt. Clip |
|
- | |||||
| 65 | WB2X1520 | Shield-mt. Lamp |
|
- | |||||
| 65 | WZ04X0231 | Screw Mt. Shield |
|
- | |||||
| 66 | WB8X157 | 40 W. Appliance Bulb |
|
- | |||||
| 67 | WB36X126 | Glass Oven Light |
|
- | |||||
| 68 | WB1X119 | Washer For Screw |
|
- | |||||
| 68 | WB1X270 | Screw Mt. Glass |
|
- | |||||
| 69 | WB2X596 | Cap Tube Clip |
|
- | |||||
| 71 | WB48X90 | Oven Rack |
|
- | |||||
| 72 | WB2X1126 | Plug Button |
|
- | |||||
| 73 | WB56X867 | Panel Rh |
|
- | |||||
| 73 | WB56X868 | Panel Lh |
|
- | |||||
| 74 | WB56X870 | Panel Rear |
|
- | |||||
| 75 | WB56X869 | Panel Bottom |
|
- | |||||
| 80 | WZ04X0231 | Screw Mt. Unit |
|
- | |||||
| 80 | WB44X140 | Bake Unit-1400w-208v |
|
- | |||||
| 80 | WB44X141 | Bake Unit-1400w-236v |
|
- | |||||
| 81 | WB44X139 | Broil Unit-3000w-236v |
|
$ 129.34 | |||||
| 81 | WB44X138 | Broil Unit 3000w-208 |
|
- | |||||
| 81 | WZ04X0231 | Screw Mt. Broil Unit |
|
- | |||||
| 82 | WZ04X0231 | Screw Mt. Broil Unit |
|
- | |||||
| 82 | WB2X1509 | Broil Unit Support |
|
- | |||||
| 83 | WB49X139 | Reflector Broil Unit |
|
- | |||||
| 90 | WB56X871 | Oven Door Asm. |
|
- | |||||
| 91 | WB15X104 | Door Handle |
|
- | |||||
| 92 | WZ02X0525 | Screw Mt. Handle |
|
- | |||||
| 93 | WB2X1895 | Plug Button-top |
|
- | |||||
| 94 | WB2X1516 | Catch |
|
- | |||||
| 95 | WB2X1523 | Pin Hinge-top |
|
- | |||||
| 96 | WB1X406 | Pin Lockwasher-top |
|
- | |||||
| 97 | WB1X401 | Washers-bottom |
|
- | |||||
| 98 | WB1X400 | Pin Hinge-bottom |
|
- | |||||
| 99 | WB2X1658 | Friction Plate |
|
- | |||||
| 140 | WB2X1497 | Post Rh |
|
- | |||||
| 140 | WB2X1498 | Post Lh |
|
- | |||||
| 140 | WZ04X0231 | Screw Mt. Post To Body |
|
- | |||||
| 141 | WZ04X0231 | Screw Mt. Support |
|
- | |||||
| 141 | WB2X1527 | Support Upper Oven |
|
- | |||||
| 142 | WZ04X0231 | Screw Mt. Backuplasher |
|
- | |||||
| 142 | WB7X741 | Backsplasher-reflector |
|
- | |||||
| 146 | WB7X511 | Lamp Housing |
|
- | |||||
| 147 | WB36X310 | Crystal |
|
- | |||||
| 148 | WB2X1667 | Crystal Clip |
|
- | |||||
| 149 | WZ04X0209 | Screw Mt. Housing |
|
- | |||||
| 150 | WB7X438 | Cover-dark Copper |
|
- | |||||
| 150 | WB7X433 | Cover-white |
|
- | |||||
| 150 | WB7X726 | Cover-harvest |
|
- | |||||
| 150 | WB7X678 | Cover-avocado |
|
- | |||||
| 151 | WZ04X0231 | Screw Mt. Cover |
|
- | |||||
| 152 | WB2X1804 | Back Cover |
|
- | |||||
| 153 | WZ06X0085 | Screw Mt. Cover |
|
- | |||||
| 154 | WB2X1742 | Harness Clamp |
|
- | |||||
| 155 | WB2X1806 | Control Board |
|
- | |||||
| 156 | WB2X1940 | Bracket Board |
|
- | |||||
| 157 | WZ04X0294 | Screw Mt. Board |
|
- | |||||
| 158 | WB8X129 | Lampholder Lh |
|
- | |||||
| 158 | WB8X130 | Lampholder Rh |
|
- | |||||
| 159 | WZ02X0435 | Screw Mt. Holder |
|
- | |||||
| 160 | WZ02X0435 | Lamp-f20 T12/c Cw 24" 20w |
|
- |
