SELECT A DIAGRAM

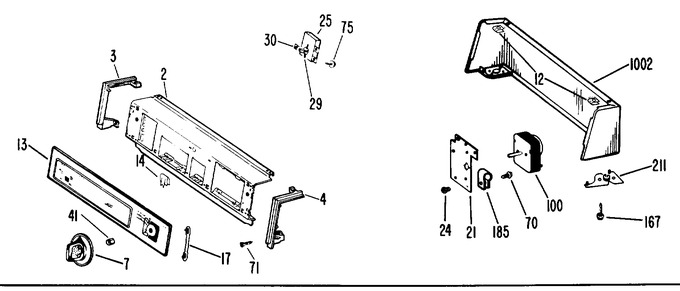

1 - Backsplash Asm.


2 - Component Group


3 - Cabinet & Top


4 - Cabinet Front


5 - Drum & Heater Asm.


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	WE19X719		Escutcheon Asm		Appelez-nous	-
3	WH42X2005		Trim-end Lh		Appelez-nous	-
4	WH42X2006		Trim-end Rh		Appelez-nous	-
7	WE1X978		Knob & Clip Asm		Appelez-nous	-
12	WB1X358		Nut-sheet Metal		Appelez-nous	-
13	WE19X846		Switch Trim Asm		Appelez-nous	-
14	WE1X762		Clip-ground		Appelez-nous	-
17	WE1X577		Clip-trim		Appelez-nous	-
21	WE13X76		Plate-control		Appelez-nous	-
24	WZ02X0510		Scr 8-32 M Hx 3/16 S		Appelez-nous	-
41	WE1X980		Clip-knob		Appelez-nous	-
70	WH2X937		Scr 10-15 A Hxw 7/16 S		Appelez-nous	-
71	WH2X947		Scr 8-18 Ab Ov 3/4 S		Appelez-nous	-
75	WG04A00781		Scr 8-18 Ab Hxw 3/8 S   (Replaces: WH2X930)			Immediately	$ 3.97
100	WE4X629		Timer Asm		Appelez-nous	-
167	WE2X186		Scr 1/4-14 Ab Hxw 3/4 S		Appelez-nous	-
211	WE1X553		Gasket-insulating		Appelez-nous	-
1002	WH46X248		Backsplash Wrapper Sl		Appelez-nous	-
1002	WH46X247		Backsplash Wrapper Ds		Appelez-nous	-
1002	WH46X211		Backsplash Wrapper Wh		Appelez-nous	-
1002	WH46X215		Backsplash Wrapper Ha		Appelez-nous	-
1002	WH46X212		Backsplash Wrapper Ad		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
