SELECT A DIAGRAM

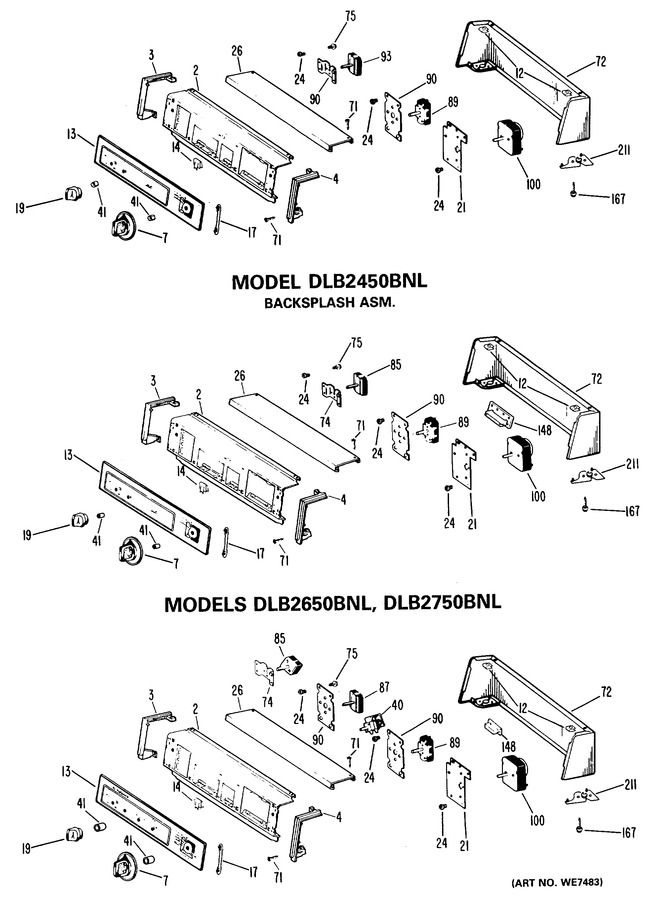

1 - Backsplash Asm.


2 - Cabinet & Top Asm.


3 - Cabinet Front


4 - Drum & Heater Asm.


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	WE19X719		Escutcheon Asm		Appelez-nous	-
3	WH42X2199		Trim End L.h.		Appelez-nous	-
4	WH42X2200		Trim End R.h.		Appelez-nous	-
7	WE1X978		Knob Clip Asm		Appelez-nous	-
12	WB1X358		Speednut		Appelez-nous	-
13	WE19X905		Switch Trim Asm		Appelez-nous	-
14	WE1X762		Clip Grounding		Appelez-nous	-
17	WH1X2008		Clip Trim		Appelez-nous	-
19	WH1X2274		Knob Clip Asm		Appelez-nous	-
21	WE13X76		Plate Control		Appelez-nous	-
24	WZ02X0510		Screw		Appelez-nous	-
26	WH42X2004		Trim Top		Appelez-nous	-
41	WE1X980		Clip Knob		Appelez-nous	-
71	WH2X947		Screw		Appelez-nous	-
72	WH46X211		Weld Asm-housing Wh		Appelez-nous	-
72	WH46X215		Weld Asm-housing Ha		Appelez-nous	-
72	WH46X212		Weld Asm-housing Ad		Appelez-nous	-
75	WG04A00781		Screw 8-18 Ab Hxw 3/8   (Replaces: WH2X930)			Immediately	$ 3.97
89	WE4X679		Switch Rotary Start		Appelez-nous	-
90	WH16X434		Bracket Switch		Appelez-nous	-
93	WE4X627		Switch Asm Rotary		Appelez-nous	-
100	WE4X754		Timer Asm		Appelez-nous	-
167	WE2X186		Screw		Appelez-nous	-
185	WZ20X0007		Hanger Cable		Appelez-nous	-
211	WE1X553		Gasket Insulating		Appelez-nous	-
9999	31-2482		Mini Manual		Appelez-nous	-
9999	39-9288		Pm Manual Use Care		Appelez-nous	-
9999	31-1829		Pm Instruction Instal		Appelez-nous	-
9999	39-9278		Pm Manual Use Care		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
