SELECT A DIAGRAM

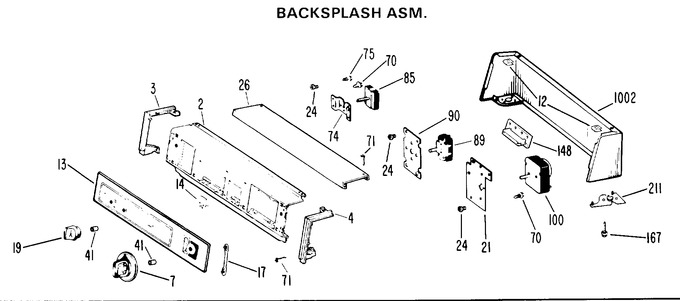

1 - Backsplash Asm.


2 - Cabinet & Top


3 - Cabinet Front


4 - Drum & Heater Asm.


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	WE19X719		Escutcheon Asm		Appelez-nous	-
3	WH42X2005		Trim End Lh		Appelez-nous	-
4	WH42X2006		Trim End Rh		Appelez-nous	-
7	WE1X978		Knob Clip Asm		Appelez-nous	-
12	WB1X358		Speednut		Appelez-nous	-
13	WE19X875		Switch Trim Asm		Appelez-nous	-
14	WE1X762		Clip Grounding		Appelez-nous	-
17	WE1X577		Clip Trim		Appelez-nous	-
19	WH1X2274		Knob Clip Asm		Appelez-nous	-
21	WE13X76		Plate Control		Appelez-nous	-
24	WZ02X0510		Screw		Appelez-nous	-
26	WH42X2004		Trim Top		Appelez-nous	-
41	WE1X980		Clip Knob		Appelez-nous	-
70	WH2X937		Screw-type A		Appelez-nous	-
71	WH2X947		Screw		Appelez-nous	-
74	WE13X137		Bracket Switch		Appelez-nous	-
75	WG04A00781		Screw 8-18 Ab Hxw 3/8   (Replaces: WH2X930)			Immediately	$ 3.97
85	WE4X603		Switch Asm-rotary 4 Pos		Appelez-nous	-
89	WE4X679		Switch Rotary Start		Appelez-nous	-
90	WH16X434		Bracket Switch		Appelez-nous	-
100	WE4X628		Timer Asm		Appelez-nous	-
148	WE4X499		Resistor Board		Appelez-nous	-
167	WE2X186		Screw		Appelez-nous	-
211	WE1X553		Gasket Insulating		Appelez-nous	-
225	WE2X276		Scr 10-16 B Hx 1/2 S		Appelez-nous	-
1001	WE20X664		Weld Asm Cover Wh		Appelez-nous	-
1001	WE20X665		Weld Asm Cover Ad		Appelez-nous	-
1002	WH46X212		Weld Asm-housing Ad		Appelez-nous	-
1002	WH46X211		Weld Asm-housing Wh		Appelez-nous	-
9999	49-9040		Pm Instruction Instl		Appelez-nous	-
9999	39-9252		Pm Manual Use & Care		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
