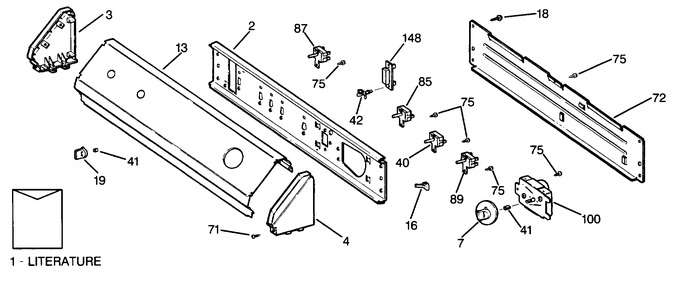

SELECT A DIAGRAM

1 - Component Group


2 - Cabinet & Top


3 - Cabinet Front


4 - Drum & Heater Asm.


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31-2549		Mini-manual		Appelez-nous	-
1	39-9305		Manual Use & Care		Appelez-nous	-
1	31-1702		Pm Instruction Instal		Appelez-nous	-
2	WH46X312		Plate Mounting		Appelez-nous	-
3	WH42X2231		End Cap L.h.		Appelez-nous	-
4	WH42X2232		End Cap R.h.		Appelez-nous	-
7	WE1X1178		Knob & Clip Timer		Appelez-nous	-
13	WE19X931		Switch Trim		Appelez-nous	-
16	WH2X1151		Clip Ground		Appelez-nous	-
18	WH2X1152		Screw 8-16x5/8 Hx		Appelez-nous	-
19	WE1X1181		Knob & Clip Switch		Appelez-nous	-
41	WE1X980		U Clip		Appelez-nous	-
42	WE2X373		Support Circ Board		Appelez-nous	-
71	WH2X1153		Screw 8-18x1 Ph		Appelez-nous	-
72	WH46X311		Panel Access		Appelez-nous	-
75	WG04A00781		Scr 8-18 Ab Hxw 3/8 S   (Replaces: WH2X930)			Immediately	$ 3.97
87	WE4X783		Switch Rotary Temp		Appelez-nous	-
89	WE4X782		Switch Rotary Start		Appelez-nous	-
100	WE4X797		Timer		Appelez-nous	-
148	WE4X799		Resistor & Board Asm		Appelez-nous	-
150	WZ20X0007		Hanger Cable		Appelez-nous	-
178	WH2X939		Scr 6-19 Pt Hx 1/4 S		Appelez-nous	-
604	WE2X227		Scr 10-24 T 13/16		Appelez-nous	-
610	WE9X28		Gasket Door		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
