SELECT A DIAGRAM

1 - Backsplash Assembly

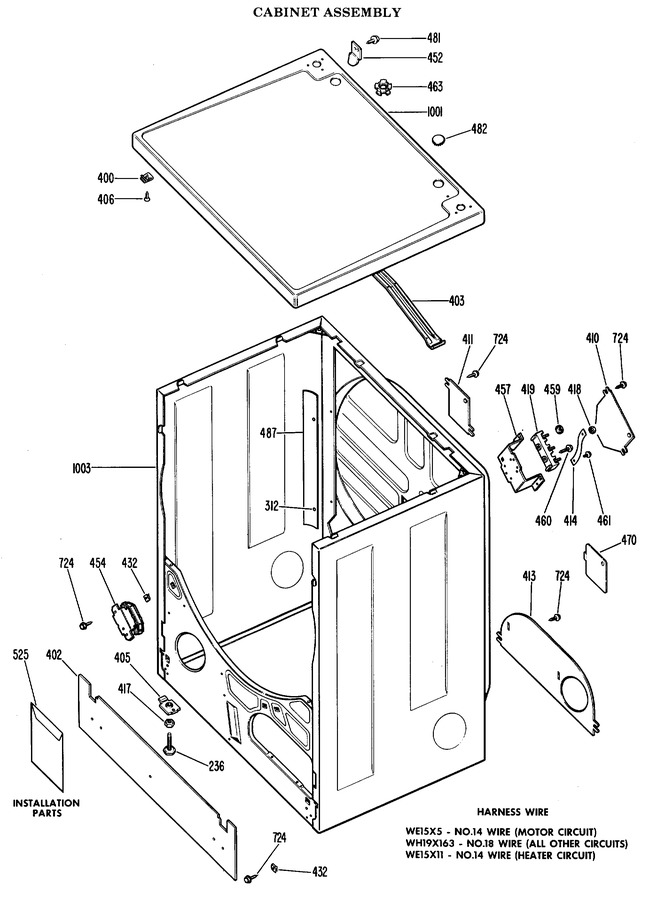

2 - Cabinet Assembly


3 - Cabinet Front Assembly


4 - Blower & Drive Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
236	WG04L00345		Screw 5/16-24 X 2 Level   (Replaces: WE2X229)			Immediately	$ 4.04
312	WE2X191		Rivet		Appelez-nous	-
400	WE2X134		Clip		Appelez-nous	-
402	WE20X347		Toeboard		Appelez-nous	-
403	WE14X37		Brace-cabinet Top		Appelez-nous	-
405	WE1X468		Plate-leveiang Screw		Appelez-nous	-
406	WZ04X0236		Screw 8-15 X 1/2 Oval		Appelez-nous	-
410	WE1X1048		Cover Terminal		Appelez-nous	-
411	WE1X426		Knockout-cabinet Wrapper		Appelez-nous	-
413	WE14X167		Panel Access		Appelez-nous	-
414	WE1X339		Strap-ground		Appelez-nous	-
417	WZ07X0038		Nut		Appelez-nous	-
418	WZ07X0031		Nut		Appelez-nous	-
419	WE4X168		Block-terminal				$ 29.10
432	WL02X0071		Nut-clip		Appelez-nous	-
452	WH16X431		Bracket-hinge		Appelez-nous	-
454	WE25X60		Slide Asm				$ 15.15
457	WE13X157		Bracket-terminal Block		Appelez-nous	-
459	WE2X92		Washer-cup		Appelez-nous	-
460	WZ04X0264		Screw 10-16 X 7/8 Hex		Appelez-nous	-
461	WZ05X0158		Screw 8-32 X 3/8 Hex		Appelez-nous	-
463	WE1X956		Sleeve-split		Appelez-nous	-
470	WE1X1056		Cover. Pipe Hole		Appelez-nous	-
481	WH2X967		Screw 12-14 X 1/2 Hex		Appelez-nous	-
482	WE1X1043		Button Plug		Appelez-nous	-
487	WE1X1050		Shield-wire		Appelez-nous	-
525	WE25X183		Pack Asm Installation		Appelez-nous	-
724	WZ04X0288		Screw 10-16 X 1/2 Hex		Appelez-nous	-
1001	WE20X651		Weld Asm-cover Ha		Appelez-nous	-
1001	WE20X649		Weld Asm-cover Wh		Appelez-nous	-
1001	WE20X650		Weld Asm-cover Ad		Appelez-nous	-
1003	WE20X652		Cabinet Asm Wh		Appelez-nous	-
1003	WE20X653		Cabinet Asm Ad		Appelez-nous	-
1003	WE20X654		Cabinet Asm Ha		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
