View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

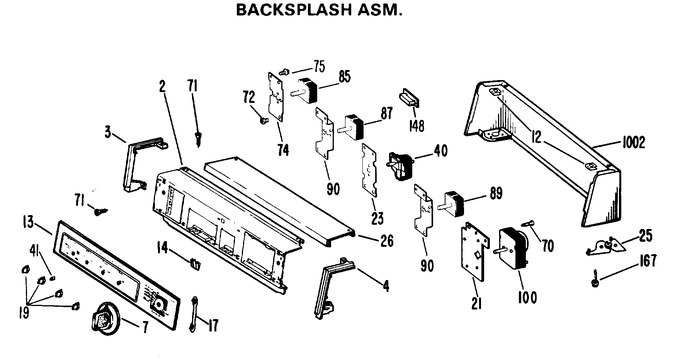

1 - Backsplash Asm.
2 - Cabinet Asm.
3 - Cabinet Front Assembly
4 - Blower & Drive Asm.
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | WE19X719 | Escutcheon Asm |
|
- | |||||
| 3 | WH42X2005 | Trim End Lh |
|
- | |||||
| 4 | WH42X2006 | Trim End Rh |
|
- | |||||
| 7 | WE1X982 | Knob Asm |
|
- | |||||
| 12 | WB1X358 | Speednut |
|
- | |||||
| 13 | WE19X840 | Switch Trim Asm |
|
- | |||||
| 14 | WE1X762 | Clip Grounding |
|
- | |||||
| 17 | WE1X577 | Clip Trim |
|
- | |||||
| 19 | WH1X2274 | Knob Clip Asm |
|
- | |||||
| 21 | WE13X76 | Plate Control |
|
- | |||||
| 23 | WH16X401 | Bracket Switch |
|
- | |||||
| 24 | WZ02X0510 | Screw |
|
- | |||||
| 26 | WH42X2004 | Trim Top |
|
- | |||||
| 40 | WE1X916 | Buzzer (signal) |
|
- | |||||
| 41 | WE1X980 | Clip Knob |
|
- | |||||
| 70 | WH2X937 | Screw-type A |
|
- | |||||
| 71 | WH2X947 | Screw |
|
- | |||||
| 74 | WE13X137 | Bracket Switch |
|
- | |||||
| 85 | WE4X603 | Switch Asm-rotary 4 Pos |
|
- | |||||
| 87 | WE4X605 | Switch Asm Rotary |
|
- | |||||
| 89 | WE4X679 | Switch Rotary Start |
|
- | |||||
| 90 | WH16X434 | Bracket Switch |
|
- | |||||
| 100 | WE4X619 | Timer Asm |
|
- | |||||
| 148 | WE4X499 | Resistor Board |
|
- | |||||
| 167 | WE2X186 | Screw |
|
- | |||||
| 199 | WE2X280 | Scr 14-10 A Hx 1 S |
|
- | |||||
| 211 | WE1X553 | Gasket Insulating |
|
- | |||||
| 238 | WG04L00345 | Scr 5/16-24 Lvl 2 S (Replaces: WE2X229) |
|
Immediately | $ 4.04 | ||||
| 484 | WE1X1045 | Clip-cable |
|
- | |||||
| 520 | 5300063521 | Insulator Outer (Replaces: WE1X158) |
|
$ 1.17 | |||||
| 521 | 5300063521 | Insulator Inner (Replaces: WE1X159) |
|
$ 1.17 | |||||
| 522 | WE2X136 | Stud Heater |
|
- | |||||
| 530 | WE2X278 | Nut |
|
- | |||||
| 539 | WE2X195 | Washer |
|
- | |||||
| 715 | WD2X5063 | Scr 8-18 Ph Hx 13/32 S |
|
- | |||||
| 1002 | WH46X247 | Backsplash Wrapper Ds |
|
- | |||||
| 1002 | WH46X215 | Weld Asm-housing Ha |
|
- | |||||
| 1002 | WH46X212 | Weld Asm-housing Ad |
|
- | |||||
| 1002 | WH46X211 | Weld Asm-housing Wh |
|
- | |||||
| 1002 | WH46X248 | Backsplash Wrapper Sl |
|
- | |||||
| 9999 | 49-9063 | Pm Instruction Instl |
|
- | |||||
| 9999 | 39-9226 | Pm Instruction Sheet |
|
- | |||||
| 9999 | 39-9236 | Pm Use & Care Book |
|
- |
