SELECT A DIAGRAM

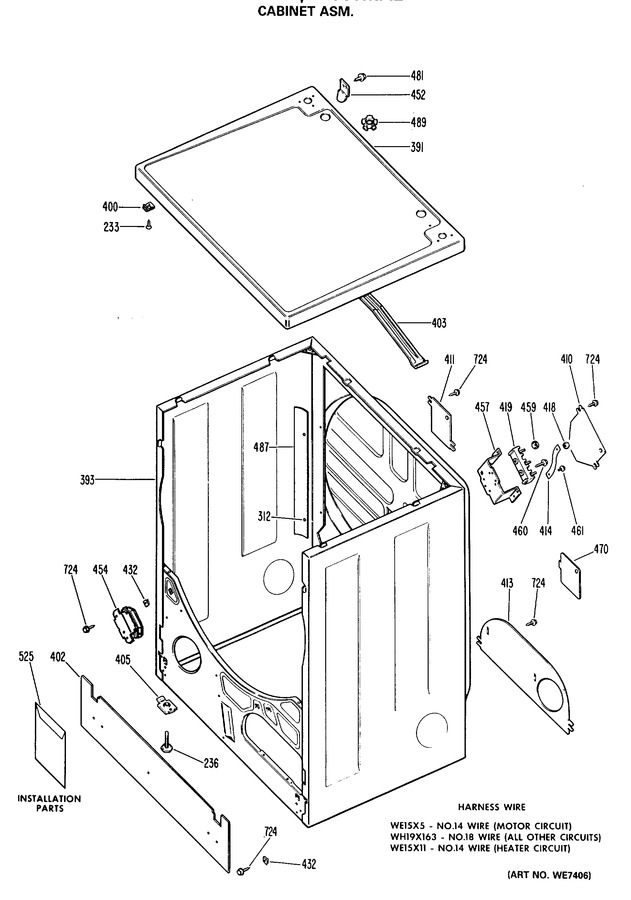

1 - Backsplash Asm.


2 - Cabinet Asm.


3 - Cabinet Front Assembly


4 - Blower & Drive Asm.


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
233	WZ04X0236		Scr 8-15 A Ov 1/2 S		Appelez-nous	-
236	WG04L00345		Screw Levelling 5/16-24   (Replaces: WE2X355)			Immediately	$ 4.04
312	WE2X191		Rivet		Appelez-nous	-
391	WE20X666		Weld Asm Cover Ha		Appelez-nous	-
391	WE20X664		Weld Asm Cover Wh		Appelez-nous	-
391	WE20X665		Weld Asm Cover Ad		Appelez-nous	-
393	WE20X675		Cabinet Asm Wh		Appelez-nous	-
393	WE20X673		Cabinet Asm Ad		Appelez-nous	-
393	WE20X674		Cabinet Asm Ha		Appelez-nous	-
400	WE2X134		Clip		Appelez-nous	-
402	WE20X347		Toeboard		Appelez-nous	-
403	WE14X37		Brace Cabinet Top		Appelez-nous	-
405	WE1X468		Plate Leveling Screw		Appelez-nous	-
410	WE1X1048		Cover Terminal		Appelez-nous	-
411	WE1X426		Knockout Cabinet Wrapper		Appelez-nous	-
413	WE14X167		Panel Access		Appelez-nous	-
414	WE1X339		Strap Ground		Appelez-nous	-
418	WZ07X0031		Nut		Appelez-nous	-
419	WE4X168		Block Terminal				$ 29.10
432	WL02X0071		Nut Clip		Appelez-nous	-
452	WE1X1094		Bracket Hinge		Appelez-nous	-
454	WE25X60		Slide Asm				$ 15.15
457	WE13X162		Bracket Terminal Block		Appelez-nous	-
459	WE2X92		Washer Cup		Appelez-nous	-
460	WZ04X0264		Scr 10-16 Ab Hxw 1 S		Appelez-nous	-
461	WZ05X0158		Scr 8-32 D Hxw 3/8 S		Appelez-nous	-
470	WE1X1056		Cover Pipe Hole		Appelez-nous	-
481	WH2X967		Scr 12-14 Ab Hxw 1/2 S		Appelez-nous	-
487	WE1X1050		Shield Wire		Appelez-nous	-
489	WH1X2572		Sleeve Split		Appelez-nous	-
525	WE25X202		Pack Asm. Installation		Appelez-nous	-
724	WZ04X0288		Scr 10-16 Ab Hxw 1/2 S		Appelez-nous	-
