SELECT A DIAGRAM

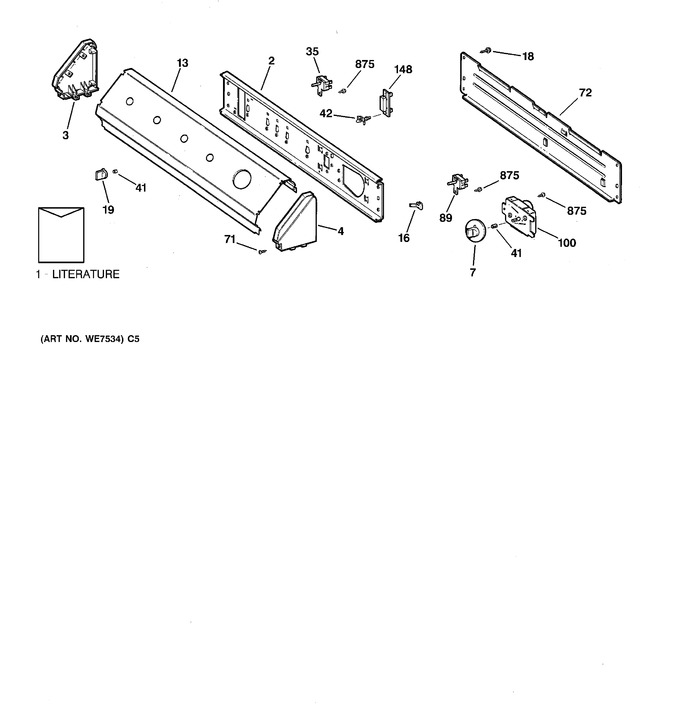

1 - Backsplash Assembly


2 - Front Panel & Door


3 - Cabinet


4 - Drum, Blower & Drive Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31-1730		Install Instructions		Appelez-nous	-
1	31-2709-25		Pm Sheet Mini Manual		Appelez-nous	-
1	39-9323		Pm Manual Use & Care		Appelez-nous	-
2	WH46X330		Plate, Mounting		Appelez-nous	-
3	WH42X2231		End Cap L.h.		Appelez-nous	-
4	WH42X2232		End Cap R.h.		Appelez-nous	-
7	WE1X1178		Knob & Clip Timer		Appelez-nous	-
13	WE19X966		Switch Trim Asm		Appelez-nous	-
16	WH2X1151		Clip Ground		Appelez-nous	-
18	WE2X395		Scr 8-10 Plascrew Ihw5/8		Appelez-nous	-
19	WE1X1181		Knob & Clip Switch		Appelez-nous	-
35	WE4X833		Switch, Rotary Selector		Appelez-nous	-
41	WE1X980		U Clip		Appelez-nous	-
42	WE2X373		Support Circ Board		Appelez-nous	-
71	WH2X1153		Screw 8-18x1 Ph		Appelez-nous	-
72	WH46X311		Panel Access		Appelez-nous	-
89	WE4X782		Switch Rotary Start		Appelez-nous	-
100	WE4X795		Timer				$ 157.50
148	WE4X799		Resistor & Board Asm		Appelez-nous	-
875	WG04A00781		Scr 8-18 Ab Hxw 3/8 S   (Replaces: WH2X930)			Immediately	$ 3.97
