View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

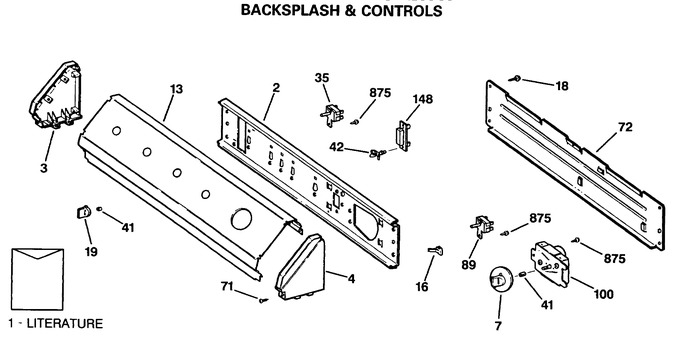

1 - Backsplash & Controls
2 - Cabinet Front
3 - Cabinet
4 - Drum & Heater Asm.
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 31-1730 | Install Instructions |
|
- | |||||
| 1 | 31-2709-25 | Pm Sheet Mini Manual |
|
- | |||||
| 1 | 39-9328 | Pm Manual Use & Care |
|
- | |||||
| 2 | WH46X334 | Plate Mounting |
|
- | |||||
| 3 | WH42X2303 | End Cap L.h. Wh |
|
- | |||||
| 4 | WH42X2304 | End Cap R.h. Wh |
|
- | |||||
| 7 | WG04L04237 | Knob & Clip Timer (Replaces: WE1X1179) |
|
Immediately | $ 20.65 | ||||
| 13 | WE19X980 | Switch Trim Asm |
|
- | |||||
| 16 | WH2X1151 | Clip Ground |
|
- | |||||
| 18 | WE2X395 | Scr 8-10 Plascrew Ihw5/8 |
|
- | |||||
| 19 | WH1X2652 | Knob & Clip Asm |
|
- | |||||
| 35 | WE4X833 | Switch, Rotary Selector |
|
- | |||||
| 41 | WE1X980 | U Clip |
|
- | |||||
| 42 | WE2X373 | Support Circ Board |
|
- | |||||
| 70 | WH2X937 | Screw 10-15x7/16 Hxw |
|
- | |||||
| 71 | WH2X1155 | Screw 8-18 B 0vt Is Wh |
|
- | |||||
| 72 | WH46X311 | Panel Access |
|
- | |||||
| 89 | WE4X782 | Switch Rotary Start |
|
- | |||||
| 100 | WE4X795 | Timer |
|
$ 157.50 | |||||
| 148 | WE4X799 | Resistor & Board Asm |
|
- | |||||
| 178 | WH2X939 | Scr 6-19 Pt Hx 1/4 S |
|
- | |||||
| 221 | WE1X1171 | Air Seal |
|
- | |||||
| 233 | WZ04X0236 | Scr |
|
- | |||||
| 461 | WZ05X0158 | Screw 8-32x3/8 |
|
- | |||||
| 875 | WG04A00781 | Scr 8-18 Ab Hxw 3/8 S (Replaces: WH2X930) |
|
Immediately | $ 3.97 |
