1 - Backsplash Assemblies

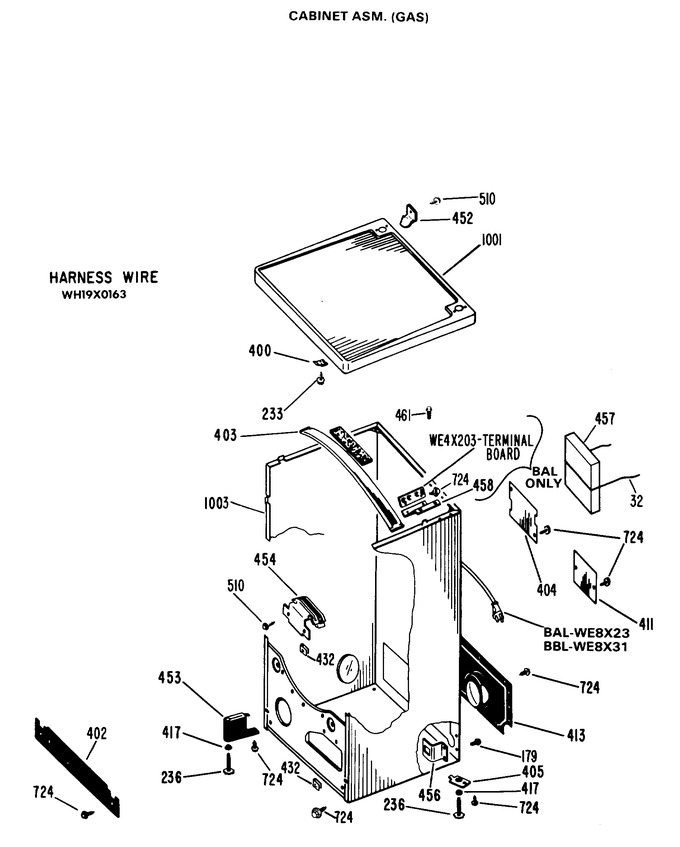

2 - Cabinet Asm. (gas)


3 - Cabinet Front Assembly (gas)


4 - Drum & Duct Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
179	WZ04X0288		Screw 10-16 X 1/2 Hex		Appelez-nous	-
233	WZ04X0236		Screw 8-15 X 1/2 Oval		Appelez-nous	-
236	WG04L00345		Screw 5/16-24x2 3/16 Lvl   (Replaces: WE2X229)			Immediately	$ 4.04
400	WE2X134		Clip		Appelez-nous	-
402	WE20X347		Toeboard		Appelez-nous	-
403	WE14X37		Brace-cabinet Top		Appelez-nous	-
404	WE1X425		Plate		Appelez-nous	-
405	WE1X468		Plate-leveling Screw		Appelez-nous	-
411	WE1X426		Knockout-cabinet Wrapper		Appelez-nous	-
413	WE14X66		Box-recess		Appelez-nous	-
417	WZ07X0038		Nut		Appelez-nous	-
432	WE2X282		Nut Clip		Appelez-nous	-
452	WH16X431		Bracket-hinge		Appelez-nous	-
453	WE13X80		Support-leveling Screw		Appelez-nous	-
454	WE25X60		Slide Asm				$ 15.15
456	WE1X617		Clamp-pipe		Appelez-nous	-
457	WE1X937		Counterweight-dryer		Appelez-nous	-
458	WE1X411		Bracket-terminal Board		Appelez-nous	-
461	WZ05X0158		Screw 8-32 X 3/8 Hex		Appelez-nous	-
510	WE2X263		Screw 10-16 X 1/2 Hex		Appelez-nous	-
724	WZ04X0288		Screw 10-16 X 1/2 Hex		Appelez-nous	-
1001	WE20X530		Weld Asm-cover Wh		Appelez-nous	-
1001	WE20X555		Weld Asm-cover Fa		Appelez-nous	-
1001	WE20X556		Weld Asm-cover Ha		Appelez-nous	-
1001	WE20X557		Weld Asm-cover Cf		Appelez-nous	-
1001	WE20X558		Weld Asm-cover Ad		Appelez-nous	-
1003	WE20X598		Base & Wrapper Asm Wh		Appelez-nous	-
1003	WE20X594		Base & Wrapper Asm Ad		Appelez-nous	-
1003	WE20X595		Base & Wrapper Asm Cf		Appelez-nous	-
1003	WE20X596		Base & Wrapper Asm Fa		Appelez-nous	-
1003	WE20X597		Base & Wrapper Asm Ha		Appelez-nous	-
