View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

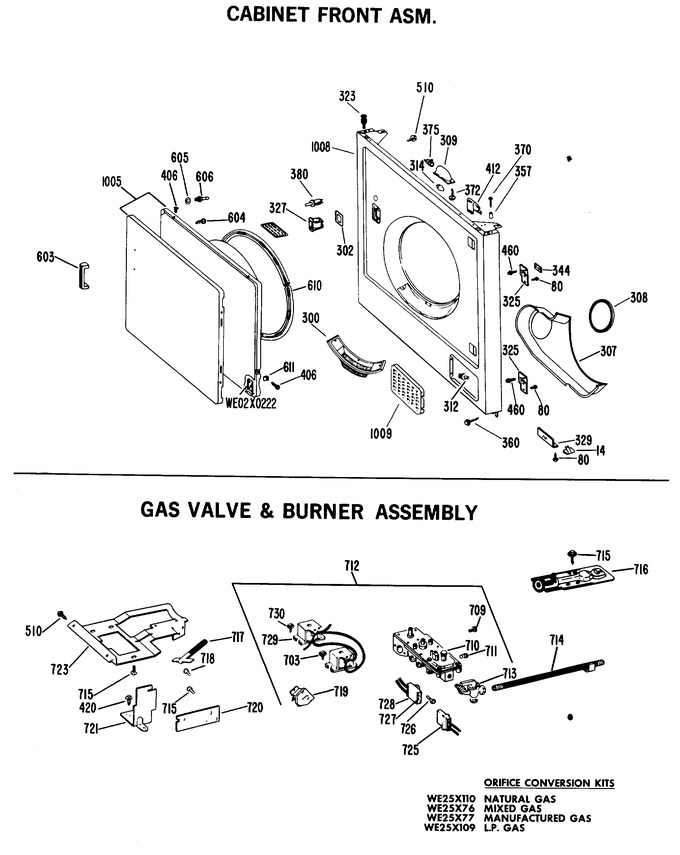

1 - Backspash Asm.
2 - Cabinet Front Asm.
3 - Blower & Drive Asm.
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 14 | WE1X762 | Clip-ground |
|
- | |||||
| 80 | WL02X0139 | Screw 8-18 X 3/8 Hex |
|
- | |||||
| 300 | WE18X36 | Lint Filter Asm |
|
- | |||||
| 302 | WE1X888 | Plate-latch |
|
- | |||||
| 307 | WE14X104 | Duct-trap |
|
- | |||||
| 308 | WE9X42 | Seal |
|
- | |||||
| 309 | WE1X427 | Housing-lamp |
|
- | |||||
| 312 | WE2X191 | Rivet |
|
- | |||||
| 314 | WX12X79 | Lamp K |
|
- | |||||
| 323 | WH1X5122 | Grommet-cabinet A |
|
- | |||||
| 325 | WE1X901 | Hinge |
|
- | |||||
| 327 | 5366021400 | Latch (Replaces: WE1X903) |
|
Immediately | $ 62.21 | ||||
| 329 | WE1X748 | Clamp |
|
- | |||||
| 344 | WH2X5002 | Nut-twin Speed A |
|
- | |||||
| 357 | WH1X2187 | Stop-cover |
|
- | |||||
| 360 | 10-16X3/4 | Screw 10-16 X 5/8 Hex |
|
- | |||||
| 370 | 10-18X114 | Screw 10-12 X 1 1/4 Rd |
|
- | |||||
| 372 | WE2X270 | Screw 8-15 X 1/2 Truss |
|
- | |||||
| 375 | WE4X185 | Socket Asm |
|
- | |||||
| 380 | WG03L00054 | Switch Asm-push Button (Replaces: WE4X197) |
|
Immediately | $ 40.27 | ||||
| 406 | WZ04X0236 | Screw 8-15 X 1/2 Oval |
|
- | |||||
| 412 | WH1X1923 | Clip-cover |
|
- | |||||
| 420 | WH2X893 | Screw 10-16 X 3/8 Hex |
|
- | |||||
| 460 | 10-16X1/2 | Screw 10-16 X 1/2 Hex |
|
- | |||||
| 510 | WE2X263 | Screw 10-16 X 1/2 Hex |
|
- | |||||
| 603 | WE1X257 | Handle-door |
|
- | |||||
| 604 | WE2X227 | Screw 10-24 X 13/16 T Rus |
|
- | |||||
| 605 | WZ10X0016 | Washer-flat |
|
- | |||||
| 606 | WE1X890 | Strike |
|
- | |||||
| 610 | WE9X41 | Gasket-door |
|
- | |||||
| 611 | WE2X224 | Clip |
|
- | |||||
| 703 | 8-32X7/16 | Screw (gas Value Asm) |
|
- | |||||
| 709 | WE1X968 | Orifice |
|
- | |||||
| 710 | WE1X606 | Leak Limiter |
|
- | |||||
| 711 | 1/8NPT | Plug-pipe |
|
- | |||||
| 712 | WE14X141 | Valve Asm |
|
- | |||||
| 713 | WE1X758 | Valve Asm-shutoff |
|
- | |||||
| 714 | WE1X757 | Pipe |
|
- | |||||
| 715 | WD2X5063 | Screw 8-18 X 13/32 Hex |
|
- | |||||
| 716 | WE1X967 | Burner Asm |
|
- | |||||
| 717 | SDEUNIV | Igniter (Replaces: WE4X444) |
|
Immediately | $ 81.97 | ||||
| 718 | WZ04X0220 | Screw 6-20 X 1/2 Hex |
|
- | |||||
| 719 | WE1X941 | Spring Asm |
|
- | |||||
| 720 | WE13X116 | Bracket-igniter |
|
- | |||||
| 721 | WE13X114 | Bracket-spacer |
|
- | |||||
| 723 | WE13X139 | Bracket-valve |
|
- | |||||
| 725 | WH12X237 | Housing-terminal |
|
- | |||||
| 726 | 6-32X7/16 | Screw (gas Value Asm) |
|
- | |||||
| 727 | WH1X1719 | Terminal |
|
- | |||||
| 728 | WH12X242 | Housing-terminal |
|
- | |||||
| 729 | WE4X560 | Coil Asm-split Coil |
|
- | |||||
| 730 | 8-32X5/8 | Screw (gas Value Asm) |
|
- | |||||
| 1005 | WE10X236 | Door Asm Wh |
|
- | |||||
| 1005 | WE10X245 | Door Asm Fa |
|
- | |||||
| 1005 | WE10X246 | Door Asm Ha |
|
- | |||||
| 1005 | WE10X247 | Door Asm Cf |
|
- | |||||
| 1005 | WE10X248 | Door Asm Ad |
|
- | |||||
| 1008 | WE20X544 | Cabinet Front Cf |
|
- | |||||
| 1008 | WE20X521 | Cabinet Front Wh |
|
- | |||||
| 1008 | WE20X542 | Cabinet Front Fa |
|
- | |||||
| 1008 | WE20X543 | Cabinet Front Ha |
|
- | |||||
| 1008 | WE20X545 | Cabinet Front Ad |
|
- | |||||
| 1009 | WE10X242 | Door-access Ha |
|
- | |||||
| 1009 | WE10X193 | Door-access Wh |
|
- | |||||
| 1009 | WE10X241 | Door-access Fa |
|
- | |||||
| 1009 | WE10X243 | Door-access Cf |
|
- | |||||
| 1009 | WE10X244 | Door-access Ad |
|
- |
