SELECT A DIAGRAM

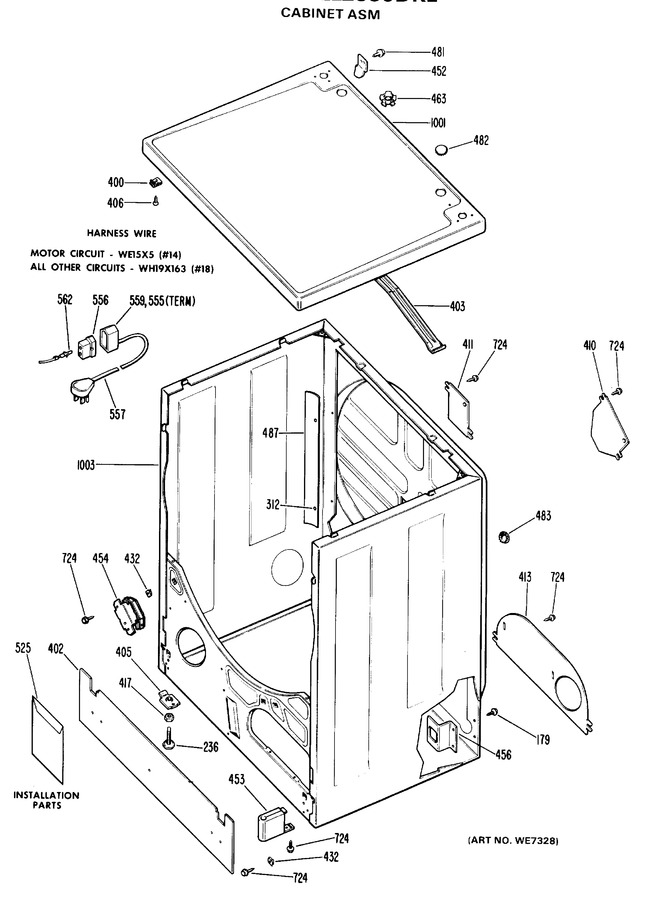

1 - Backsplash Assembly


2 - Cabinet Asm.


3 - Cabinet Front Assembly


4 - Blower & Drive Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
179	WZ04X0288		Scr 10-16 Bt Hxw 1/2 S		Appelez-nous	-
236	WG04L00345		Scr 5/16-24x2 Lvl 3/16 S   (Replaces: WE2X229)			Immediately	$ 4.04
312	WE2X191		Rivet		Appelez-nous	-
400	WE2X134		Clip		Appelez-nous	-
402	WE20X347		Toeboard		Appelez-nous	-
403	WE14X37		Brace Cabinet Top		Appelez-nous	-
405	WE1X468		Plate Leveling Screw		Appelez-nous	-
406	WZ04X0236		Scr 8-15 A Ovr 1/2 S		Appelez-nous	-
410	WE1X1048		Cover Terminal Asm		Appelez-nous	-
411	WE1X426		Knockout Cabinet Wrapper		Appelez-nous	-
413	WE14X167		Panel Access Asm		Appelez-nous	-
417	WZ07X0038		Nut		Appelez-nous	-
432	WL02X0071		Nut Clip		Appelez-nous	-
452	WH16X431		Bracket Hinge		Appelez-nous	-
453	WE13X80		Support Leveling Screw		Appelez-nous	-
454	WE25X60		Slide Asm				$ 15.15
456	WE1X617		Clamp Pipe		Appelez-nous	-
463	WE1X956		Sleeve Spilt		Appelez-nous	-
481	WH2X967		Scr 12-14 Ab Hxw 1/2 S		Appelez-nous	-
483	WE1X1044		Button Plug		Appelez-nous	-
487	WE1X1050		Shield Wire		Appelez-nous	-
525	WE25X185		Pk Pack Asm Installation		Appelez-nous	-
555	WB17X5053		Terminal		Appelez-nous	-
556	WH12X497		Housing Terminal		Appelez-nous	-
557	WE8X31		Cord Power Asm		Appelez-nous	-
559	WH12X538		Housing Terminal		Appelez-nous	-
562	WB17X5054		Terminal		Appelez-nous	-
724	WZ04X0288		Scr 10-16 Ab Hxw 1/2 S		Appelez-nous	-
1001	WE20X666		Weld Asm Cover Ha		Appelez-nous	-
1001	WE20X664		Weld Asm Cover Wh		Appelez-nous	-
1001	WE20X665		Weld Asm Cover Ad		Appelez-nous	-
1003	WE20X675		Cabinet Asm Wh		Appelez-nous	-
1003	WE20X674		Cabinet Asm Ha		Appelez-nous	-
1003	WE20X673		Cabinet Asm Ad		Appelez-nous	-
