SELECT A DIAGRAM

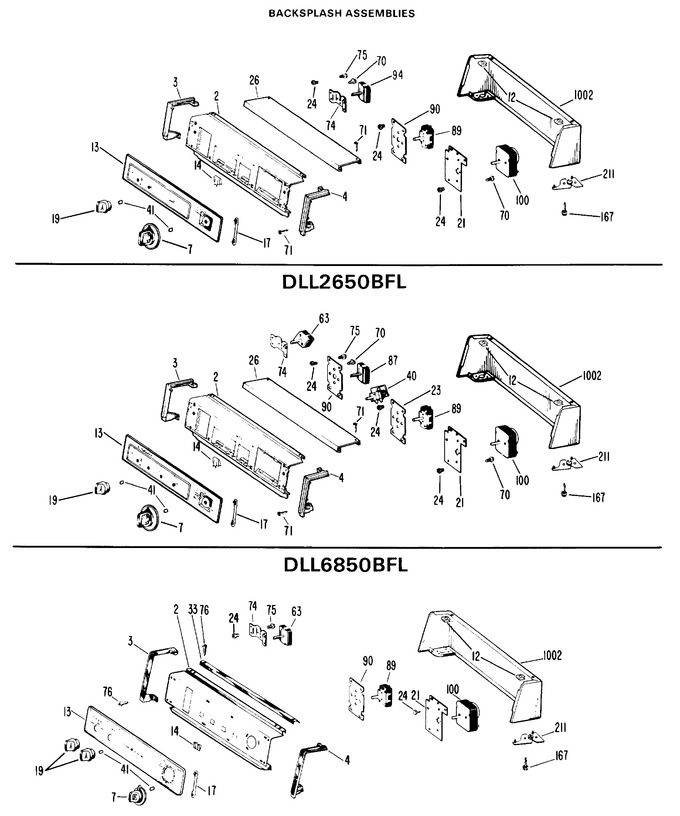

1 - Backsplash Assemblies


2 - Cabinet Asm.


3 - Drum & Duct Asm.


4 - Cabinet Front Asm.


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	WE19X719		Escutcheon Asm		Appelez-nous	-
3	WH42X974		Trim-end L.h.		Appelez-nous	-
4	WH42X975		Trim-end R.h.		Appelez-nous	-
7	WE1X978		Knob Clip Asm		Appelez-nous	-
12	WB1X358		Speednut		Appelez-nous	-
13	WE19X848		Switch Trim Asm		Appelez-nous	-
14	WE1X762		Clip Grounding		Appelez-nous	-
17	WE1X577		Clip Trim		Appelez-nous	-
19	WH1X2274		Knob Clip Asm		Appelez-nous	-
21	WE13X76		Plate Control		Appelez-nous	-
24	WZ02X0510		Screw		Appelez-nous	-
33	WE19X310		Trim Rear		Appelez-nous	-
41	WE1X980		Clip Knob		Appelez-nous	-
63	WE4X606		Switch Asm Rotary		Appelez-nous	-
70	WH2X937		Screw-type A		Appelez-nous	-
71	WH2X947		Screw		Appelez-nous	-
74	WE13X137		Bracket Switch		Appelez-nous	-
75	WG04A00781		Screw 8-18 Ab Hxw 3/8   (Replaces: WH2X930)			Immediately	$ 3.97
76	WZ05X0120		Screw		Appelez-nous	-
89	WE4X679		Switch Rotary Start		Appelez-nous	-
90	WH16X434		Bracket Switch		Appelez-nous	-
100	WE4X630		Timer Asm		Appelez-nous	-
167	WE2X186		Screw		Appelez-nous	-
211	WE1X553		Gasket Insulating		Appelez-nous	-
555	WB17X5053		Terminal		Appelez-nous	-
559	WH12X538		Housing Terminal		Appelez-nous	-
1002	WH46X215		Weld Asm-housing Ha		Appelez-nous	-
1002	WH46X211		Weld Asm-housing Wh		Appelez-nous	-
1002	WH46X212		Weld Asm-housing Ad		Appelez-nous	-
9999	31-1584		Pm Instruction Instl		Appelez-nous	-
9999	39-9249		Pm Use & Care Book		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
