SELECT A DIAGRAM

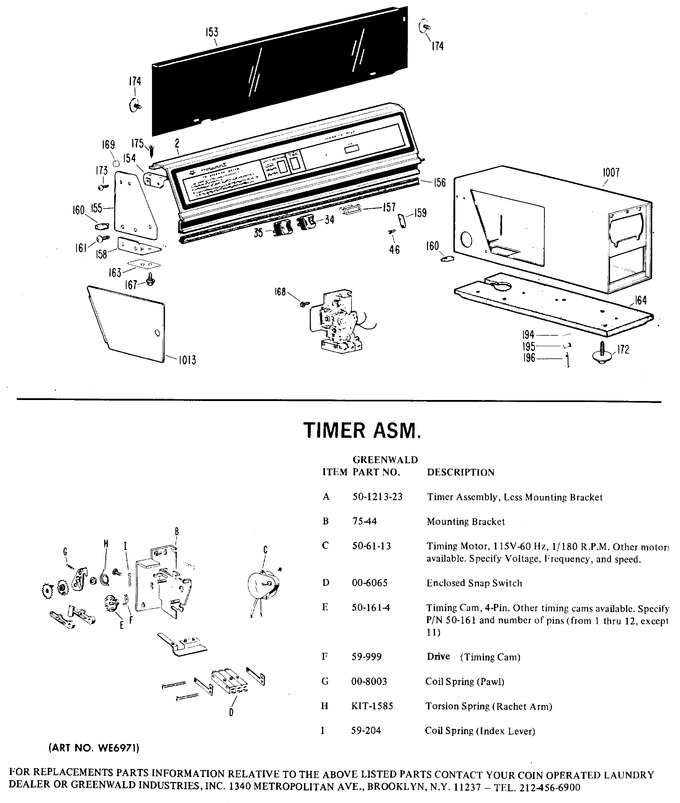

1 - Timer Asm.
2 - Component Group
3 - Cabinet Front Asm. (gas)
4 - Drum & Duct Asm.
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | KIT-1585 | Torsion Spring (ratchet |
|
- | |||||
| 1 | 50-1213-23 | Timer Assembly, Less Mou |
|
- | |||||
| 1 | 00-6163 | Enclosed Snap Switch (Replaces: 00-6065) |
|
$ 25.47 | |||||
| 1 | 59-999 | Drive (timing Cam) |
|
$ 19.42 | |||||
| 1 | 00-8003 | Coil Spring (pawl) |
|
$ 39.10 | |||||
| 1 | 59-204 | Coil Spring (index Lever |
|
- | |||||
| 2 | WE19X764 | Housing Asm-controls |
|
- | |||||
| 34 | WE4X564 | Switch-selector |
|
- | |||||
| 35 | WE4X565 | Switch-selector |
|
- | |||||
| 46 | WZ04X0238 | Scr 8-18 Ab Hw 1/2 S |
|
- | |||||
| 150 | WZ20X0007 | Hanger Cable |
|
- | |||||
| 153 | WE1X911 | Panel Rear |
|
- | |||||
| 154 | WE1X913 | Bracket Mounting |
|
- | |||||
| 155 | WE1X948 | Trim End |
|
- | |||||
| 156 | WE1X949 | Gasket Control Hsg |
|
- | |||||
| 157 | WG04F07410 | Lamp Asm-amber (Replaces: WE1X950) |
|
$ 10.81 | |||||
| 158 | WE1X951 | Gusset |
|
- | |||||
| 159 | WE1X952 | Support Housing |
|
- | |||||
| 160 | WE1X953 | Block Pivot |
|
- | |||||
| 161 | WE2X273 | Scr 10-14 Pt Sh 7/16 S |
|
- | |||||
| 162 | WE2X274 | Scr 8-16 Pt Hxw 3/8 S |
|
- | |||||
| 163 | WE9X48 | Gasket |
|
- | |||||
| 164 | WE9X50 | Gasket Coin Box |
|
- | |||||
| 167 | WE2X186 | Screw |
|
- | |||||
| 168 | WZ02X0468 | Scr 10-32 M Hs 1/8 S |
|
- | |||||
| 169 | WH1X2194 | Tube Plug |
|
- | |||||
| 172 | WH2X735 | Scr 1/4-20 M Sh .900 Cs |
|
- | |||||
| 173 | WH2X932 | Scr 8-32 Tt Sh 1/2 S |
|
- | |||||
| 174 | WH2X934 | Scr 12-14 Ab Sh 1/2 S |
|
- | |||||
| 175 | WH2X933 | Scr 8-16 Plt T Pa 1/2 S |
|
- | |||||
| 194 | WH1X1728 | Clip |
|
- | |||||
| 195 | WH2X885D | Nut (Replaces: WH2X885) |
|
- | |||||
| 196 | WH2X783 | Stud Hold Down |
|
- | |||||
| 404 | WE1X425 | Plate |
|
- | |||||
| 460 | WZ04X0264 | Scr 10-16 Ab Hxw 1 S |
|
- | |||||
| 461 | WZ05X0158 | Screw 8-32x3/8 Grd Scr |
|
- | |||||
| 462 | WE4X203 | Board Asm Terminal |
|
- | |||||
| 548 | WE17X151 | Terminal |
|
- | |||||
| 611 | WH12X416 | Housing Terminal |
|
- | |||||
| 716 | WE1X967 | Burner Asm |
|
- | |||||
| 1001 | WE20X575 | Weld Asm Cover Fa |
|
- | |||||
| 1001 | WE20X576 | Weld Asm Cover Ha |
|
- | |||||
| 1001 | WE20X587 | Weld Asm Cover Ad |
|
- | |||||
| 1001 | WE20X387 | Weld Asm Cover Wh |
|
- | |||||
| 1007 | WH42X1194 | Meter Case-painted Ad |
|
- | |||||
| 1007 | WH42X1195 | Meter Case-painted Cf |
|
- | |||||
| 1007 | WH42X1192 | Meter Case-painted Fa |
|
- | |||||
| 1007 | WH42X1191 | Meter Case-painted Wh |
|
- | |||||
| 1007 | WH42X1193 | Meter Case-painted Ha |
|
- | |||||
| 1013 | WH42X2090 | Door Mtr Case Access Wh |
|
- | |||||
| 1013 | WH42X2091 | Door Mtr Case Access Ad |
|
- | |||||
| 1013 | WH42X2092 | Door Mtr Case Access Ha |
|
- | |||||
| 1013 | WH42X2093 | Door Mtr Case Access Fa |
|
- | |||||
| 9999 | 49-9035 | Installation Instr |
|
- | |||||
| 9999 | 39-9188 | Use And Care Book |
|
- |
