SELECT A DIAGRAM

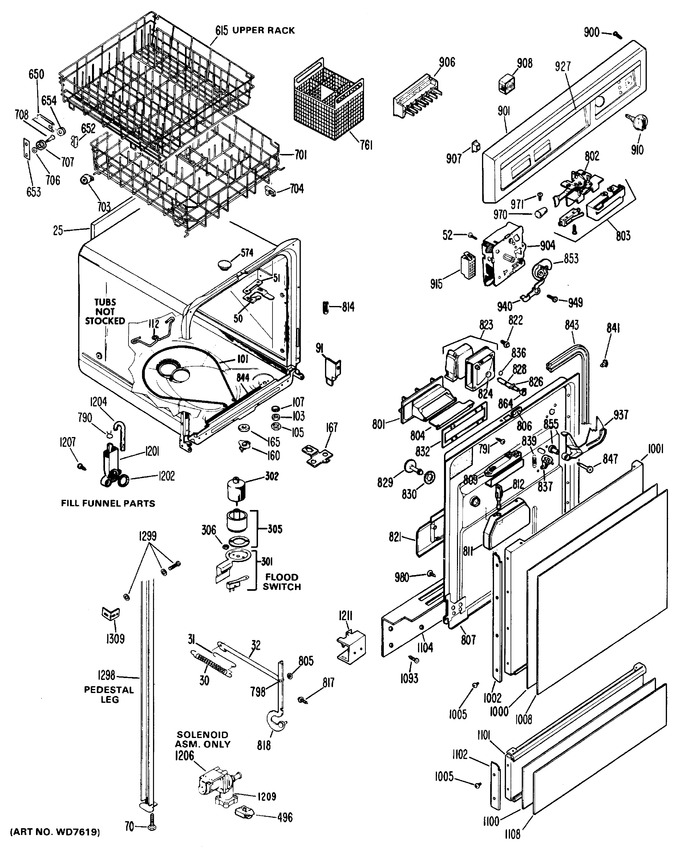

1 - Component Group


2 - Motor Pump Mechanism


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
25	WD1X1328		Insul Sound Back		Appelez-nous	-
30	WD14X5073		Hinge Spring		Appelez-nous	-
31	WD1X5364		Extension Spring 5.2 In		Appelez-nous	-
32	WD1X5429		Stop Door B		Appelez-nous	-
50	WD13X68		Keeper And Fastener		Appelez-nous	-
50	WZ06X0127		Keeper Screw 10-32x3/8		Appelez-nous	-
52	WD2X5177		Timer Mounting Screw		Appelez-nous	-
70	WD1X1223		Screw Levelling 5/16-24		Appelez-nous	-
91	WD1X5392		Trim Tub Corner Lh		Appelez-nous	-
91	WD1X5391		Trim Tub Corner Rh		Appelez-nous	-
101	WD5X63		Heater		Appelez-nous	-
103	WD3X724		Heater Washer		Appelez-nous	-
105	WD2X5172		Heater Nut		Appelez-nous	-
106	WD3X5118		Ground Strap		Appelez-nous	-
107	WD3X723		Heater Washer		Appelez-nous	-
112	WD1X5484		Stabilizer Htg Element		Appelez-nous	-
301	WD21X5135		Flood Switch Brkt Asm		Appelez-nous	-
302	WD12X5016		Float Flood Control		Appelez-nous	-
305	WD12X5019		Float Tube & Gasket		Appelez-nous	-
306	WD3X687		Nut 10x32		Appelez-nous	-
306	WD2X5171		Washer		Appelez-nous	-
400	WZ04X0044		Screw 8-18x3/8 B Pnr S		Appelez-nous	-
418	WG04A00385		Gate Valve Arm Kit   (Replaces: WD35X190)				$ 14.29
457	WD1X1376		Clamp (pump Connector)		Appelez-nous	-
496	WD12X349		Insulator Water Valve		Appelez-nous	-
529	WC1X203		Screw Ground		Appelez-nous	-
574	WD1X5491		Plug Power Shower		Appelez-nous	-
615	WD28X5081		Rack Upper & Wheel Asm		Appelez-nous	-
650	WD30X84		Slide Rack & Cap Asm		Appelez-nous	-
652	WD12X113		Rack Slide End Cap		Appelez-nous	-
653	WD3X5114		Strip Nut A		Appelez-nous	-
654	WD12X5050		Roller & Stud Upr Rack		Appelez-nous	-
701	WD28X5083		Rack Lower Asm Blue		Appelez-nous	-
703	WD12X5026		Roller & Stud Lwr Rack				$ 4.20
704	WD12X5044		Rack Stop		Appelez-nous	-
706	WD3X772		Washer		Appelez-nous	-
707	WD12X5024		Tub Roller		Appelez-nous	-
708	WD3X744		Tub Roller Stud		Appelez-nous	-
711	WD27X5386		Panel Outer Door Wh		Appelez-nous	-
711	WD27X5384		Panel Outer Door Ha		Appelez-nous	-
711	WD27X5385		Panel Outer Door Ad		Appelez-nous	-
740	WD2X5187		Scr 10-24x3/8 D Hexw S		Appelez-nous	-
744	WD15X93		Valve Water Inlet				$ 64.56
745	WD1X816		Junction Box Cover		Appelez-nous	-
745	WD1X5443		Junction Box Plate		Appelez-nous	-
748	WD1X5384		Pedestal Leg		Appelez-nous	-
749	WD3X5082		Scr 1/4-20x5/8 Rnd Wshr		Appelez-nous	-
752	WZ04X0401		Scr 8-18x1/2 Ab Recess		Appelez-nous	-
752	WD1X5433		Bracket Hold Down		Appelez-nous	-
756	WD27X5392		Panel & Insl Service Ha		Appelez-nous	-
756	WD27X5393		Panel & Insl Service Ad		Appelez-nous	-
756	WD27X5394		Panel & Insl Service Wh		Appelez-nous	-
759	WD27X5331		Kickplate		Appelez-nous	-
761	WG04F00380		Silverware Basket   (Replaces: WD28X245)			Immediately	$ 70.96
780	WD24X191		Fill Funnel		Appelez-nous	-
781	WD8X192		Fill Funnel Gasket		Appelez-nous	-
782	WD24X5082		Fill Hose		Appelez-nous	-
783	WD21X536		Solenoid Asm		Appelez-nous	-
784	WD2X5186		Scr Seal 8-10x.625 B T15		Appelez-nous	-
787	WD2X5166		Scr 10-16x1/2 Ab Hxw S		Appelez-nous	-
790	WH1X2036		Hose Clamp		Appelez-nous	-
791	WD1X5499		Scr Seal 8-18x.625 Bt Tr		Appelez-nous	-
795	WD1X5468		Switch Guard		Appelez-nous	-
796	WD1X1146		Interlock Switch Screw		Appelez-nous	-
798	WD3X5111		Rivet A		Appelez-nous	-
801	WD24X5086		Vent Inner Door		Appelez-nous	-
802	WD13X5015		Latch Assembly		Appelez-nous	-
802	WD1X5493		Spacer Latch		Appelez-nous	-
803	WD6X183		Switch Interlock		Appelez-nous	-
804	WD24X5071		Cover Vent B		Appelez-nous	-
805	WD3X5112		Pushnut A		Appelez-nous	-
806	WD1X5477		Door Latch Insert		Appelez-nous	-
807	WD35X5072		Inner Door Panel		Appelez-nous	-
814	WD1X5504		Grommet		Appelez-nous	-
817	WD2X5065		Screw-hinge To Door		Appelez-nous	-
818	WD14X5076		Hinge Asm Left		Appelez-nous	-
818	WD14X5077		Hinge Asm Right		Appelez-nous	-
821	WD12X5039		Vent Baffle		Appelez-nous	-
823	WD16X5039		Detergent Cup		Appelez-nous	-
824	WD8X5101		Detergent Shaft Gasket		Appelez-nous	-
826	WD1X5483		Dowel Spring Pin		Appelez-nous	-
828	WD16X283		Detergent Cup Shaft		Appelez-nous	-
832	WD8X5098		Door Vent Gasket		Appelez-nous	-
836	WD1X781		Shaft "o" Ring		Appelez-nous	-
837	WD12X27		Detergent Cam Lever		Appelez-nous	-
839	WD2X266		Detergent Spring		Appelez-nous	-
841	WD17X5053		Door Gasket Clip		Appelez-nous	-
843	WD17X5049		Door Gasket Clip		Appelez-nous	-
843	WD8X5097		Door Gasket With Clips		Appelez-nous	-
844	WD8X5100		Gasket & Rtnr Asm Tub Fl		Appelez-nous	-
847	WD3X659		Detergent Lever Screw		Appelez-nous	-
853	WD16X5042		Detergent Trip Cam		Appelez-nous	-
855	WD12X117		Spacer Pivot Det		Appelez-nous	-
864	WD1X1030		Compression Ring		Appelez-nous	-
900	WD2X5157		Screw-escutcheon To Door		Appelez-nous	-
901	WD34X5251		Escutcheon & Insert Asm		Appelez-nous	-
904	WD21X5202		Timer		Appelez-nous	-
906	WD21X5194		Switch Pushbutton-2		Appelez-nous	-
907	WD1X5492		Pushbutton		Appelez-nous	-
910	WD9X5161		Knob Timer		Appelez-nous	-
910	WD9X5181		Ring Timer Knob		Appelez-nous	-
915	WD1X1258		Plug Timer Black		Appelez-nous	-
927	WD34X5247		Trim Escut Handle		Appelez-nous	-
935	WH12X603		Terminal Timer		Appelez-nous	-
936	WD1X5490		Bracket Switch		Appelez-nous	-
937	WD12X5041		Lever		Appelez-nous	-
939	NOT STOCKD		Scr 6-20 X 5/16 Hexw S		Appelez-nous	-
940	WD2X5184		Bushing Vent Lever		Appelez-nous	-
940	WD12X5042		Vent Opening Lever		Appelez-nous	-
948	WD2X5169		Scr 8-18 X 1/2bt Phl Pan		Appelez-nous	-
949	WD2X319		Screw-vent Lever Mtg		Appelez-nous	-
980	WD2X5100		Scr 8-15x7/16 A Trr Ss		Appelez-nous	-
1101	WD27X5436		Panel & Insl Service Ds		Appelez-nous	-
1211	WZ04X0345		Scr 8-18x3/8 Ab Hxw		Appelez-nous	-
1299	WZ07X0037		Palnut		Appelez-nous	-
1299	WD8X5064		Gasket Mounting A		Appelez-nous	-
32767	WD0X77		Spring Plate		Appelez-nous	-
32767	WD0X27		Tube Center Spray		Appelez-nous	-
32767	WD34X5215		Escutcheon Insert		Appelez-nous	-
32767	WD0X26		Top Power Tower		Appelez-nous	-
32767	39-5148-1		Pm Book Use & Care		Appelez-nous	-
32767	39-5149		User Book		Appelez-nous	-
32767	WD34X5216		Timer Insert		Appelez-nous	-
32767	WD27X5435		Panel Outer Door Ds		Appelez-nous	-
32767	WD00X715		Fastener Keeper		Appelez-nous	-
32767	WD0X589		Spring Plate		Appelez-nous	-
32767	WD0X445		Armature		Appelez-nous	-
32767	WD0X444		Link Solenoid		Appelez-nous	-
32767	31-3478		Pm Instruction Instl		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
