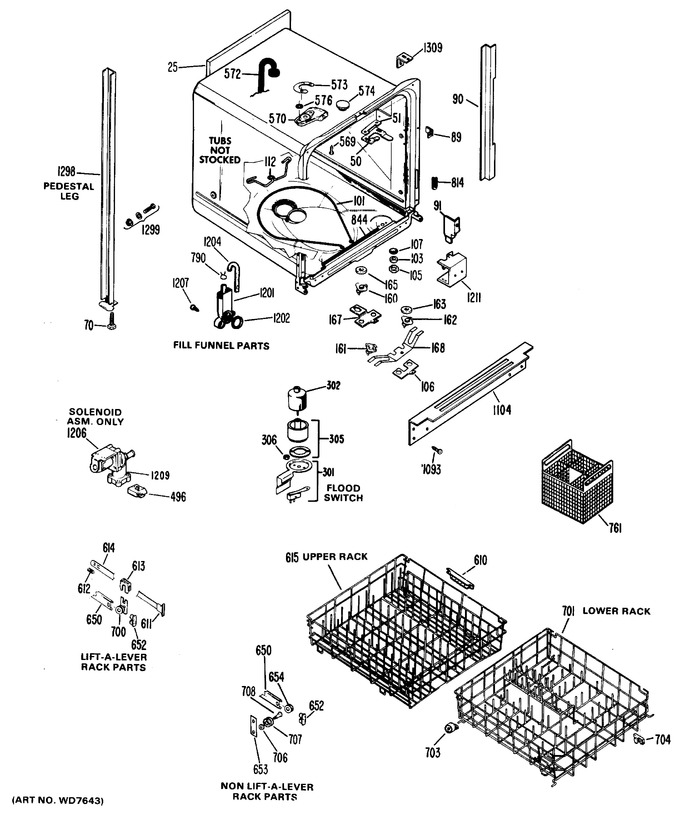

SELECT A DIAGRAM
1 - Component Group
2 - Component Group
3 - Motor-pump Mechanism
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 25 | WD1X1328 | Insul Sound Back |
|
- | |||||
| 50 | WZ06X0127 | Keeper Screw 10-32x3/8 |
|
- | |||||
| 91 | WD1X5391 | Trim Tub Corner Rh |
|
- | |||||
| 91 | WD1X5392 | Trim Tub Corner Lh |
|
- | |||||
| 101 | WD5X63 | Heater |
|
- | |||||
| 103 | WD3X724 | Heater Washer |
|
- | |||||
| 105 | WD2X5172 | Heater Nut |
|
- | |||||
| 106 | WD3X5118 | Ground Strap |
|
- | |||||
| 107 | WD3X723 | Heater Washer |
|
- | |||||
| 112 | WD1X5484 | Stabilizer Htg Element |
|
- | |||||
| 301 | WD21X5135 | Flood Switch Brkt Asm |
|
- | |||||
| 302 | WD12X5016 | Float Flood Control |
|
- | |||||
| 305 | WD12X5019 | Float Tube & Gasket |
|
- | |||||
| 306 | WD2X5171 | Washer |
|
- | |||||
| 306 | WD3X687 | Nut 10x32 |
|
- | |||||
| 496 | WD12X349 | Insulator Water Valve |
|
- | |||||
| 574 | WD1X5491 | Plug Power Shower |
|
- | |||||
| 615 | WD28X5081 | Rack Upper & Wheel Asm |
|
- | |||||
| 650 | WD30X84 | Slide Rack & Cap Asm |
|
- | |||||
| 652 | WD12X113 | Rack Slide End Cap |
|
- | |||||
| 653 | WD3X5114 | Strip Nut A |
|
- | |||||
| 654 | WD12X5050 | Roller & Stud Upr Rack |
|
- | |||||
| 701 | WD28X5083 | Rack Lower Asm Blue |
|
- | |||||
| 703 | WD12X5026 | Roller & Stud Lwr Rack |
|
$ 4.20 | |||||
| 704 | WD12X5044 | Rack Stop |
|
- | |||||
| 707 | WD12X5024 | Tub Roller |
|
- | |||||
| 708 | WD3X744 | Tub Roller Stud |
|
- | |||||
| 740 | WD2X5187 | Scr 10-24x3/8 D Hexw S |
|
- | |||||
| 745 | WD1X5443 | Junction Box Plate |
|
- | |||||
| 745 | WD1X816 | Junction Box Cover |
|
- | |||||
| 748 | WD1X5384 | Pedestal Leg |
|
- | |||||
| 749 | WD3X5082 | Scr 1/4-20x5/8 Rnd Wshr |
|
- | |||||
| 752 | WD1X5433 | Bracket Hold Down |
|
- | |||||
| 752 | WZ04X0401 | Scr 8-18x1/2 Ab Recess |
|
- | |||||
| 759 | WD27X5331 | Kickplate |
|
- | |||||
| 761 | WG04F00380 | Silverware Basket (Replaces: WD28X245) |
|
Immediately | $ 70.96 | ||||
| 780 | WD24X191 | Fill Funnel |
|
- | |||||
| 781 | WD8X192 | Fill Funnel Gasket |
|
- | |||||
| 782 | WD24X5082 | Fill Hose |
|
- | |||||
| 783 | WD21X536 | Solenoid Asm |
|
- | |||||
| 784 | WD2X5186 | Scr Seal 8-10x.625 B T15 |
|
- | |||||
| 787 | WD2X5166 | Scr 10-16x1/2 Ab Hxw S |
|
- | |||||
| 790 | WH1X2036 | Hose Clamp |
|
- | |||||
| 814 | WD1X5504 | Grommet |
|
- | |||||
| 844 | WD8X5100 | Gasket & Rtnr Asm Tub Fl |
|
- | |||||
| 1211 | WZ04X0345 | Scr 8-18x3/8 Ab Hxw |
|
- | |||||
| 1299 | WD8X5064 | Gasket Mounting A |
|
- | |||||
| 1299 | WZ07X0037 | Palnut |
|
- |
