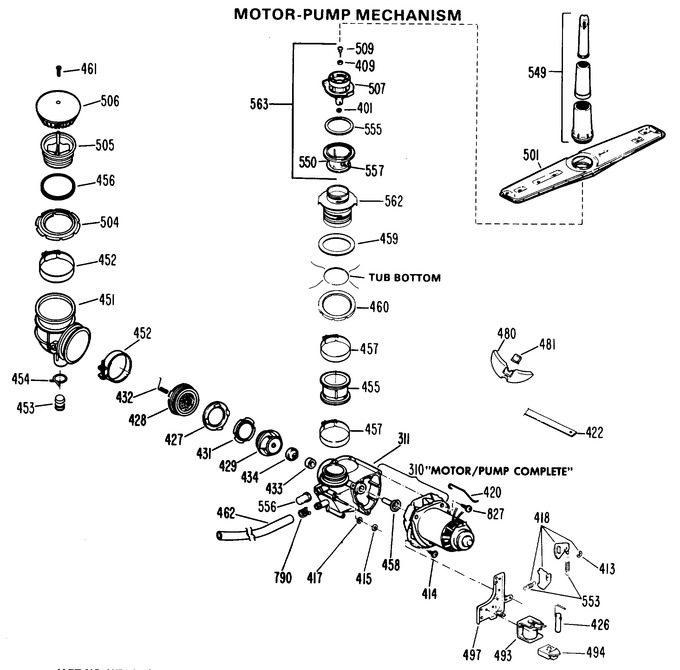

3 - Motor-pump Mechanism
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 310 | WG04F00655 | Motor/pump Asm (Replaces: WD26X74) |
|
Immediately | $ 246.46 | ||||
| 311 | WG04F00655 | Pump Housing Asm (Replaces: WD19X42) |
|
Immediately | $ 246.46 | ||||
| 401 | WD3X767 | Washer St Stl |
|
- | |||||
| 409 | WD3X766 | Thrust Washer |
|
- | |||||
| 413 | WG04F01736 | Retainer (Replaces: WD3X487) |
|
$ 82.95 | |||||
| 414 | WZ04X0044 | Scr 8-18x.375 Ab Tru Ph |
|
- | |||||
| 415 | WD2X429 | Nut Push On |
|
- | |||||
| 417 | WG04L01888 | Seal Shaft (Replaces: WD8X181) |
|
Immediately | $ 20.01 | ||||
| 418 | WG04A00385 | Gate Valve Arm Kit (Replaces: WD35X190) |
|
$ 14.29 | |||||
| 420 | WD1X5485 | Motor Hanger |
|
- | |||||
| 422 | WD1X5486 | Strap Motor |
|
- | |||||
| 426 | WG02F03627 | Armature & Link Assembly (Replaces: WD1X1316) |
|
$ 3.93 | |||||
| 427 | WD12X354 | Wear Ring Base |
|
- | |||||
| 428 | WD12X378 | Grader / Nut |
|
- | |||||
| 429 | WD19X53 | Impeller Asm Pump |
|
- | |||||
| 431 | WD1X1341 | Wear Ring |
|
- | |||||
| 432 | WD1X1339 | Spring Cutter |
|
- | |||||
| 433 | WD19X51 | Seal Seat Asm |
|
- | |||||
| 434 | WD19X52 | Shaft Seal Asm |
|
- | |||||
| 452 | WG04A00077 | Clamp (sump) (Replaces: WD1X1392) |
|
$ 14.29 | |||||
| 453 | WD12X213 | Plug Trap |
|
- | |||||
| 454 | WH1X2036 | Clamp Hose |
|
- | |||||
| 455 | WD18X175 | Spray Arm Tube |
|
- | |||||
| 456 | WD8X5092 | Support Gasket |
|
- | |||||
| 457 | WD1X1376 | Clamp (pump Connector) |
|
- | |||||
| 458 | WD12X106 | Shaft Guard/slinger |
|
- | |||||
| 459 | WD8X5093 | Spray Base Gasket |
|
- | |||||
| 460 | WD3X627 | Spray Base Nut |
|
- | |||||
| 461 | W11772394 | Sump Cover Mtg Screw (Replaces: WZ04X0250) |
|
Immediately | $ 11.90 | ||||
| 462 | WD24X211 | Hose Drain |
|
- | |||||
| 480 | WD1X5505 | Barrier |
|
- | |||||
| 481 | WD1X5506 | Clip U Type Speed |
|
- | |||||
| 493 | WD21X440 | Drain Solenoid Coil |
|
- | |||||
| 494 | WD12X350 | Drain Solenoid Insulator |
|
- | |||||
| 497 | WD1X1282 | Bracket Solenoid |
|
- | |||||
| 501 | WD22X132 | Spray Arm Asm |
|
- | |||||
| 504 | WD3X5119 | Sump Inlet Nut |
|
- | |||||
| 505 | WD12X5027 | Inlet Sump |
|
- | |||||
| 506 | WD12X5028 | Sump Cover |
|
$ 61.00 | |||||
| 507 | WD22X121 | Hub Spray Arm |
|
- | |||||
| 509 | WD3X765 | Hub Screw |
|
- | |||||
| 549 | WD22X124 | Center Spray Asm |
|
- | |||||
| 553 | WG02F03593 | Gate Arm Springs (Replaces: WD3X721) |
|
$ 46.42 | |||||
| 555 | WD12X331 | Split Ring Seal |
|
- | |||||
| 556 | WG04L01543 | Power Shower Cap (Replaces: WD1X5405) |
|
$ 6.09 | |||||
| 557 | WG04F04521 | Valve Check (Replaces: WD1X5488) |
|
Immediately | $ 3.64 | ||||
| 562 | WD22X130 | Adapter |
|
- | |||||
| 563 | WD22X126 | Hub & Support Asm |
|
- | |||||
| 790 | WH1X2036 | Clamp Hose |
|
- | |||||
| 827 | WD2X425 | Scr 10-12x1/2 Ac Pnr S |
|
- |
