View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

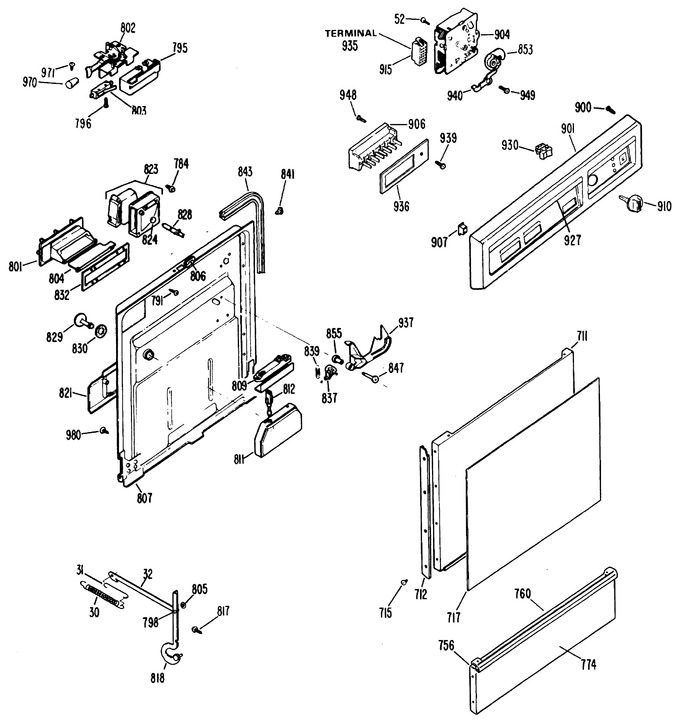

1 - Component Group
2 - Component Group
3 - Motor Pump Mechanism
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 31-3258 | Pm Instruction Instal |
|
- | |||||
| 30 | WD14X5073 | Hinge Spring |
|
- | |||||
| 31 | WD1X5364 | Extension Spring 5.2 In |
|
- | |||||
| 32 | WD1X5429 | Stop Door B |
|
- | |||||
| 52 | WD2X5177 | Timer Mounting Screw |
|
- | |||||
| 303 | WD1X1440 | Housing Terminal |
|
- | |||||
| 400 | WZ04X0044 | Screw 8-18x3/8 B Pnr S |
|
- | |||||
| 528 | WC1X5096 | Nut Hex 8-32 |
|
- | |||||
| 711 | WD27X531 | Door Panel & Trim Asm |
|
- | |||||
| 712 | WD34X778 | Trim Door Side R.h. |
|
- | |||||
| 712 | WD34X779 | Trim Door Side L.h. |
|
- | |||||
| 715 | WW02A00097 | Scr 8-18 Nc (Replaces: WD1X1313) |
|
$ 3.57 | |||||
| 717 | WD27X534 | Insert Door Panel Bk/ad |
|
- | |||||
| 756 | WD27X540 | Panel Service Complete |
|
- | |||||
| 757 | WD34X777 | Trim Serv Pnl Side/bot |
|
- | |||||
| 760 | WD34X780 | Trim Top Serv Panel |
|
- | |||||
| 774 | WD27X535 | Insert Serv Panel Bk/ad |
|
- | |||||
| 784 | WD2X5186 | Scr Seal 8-10x.625 B T15 |
|
- | |||||
| 791 | WD1X5499 | Scr Seal 8-18x.625 Bt Tr |
|
- | |||||
| 795 | WD1X5468 | Switch Guard |
|
- | |||||
| 796 | WD1X1146 | Interlock Switch Screw |
|
- | |||||
| 798 | WD3X5111 | Rivet A |
|
- | |||||
| 801 | WD24X5086 | Vent Inner Door |
|
- | |||||
| 802 | WD1X5493 | Spacer Latch |
|
- | |||||
| 802 | WD13X5014 | Latch Assembly |
|
- | |||||
| 803 | WD6X183 | Switch Latch |
|
- | |||||
| 804 | WD24X5071 | Cover Vent B |
|
- | |||||
| 805 | WD3X5112 | Pushnut |
|
- | |||||
| 806 | WD1X5477 | Insert Inner Door |
|
- | |||||
| 807 | WD35X5072 | Inner Door Panel |
|
- | |||||
| 817 | WD2X5065 | Screw-hinge To Door |
|
- | |||||
| 818 | WD14X5076 | Hinge Asm Left |
|
- | |||||
| 818 | WD14X5077 | Hinge Asm Right |
|
- | |||||
| 821 | WD12X5039 | Vent Baffle |
|
- | |||||
| 823 | WD16X314 | Cup Det Asm & Gasket |
|
- | |||||
| 824 | WD8X5101 | Detergent Shaft Gasket |
|
- | |||||
| 828 | WD16X315 | Shaft Det Cup |
|
- | |||||
| 832 | WD8X5098 | Door Vent Gasket |
|
- | |||||
| 837 | WD12X407 | Lever Cam Det |
|
- | |||||
| 839 | WD2X266 | Detergent Spring |
|
- | |||||
| 841 | WD17X5053 | Door Gasket Clip |
|
- | |||||
| 843 | WD17X5049 | Door Gasket Clip |
|
- | |||||
| 843 | WD8X5097 | Door Gasket With Clips |
|
- | |||||
| 847 | WD3X659 | Detergent Lever Screw |
|
- | |||||
| 853 | WD16X5042 | Detergent Trip Cam |
|
- | |||||
| 855 | WD12X117 | Spacer Pivot Det |
|
- | |||||
| 900 | WD2X5157 | Screw-escutcheon To Door |
|
- | |||||
| 901 | WD34X772 | Escutcheon & Insert Asm |
|
- | |||||
| 904 | WD21X646 | Timer |
|
- | |||||
| 906 | WD21X590 | Switch Pushbutton-4 |
|
- | |||||
| 907 | WD1X5492 | Pushbutton |
|
- | |||||
| 910 | WD9X5181 | Ring Timer Knob |
|
- | |||||
| 910 | WD9X252 | Knob Timer |
|
- | |||||
| 915 | WD1X1432 | Housing Terminal (black) |
|
- | |||||
| 927 | WD34X5247 | Trim Handle |
|
- | |||||
| 935 | WD1X1434 | Terminal Special |
|
- | |||||
| 936 | WD1X5490 | Bracket Switch |
|
- | |||||
| 937 | WD12X5041 | Lever |
|
- | |||||
| 939 | NOT STOCKD | Scr 6-20 X 5/16 Hexw S |
|
- | |||||
| 940 | WD12X5042 | Vent Opening Lever |
|
- | |||||
| 940 | WD2X5184 | Bushing Vent Lever |
|
- | |||||
| 948 | WD2X5169 | Scr 8-18 X 1/2bt Phl Pan |
|
- | |||||
| 949 | WD2X319 | Screw-vent Lever Mtg |
|
- | |||||
| 970 | WD9X225 | Knob Latch Handle |
|
- | |||||
| 971 | WZ02X0045 | Screw Latch Knob |
|
- | |||||
| 980 | WD2X5100 | Scr 8-15x7/16 A Trr Ss |
|
- | |||||
| 32767 | 39-5201 | Pm Manual Use & Care |
|
- | |||||
| 32767 | 31-3539 | Pm Sheet Mini Manual |
|
- |
