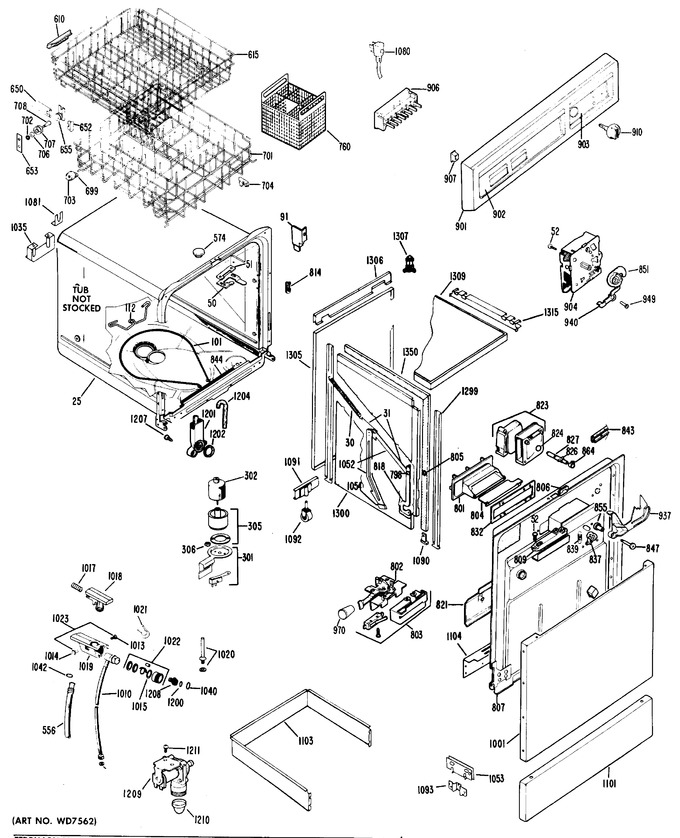

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
1 - Component Group
2 - Dishwasher Mechanism
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 25 | WD1X5373 | Insulation Back A |
|
- | |||||
| 30 | WD14X5073 | Hinge Spring |
|
- | |||||
| 31 | WD1X5364 | Extension Spring 5.2 In |
|
- | |||||
| 50 | WD13X5012 | Keeper Latch |
|
- | |||||
| 51 | WZ06X0127 | Keeper Screw 10-32x3/8 |
|
- | |||||
| 51 | WD13X48 | Keeper Fastener |
|
- | |||||
| 52 | WD2X5177 | Timer Mounting Screw |
|
- | |||||
| 91 | WD1X5392 | Trim Tub Corner Lh |
|
- | |||||
| 91 | WD1X5391 | Trim Tub Corner Rh |
|
- | |||||
| 101 | WD3X723 | Heater Washer |
|
- | |||||
| 101 | WD3X5118 | Ground Strap |
|
- | |||||
| 101 | WD3X724 | Heater Washer |
|
- | |||||
| 101 | WD2X5172 | Heater Nut |
|
- | |||||
| 101 | WD5X47 | Kit Calrod Ps |
|
- | |||||
| 112 | WD1X5484 | Stabilizer Htg Element |
|
- | |||||
| 301 | WD21X5135 | Flood Switch Brkt Asm |
|
- | |||||
| 302 | WD12X5016 | Float Flood Control |
|
- | |||||
| 305 | WD12X5019 | Kit Float Tube Ps |
|
- | |||||
| 306 | WD2X5171 | Washer |
|
- | |||||
| 306 | WD3X687 | Nut Hex 10-32 |
|
- | |||||
| 400 | WZ04X0044 | Screw |
|
- | |||||
| 454 | WH1X2036 | Clamp Hose |
|
- | |||||
| 556 | WH1X2036 | Clamp Hose |
|
- | |||||
| 556 | WD24X5081 | Wd35x0194 |
|
- | |||||
| 558 | WH1X2036 | Clamp Hose |
|
- | |||||
| 560 | WD22X115 | Hub - Support Asm |
|
- | |||||
| 574 | WD1X5491 | Plug Power Shower |
|
- | |||||
| 615 | WD28X5081 | Rack Upper Wheel Asm |
|
- | |||||
| 650 | WD30X84 | Rack Slide & End Caps |
|
- | |||||
| 652 | WD12X113 | Rack Slide End Cap |
|
- | |||||
| 653 | WD3X5114 | Strip Nut A |
|
- | |||||
| 655 | WD12X5023 | Wd12x5050 |
|
- | |||||
| 699 | WD12X5022 | Stud |
|
- | |||||
| 701 | WD28X5083 | Rack Lower Asm Blue |
|
- | |||||
| 702 | WD2X5102 | Washer Rubber |
|
- | |||||
| 703 | WD12X5026 | Roller Stud Lwr Rack |
|
$ 4.20 | |||||
| 704 | WD12X5044 | Rack Stop |
|
- | |||||
| 706 | WD3X543 | Wd3x772 |
|
- | |||||
| 707 | WD12X5024 | Roller Tub |
|
- | |||||
| 708 | WD3X744 | Tub Roller Stud |
|
- | |||||
| 760 | WD28X5086 | Silverware Basket |
|
- | |||||
| 798 | WD3X5111 | Rivet A |
|
- | |||||
| 801 | WD2X5184 | Bushing Vent Lever |
|
- | |||||
| 801 | WD24X5086 | Vent Inner Door |
|
- | |||||
| 802 | WD1X5493 | Spacer Latch |
|
- | |||||
| 802 | WD13X5014 | Latch Assembly |
|
- | |||||
| 803 | WD1X5478 | Fastener |
|
- | |||||
| 803 | WD1X1146 | Interlock Switch Screw |
|
- | |||||
| 803 | WD21X5170 | Switch Asm |
|
- | |||||
| 803 | WD1X5468 | Switch Guard |
|
- | |||||
| 804 | WD24X5071 | Cover Vent B |
|
- | |||||
| 805 | WD3X5112 | Pushnut |
|
- | |||||
| 806 | WD1X5477 | Insert Inner Door |
|
- | |||||
| 807 | WD35X5072 | Inner Door Panel |
|
- | |||||
| 810 | WD3X655 | Pin Valve Asm |
|
- | |||||
| 814 | WD14X5040 | Guide Door Stop |
|
- | |||||
| 818 | WD14X5076 | Hinge Asm Left |
|
- | |||||
| 818 | WD14X5077 | Hinge Asm Right |
|
- | |||||
| 818 | WD2X5065 | Screw-hinge To Door |
|
- | |||||
| 821 | WD2X5176 | Palnut |
|
- | |||||
| 821 | WD12X5039 | Vent Baffle |
|
- | |||||
| 822 | WD3X698 | Screw |
|
- | |||||
| 823 | WD16X5039 | Detergent Cup |
|
- | |||||
| 824 | WD8X5101 | Detergent Shaft Gasket |
|
- | |||||
| 826 | WD1X5483 | Dowel Spring Pin |
|
- | |||||
| 827 | WD16X227 | Kit Det Repair Ps |
|
- | |||||
| 832 | WD8X5098 | Door Vent Gasket |
|
- | |||||
| 837 | WD12X27 | Detergent Cam Lever |
|
- | |||||
| 839 | WD2X266 | Detergent Spring |
|
- | |||||
| 843 | WD17X5049 | Door Gasket Clip |
|
- | |||||
| 843 | WD17X5053 | Door Gasket Clip |
|
- | |||||
| 843 | WD8X5097 | Door Gasket |
|
- | |||||
| 844 | WD8X5100 | Gasket Rtnr Asm Tub Fl |
|
- | |||||
| 844 | WD2X5180 | Washer |
|
- | |||||
| 847 | WD3X659 | Detergent Lever Screw |
|
- | |||||
| 851 | WD16X5041 | Cam Det |
|
- | |||||
| 855 | WD12X117 | Spacer Pivot Det |
|
- | |||||
| 864 | WD1X1030 | Ring Compression |
|
- | |||||
| 901 | WD34X5179 | Escutcheon Asm |
|
- | |||||
| 901 | WD2X5157 | Screw-escutcheon To Door |
|
- | |||||
| 902 | WD9X5166 | Insert Esc Pb Switch |
|
- | |||||
| 903 | WD9X5164 | Insert Timer |
|
- | |||||
| 904 | WD21X5190 | Timer |
|
- | |||||
| 904 | WD1X1180 | Ins Tri Term |
|
- | |||||
| 906 | WD2X5169 | Scr 8-18 X 1/2bt Phl Pan |
|
- | |||||
| 906 | WD21X5192 | Switch Pushbutton |
|
- | |||||
| 906 | WD1X5490 | Bracket Switch |
|
- | |||||
| 906 | WD2X5156 | Screw |
|
- | |||||
| 907 | WD1X5492 | Pushbutton |
|
- | |||||
| 910 | WD9X5161 | Knob Timer |
|
- | |||||
| 937 | WD12X5041 | Lever |
|
- | |||||
| 940 | WD12X5042 | Vent Opening Lever |
|
- | |||||
| 949 | WD2X319 | Screw 8-32 X 3/8 |
|
- | |||||
| 970 | WD9X5162 | Knob Latch Handle |
|
- | |||||
| 970 | WZ02X0045 | Screw Latch Knob |
|
- | |||||
| 1000 | WZ04X0241 | Scr 8-15 Ab Tr 1/2 Ss |
|
- | |||||
| 1001 | WD27X5387 | Panel Outer Door Cf |
|
- | |||||
| 1001 | WD27X5385 | Ps Front Panel Almond |
|
- | |||||
| 1001 | WD27X5386 | Ps Front Panel White |
|
- | |||||
| 1001 | WD27X5384 | Ps Front Panel Harv Wh |
|
- | |||||
| 1001 | WD27X5391 | Panel Outer Door Fa |
|
- | |||||
| 1001 | WD2X5100 | Scr 8-15x7/16 A Trr Ss |
|
- | |||||
| 1010 | WD24X5084 | Hose Inlet |
|
- | |||||
| 1013 | WD2X265 | Wd2x265d |
|
- | |||||
| 1014 | WD3X685 | 172b6543p01 |
|
- | |||||
| 1015 | WD1X5495 | O Ring |
|
- | |||||
| 1017 | WD1X1099 | Relief Sprng |
|
- | |||||
| 1018 | WD9X196 | Slide-handle |
|
- | |||||
| 1019 | WD12X166 | Ps Body Unicouple & Th |
|
- | |||||
| 1020 | WD10X324 | Wd35x0194 |
|
- | |||||
| 1021 | WD1X1141 | Thumb Releas |
|
- | |||||
| 1022 | WD35X174 | Unicouple Repair Kit |
|
- | |||||
| 1023 | WD3X686 | Ps Unicouple Stud - Scr |
|
- | |||||
| 1035 | WD17X5028 | Clamp Hose A404933 |
|
- | |||||
| 1035 | WD1X5359 | Hose Guide Asm |
|
- | |||||
| 1040 | WD3X588 | Washer |
|
- | |||||
| 1042 | WD8X174 | Unicpl Seal |
|
- | |||||
| 1052 | WD1X5408 | Anti Tip Pad Lh |
|
- | |||||
| 1052 | WD1X5409 | Anti Tip Pad Rh |
|
- | |||||
| 1053 | WD1X5389 | Guide Asm Rh |
|
- | |||||
| 1053 | WD1X5390 | Guide Asm Lh |
|
- | |||||
| 1054 | WD1X5370 | Pad Anti Tip |
|
- | |||||
| 1080 | WD6X5013 | Cord Power Asm |
|
- | |||||
| 1080 | WD1X5178 | Shield Cord |
|
- | |||||
| 1080 | WD1X5496 | Guard Power Cord |
|
- | |||||
| 1081 | WD1X5494 | Guide Cord |
|
- | |||||
| 1090 | WD34X4138 | Cap Side Trim |
|
- | |||||
| 1091 | WD1X1311 | Socket Caster |
|
- | |||||
| 1092 | WD1X1152 | Caster |
|
- | |||||
| 1093 | WD1X5365 | Bracket Guide |
|
- | |||||
| 1093 | WD2X5076 | Wd2x5076d |
|
- | |||||
| 1101 | WD27X5393 | Pl Insul Serv Ad Ps |
|
- | |||||
| 1101 | WD27X5396 | Panel Insl Service Fa |
|
- | |||||
| 1101 | WD27X5392 | Panel Insl Service Ha |
|
- | |||||
| 1101 | WD27X5395 | Panel Insl Service Cf |
|
- | |||||
| 1101 | WD27X5394 | Pl Insul Serv Wh Ps |
|
- | |||||
| 1103 | WD27X5113 | Skirt Fin |
|
- | |||||
| 1104 | WD27X5338 | Kickplate |
|
- | |||||
| 1200 | WD3X289 | Gasket Adapt Int Thd |
|
- | |||||
| 1201 | WD24X191 | Fill Funnel |
|
- | |||||
| 1202 | WD8X192 | Fill Funnel Gasket |
|
- | |||||
| 1204 | WD24X5083 | Hose Fill |
|
- | |||||
| 1204 | WH1X2036 | Clamp Hose |
|
- | |||||
| 1207 | WD2X5186 | Scr Seal 8-10x.625 B T15 |
|
- | |||||
| 1208 | WD10X316 | Adapter Faucet |
|
$ 8.25 | |||||
| 1209 | WD15X93 | Valve Water Inlet (Replaces: WD15X81) |
|
$ 64.56 | |||||
| 1210 | WD10X327 | Water Valve Screen |
|
- | |||||
| 1211 | WD2X5166 | Scr 10-16x1/2 Ab Hxw S |
|
- | |||||
| 1211 | WZ04X0345 | Screw 8-18x5/8 Hxw |
|
- | |||||
| 1299 | WD1X5222 | Leg Pedestal |
|
- | |||||
| 1299 | WD8X5064 | Gasket Mounting A |
|
- | |||||
| 1299 | WZ07X0037 | Nut 1/4-20 M Hx Sz |
|
- | |||||
| 1299 | WD3X5082 | Scr 1/4-20x5/8 Rnd Wshr |
|
- | |||||
| 1300 | WD27X5404 | Side Panel R |
|
- | |||||
| 1300 | WD27X5402 | Side Panel R |
|
- | |||||
| 1300 | WD27X5409 | Side Panel L |
|
- | |||||
| 1300 | WD27X5408 | Side Panel L |
|
- | |||||
| 1300 | WD27X5407 | Panel Side Lh Ha |
|
- | |||||
| 1300 | WD27X5406 | Panel Side Rh Fa |
|
- | |||||
| 1300 | WD27X5405 | Panel Side Rh Cf |
|
- | |||||
| 1300 | WD27X5403 | Side Panel R |
|
- | |||||
| 1300 | WD27X5410 | Panel Side Lh Cf |
|
- | |||||
| 1300 | WD27X5411 | Panel Side Lh Fa |
|
- | |||||
| 1305 | WD27X5397 | Panel Back Ha |
|
- | |||||
| 1305 | WD27X5398 | Panel Back Ad |
|
- | |||||
| 1305 | WD27X5400 | Panel Back Cf |
|
- | |||||
| 1305 | WD27X5401 | Panel Back Fa |
|
- | |||||
| 1305 | WD27X5399 | Back Panel |
|
- | |||||
| 1306 | WD2X5107 | Scr 8-15x5/16 A Pnr Ss |
|
- | |||||
| 1306 | WD34X5051 | Trim Back Fin |
|
- | |||||
| 1307 | WD2X5105 | 8-18x1/2 Bt Ph Pan |
|
- | |||||
| 1307 | WD34X5050 | Trim Corner |
|
- | |||||
| 1309 | WD17X5032 | Clamp A |
|
- | |||||
| 1309 | WZ04X0401 | Scr 8-18x1/2 Ab Trr S |
|
- | |||||
| 1309 | WD2X5058 | Scr 8-15x5/8 At Pnr S |
|
- | |||||
| 1309 | WD2X5039 | Wz4x230d |
|
- | |||||
| 1309 | WD1X5461 | Top Veneer |
|
- | |||||
| 1309 | WD1X5433 | Kit Hold Down Bracket Ps |
|
- | |||||
| 1314 | WD3X5103 | Speednut A |
|
- | |||||
| 1315 | WD1X5190 | Mounting Bracket |
|
- | |||||
| 1350 | WD34X5053 | Trim Side Lh Fin |
|
- | |||||
| 1350 | WD34X5054 | Trim Side Rh Fin |
|
- | |||||
| 9999 | 39-5138 | Instructions Oper |
|
- | |||||
| 9999 | 39-5136 | Book Use And Care |
|
- |
