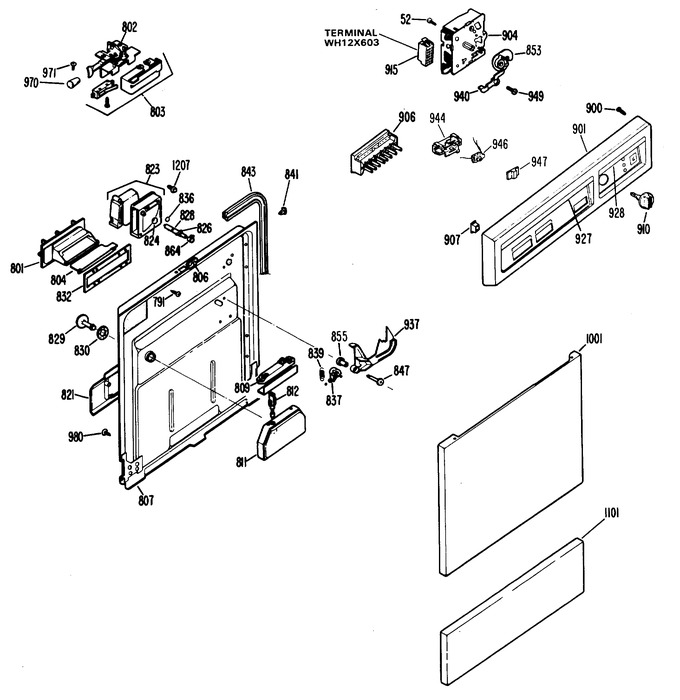

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
1 - Component Group
2 - Component Group
3 - Motor Pump Mechanism
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 52 | WD2X5177 | Timer Mounting Screw |
|
- | |||||
| 106 | WD3X5118 | Ground Strap |
|
- | |||||
| 400 | WZ04X0044 | Screw 8-18x3/8 B Pnr S |
|
- | |||||
| 418 | WG04A00385 | Gate Valve Arm Kit (Replaces: WD35X190) |
|
$ 14.29 | |||||
| 452 | WG04A00077 | Clamp (sump) (Replaces: WD1X1392) |
|
$ 14.29 | |||||
| 457 | WD1X1376 | Clamp (pump Connector) |
|
- | |||||
| 703 | WD12X5026 | Roller & Stud Lwr Rack |
|
$ 4.20 | |||||
| 711 | WD27X5384 | Panel Outer Door Ha |
|
- | |||||
| 711 | WD27X5386 | Panel Outer Door Wh |
|
- | |||||
| 711 | WD27X5385 | Panel Outer Door Ad |
|
- | |||||
| 756 | WD27X5392 | Panel & Insl Service Ha |
|
- | |||||
| 756 | WD27X5393 | Panel & Insl Service Ad |
|
- | |||||
| 756 | WD27X5394 | Panel & Insl Service Wh |
|
- | |||||
| 784 | WD2X5186 | Scr Seal 8-10x.625 B T15 |
|
- | |||||
| 791 | WD1X5499 | Scr Seal 8-18x.625 Bt Tr |
|
- | |||||
| 795 | WD1X5468 | Switch Guard |
|
- | |||||
| 796 | WD1X1146 | Interlock Switch Screw |
|
- | |||||
| 801 | WD24X5086 | Vent Inner Door |
|
- | |||||
| 802 | WD13X5015 | Latch Assembly |
|
- | |||||
| 802 | WD1X5493 | Spacer Latch |
|
- | |||||
| 803 | WD6X183 | Switch Interlock |
|
- | |||||
| 804 | WD24X5071 | Cover Vent B |
|
- | |||||
| 806 | WD1X5477 | Door Latch Insert |
|
- | |||||
| 807 | WD35X5072 | Inner Door Panel |
|
- | |||||
| 821 | WD12X5039 | Vent Baffle |
|
- | |||||
| 823 | WD16X5039 | Detergent Cup |
|
- | |||||
| 824 | WD8X5101 | Detergent Shaft Gasket |
|
- | |||||
| 826 | WD1X5483 | Dowel Spring Pin |
|
- | |||||
| 828 | WD16X283 | Detergent Cup Shaft |
|
- | |||||
| 832 | WD8X5098 | Door Vent Gasket |
|
- | |||||
| 836 | WD1X781 | Shaft "o" Ring |
|
- | |||||
| 837 | WD12X27 | Detergent Cam Lever |
|
- | |||||
| 839 | WD2X266 | Detergent Spring |
|
- | |||||
| 841 | WD17X5053 | Door Gasket Clip |
|
- | |||||
| 843 | WD17X5049 | Door Gasket Clip |
|
- | |||||
| 843 | WD8X5097 | Door Gasket With Clips |
|
- | |||||
| 847 | WD3X659 | Detergent Lever Screw |
|
- | |||||
| 853 | WD16X5042 | Detergent Trip Cam |
|
- | |||||
| 855 | WD12X117 | Spacer Pivot Det |
|
- | |||||
| 864 | WD1X1030 | Compression Ring |
|
- | |||||
| 900 | WD2X5157 | Screw-escutcheon To Door |
|
- | |||||
| 901 | WD34X635 | Escutcheon Asm Complete |
|
- | |||||
| 904 | WD21X589 | Timer |
|
- | |||||
| 910 | WD9X5181 | Ring Timer Knob |
|
- | |||||
| 910 | WD9X5161 | Knob Timer |
|
- | |||||
| 915 | WD1X1258 | Plug Timer Black |
|
- | |||||
| 927 | WD34X5247 | Trim Escut Handle |
|
- | |||||
| 935 | WH12X603 | Terminal Timer |
|
- | |||||
| 937 | WD12X5041 | Lever |
|
- | |||||
| 940 | WD2X5184 | Bushing Vent Lever |
|
- | |||||
| 940 | WD12X5042 | Vent Opening Lever |
|
- | |||||
| 944 | WD1X1380 | Bracket (switch) |
|
- | |||||
| 946 | WD21X581 | Switch Slide |
|
- | |||||
| 947 | WD1X1377 | Actuator (switch) |
|
- | |||||
| 948 | WD2X5169 | Scr 8-18 X 1/2bt Phl Pan |
|
- | |||||
| 949 | WD2X319 | Screw-vent Lever Mtg |
|
- | |||||
| 980 | WD2X5100 | Scr 8-15x7/16 A Trr Ss |
|
- | |||||
| 1101 | WD27X5436 | Panel & Insl Service Ds |
|
- | |||||
| 32767 | WD24X5089 | Unicouple & Hose Asm |
|
- | |||||
| 32767 | WD0X27 | Tube Center Spray |
|
- | |||||
| 32767 | WD00X715 | Fastener Keeper |
|
- | |||||
| 32767 | WD0X445 | Armature |
|
- | |||||
| 32767 | WD0X77 | Spring Plate |
|
- | |||||
| 32767 | WD27X5435 | Panel Outer Door Ds |
|
- | |||||
| 32767 | WD3X378 | Washer |
|
- | |||||
| 32767 | 39-5162 | Pm Book Use & Care |
|
- | |||||
| 32767 | WD0X26 | Top Power Tower |
|
- | |||||
| 32767 | WD0X444 | Link Solenoid |
|
- | |||||
| 32767 | WD0X589 | Spring Plate |
|
- |
