Diagram # Part Number Description Series Availability Ships Price Add to Cart
189 WR02X10683 Plug Hole Midlight Appelez-nous -
241 WR50X10027 Sensor Temp Appelez-nous -
262 WR02X10568 Hinge Cam Riser Appelez-nous -
263 WR02X10592 Pin Hinge Btm Adj Appelez-nous -
421 WR14X10044 Gasket Control Housing Appelez-nous -
421 WR17X10876 Housing Control Appelez-nous -
422 WR02X10546 Clip Damper Cover Appelez-nous -
424 WR55X10040 Board Asm Encoder Appelez-nous -
425 WR02X10570 Knob Control Appelez-nous -
426 WR09X10050 Damper & Gasket Asm Appelez-nous -
426 WR14X10047 Gasket Damper Appelez-nous -
427 WR23X10165 Harness Control Top Appelez-nous -
428 WR23X10156 Harness Lt & Sw Appelez-nous -
429 WR02X10618 Cover Damper Appelez-nous -
431 WR2X9299 Cap Mullion Duct Appelez-nous -
432 WR02X10561 Duct Mullion Appelez-nous -
434 WR17X10262 Grille Air Return Appelez-nous -
435 60A Lamp 60w Appl Appelez-nous -
435 WG03F01610 Socket & Terminal   (Replaces: WR02X10591) Special Order $ 12.71

436 WR02X10578 Reflector Lamp Appelez-nous -
442 WR02X10763 Cover Meat Pan Duct Appelez-nous -
445 WR02X10581 Ring Compression Appelez-nous -
447 WR02X10614 Cover Hinge Bq Appelez-nous -
448 WR13X10122 Hinge Top Asm Ff Appelez-nous -
449 WR01X10191 Nut Special Appelez-nous -
451 WR13X10154 Hinge Btm & Pin Asm Appelez-nous -
455 WR02X10622 Cover Sensor Ff Appelez-nous -
552 WR01X10034 Scr 12-24 Tt Ih .811 S Appelez-nous -
560 WR01X10195 Scr 12-24 Ca Hx 7/8 S Appelez-nous -
578 WZ02X0503 Scr 8-32 Ma Pa 3/8 S Appelez-nous -
609 WR23X10162 Switch Light Appelez-nous -
727 WR17X10723 Separator Air Hiside Appelez-nous -
779 WR02X10773 Cover Water Filter Appelez-nous -
790 HWF Filter Canister Appelez-nous -
791 WR02X10577 Plug Bypass Filter Appelez-nous -
792 WR17X11028 Filter Asm And Tube Appelez-nous -
810 WR17X10734 Water Tank Disp Asm Appelez-nous -
812 WR17X10732 Tube Plastic Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

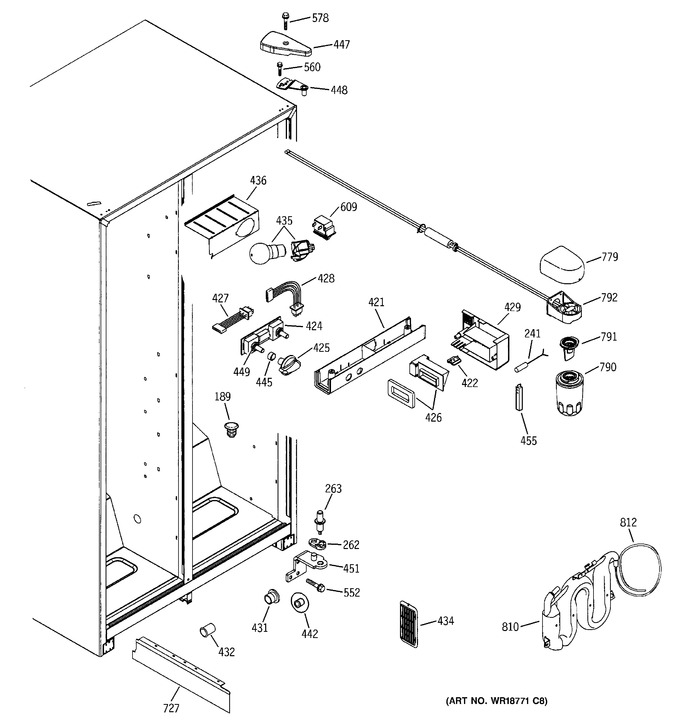

Diagram for HST25IFMBCC
