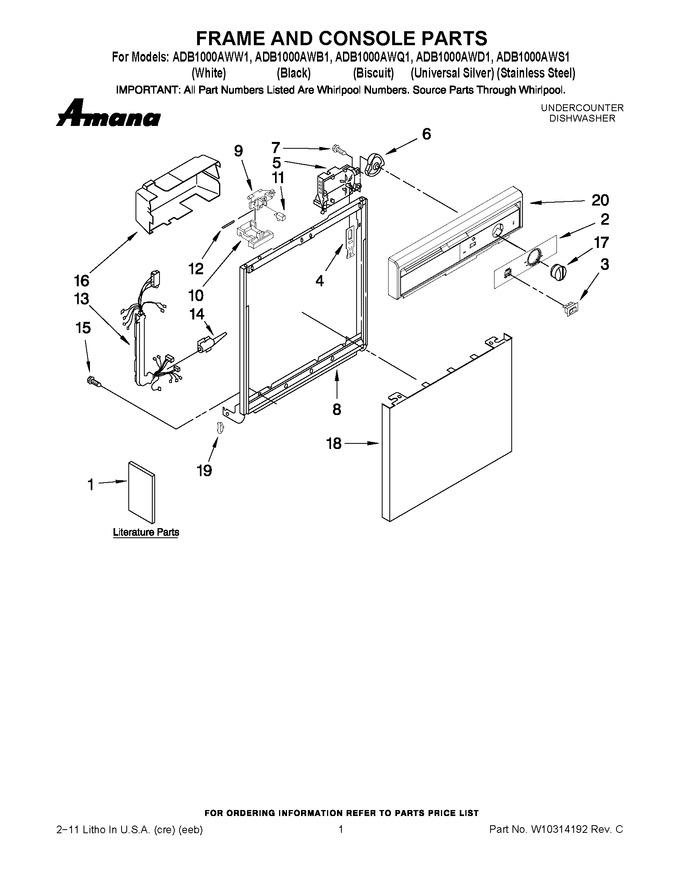

01 - Frame And Console Parts
02 - Inner Door Parts
03 - Tub Assembly Parts
04 - Pump And Spray Arm Parts
05 - Pump And Motor Parts
06 - Dishrack Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10039930 | Diagram, Wiring |
|
- | |||||
| 1 | 8535436 | Instructions, Installation |
|
- | |||||
| 1 | W10254853 | Guide, Energy |
|
- | |||||
| 1 | W10254854 | Guide, Use & Care (english/french) |
|
- | |||||
| 1 | W10254855 | Guide, Use & Care (spanish) |
|
- | |||||
| 2 | W10254817 | Insert, Console (black) |
|
- | |||||
| 2 | W10310451 | Insert, Console (biscuit) |
|
- | |||||
| 2 | W10254818 | Insert, Console (white) |
|
- | |||||
| 3 | 8274578 | Switch, Rocker (biscuit) |
|
- | |||||
| 3 | 8051729 | Switch, Rocker (black) |
|
$ 81.19 | |||||
| 3 | 8051730 | Switch, Rocker (white) |
|
$ 83.48 | |||||
| 4 | WP3369529 | Follower, Cam (Replaces: 3369529) |
|
$ 65.43 | |||||
| 5 | WPW10199588 | Timer (Replaces: W10039490) |
|
$ 351.31 | |||||
| 6 | WP8271510 | Cam (Replaces: 8271510) |
|
$ 8.96 | |||||
| 7 | WP304231 | Screw (Replaces: 304231) |
|
Immediately | $ 8.14 | ||||
| 8 | 9743028 | Door Frame |
|
$ 62.19 | |||||
| 9 | WP3380854 | Bolt, Latch (Replaces: 3380854) |
|
Immediately | $ 66.11 | ||||
| 10 | 3372231 | Lever, Latch (white) |
|
- | |||||
| 10 | 3375062 | Lever, Latch (biscuit) |
|
$ 37.58 | |||||
| 10 | 3369457 | Lever, Latch (black) |
|
$ 5.84 | |||||
| 11 | 3369325 | Switch, (2) |
|
- | |||||
| 12 | 3368955 | Pin, Switch |
|
$ 7.75 | |||||
| 13 | 8573186 | Harness And Protector |
|
$ 162.29 | |||||
| 14 | 3376405 | Elbow, Harness |
|
$ 14.02 | |||||
| 15 | WP3400892 | Screw (Replaces: 3400892) |
|
$ 8.24 | |||||
| 16 | W10299385 | Cover Timer |
|
- | |||||
| 17 | 8275310 | Knob, Timer (biscuit) |
|
- | |||||
| 17 | 8275308 | Knob, Timer (white) (Replaces: 8275309) |
|
$ 75.05 | |||||
| 17 | 8275308 | Knob, Timer (black) |
|
$ 75.05 | |||||
| 18 | W10214220 | Front Panel (s.steel) |
|
$ 151.05 | |||||
| 18 | 3379376 | Front Panel (white) |
|
$ 116.81 | |||||
| 18 | 3379375 | Front Panel (black) |
|
$ 115.07 | |||||
| 18 | 8054178 | Front Panel (biscuit) |
|
$ 111.70 | |||||
| 18 | 8537074 | Front Panel (universal Silver) |
|
- | |||||
| 19 | WP3373234 | Bearing, Spring (Replaces: 3373234) |
|
$ 11.01 | |||||
| 20 | W10254902 | Console (includes Item 2) (white) |
|
- | |||||
| 20 | W10310452 | Console (includes Item 2) (black) |
|
- | |||||
| 20 | W10310453 | Console (includes Item 2) (biscuit) |
|
- |
