SELECT A DIAGRAM

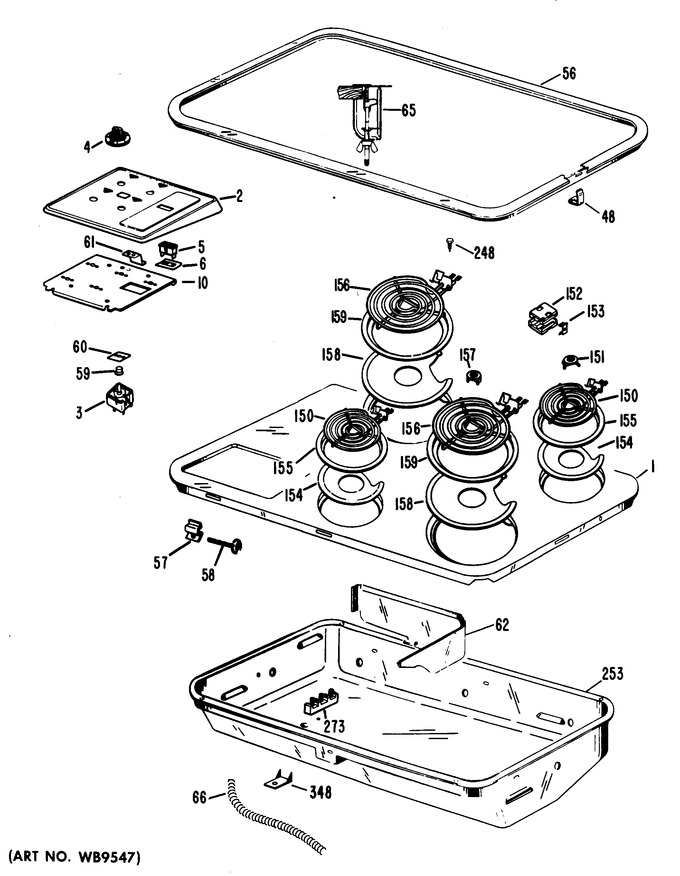

1 - Component Group
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WB62X1422 | Cooktop Bc |
|
- | |||||
| 2 | WB7X6767 | Trim Switch |
|
- | |||||
| 3 | WB2X6494 | Barrier |
|
- | |||||
| 3 | WB21X5217 | Switch Infinite Control |
|
- | |||||
| 4 | WB3X464 | Knob Surface Unit |
|
- | |||||
| 5 | WB2X3278 | Lamp Indicator |
|
- | |||||
| 6 | WB1X576 | Speed Clip |
|
- | |||||
| 10 | WB2X3281 | Bracket Switch |
|
- | |||||
| 48 | WB2X1172 | Clip |
|
- | |||||
| 56 | WB7X143 | Trim Frame |
|
- | |||||
| 57 | WB2X1006 | Bracket Mounting |
|
- | |||||
| 58 | WB1X194 | Thumb Screw |
|
- | |||||
| 59 | WB1X5070 | Rivet |
|
- | |||||
| 60 | WB2X5164 | Gasket-switch |
|
- | |||||
| 61 | WB2X3280 | Clip Cooktop |
|
- | |||||
| 62 | WB2X1028 | Guard |
|
- | |||||
| 65 | WB2X1175 | Mounting Pkg |
|
- | |||||
| 150 | WB30X342 | Surface Unit, 6" |
|
- | |||||
| 151 | WB32X52 | Center Trim 6" Unit |
|
- | |||||
| 152 | WB2X1351 | Term Block Double Coil |
|
- | |||||
| 152 | WB2X2398 | Term Block Single Coil |
|
- | |||||
| 153 | WB2X574 | 3 In 1 Insulator Clip |
|
- | |||||
| 154 | WB32X36 | Unit Pan 6" |
|
- | |||||
| 155 | WB31X5013 | Trim Ring 6" |
|
- | |||||
| 156 | WB30X348 | Surface Unit, 8" |
|
- | |||||
| 157 | WB32X51 | Center Trim 8" Unit |
|
- | |||||
| 158 | WB32X5013 | Unit Pan 8" |
|
- | |||||
| 159 | WB31X5014 | Trim Ring 8" |
|
Immediately | $ 13.55 | ||||
| 248 | WB1X500 | Terminal Screw |
|
- | |||||
| 253 | WB62X1423 | Box Cooktop |
|
- | |||||
| 273 | WB17X167 | Block Term Distribution |
|
- | |||||
| 348 | WB2X646 | Plate Ground |
|
- | |||||
| 9999 | 49-4529 | Manual Users |
|
- |
