View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

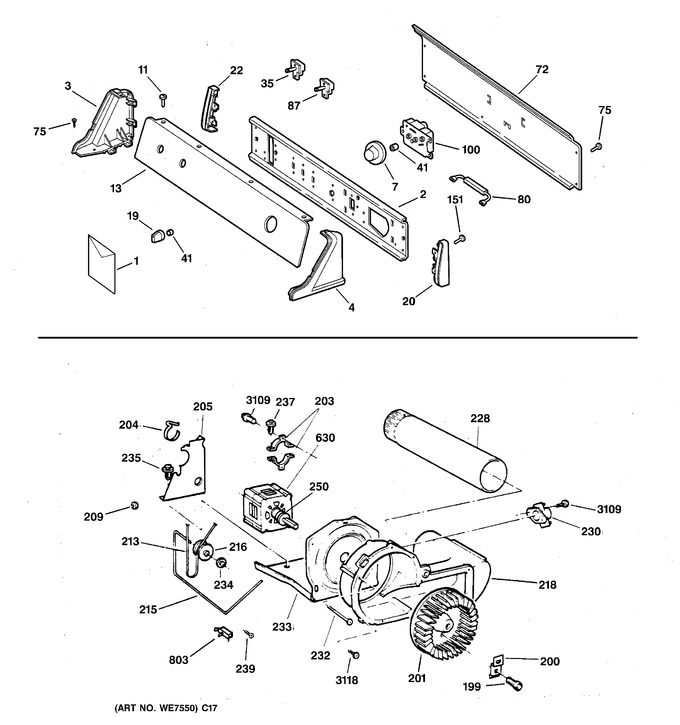

1 - Backsplash, Blower & Drive Assembly
2 - Front Panel & Door
3 - Cabinet
4 - Drum
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 39-9983 | Manual Use & Care |
|
- | |||||
| 1 | 31-16011 | Mini Manual |
|
- | |||||
| 1 | 31-16001 | Install Instruction |
|
- | |||||
| 2 | WH46X348 | Support Switch |
|
- | |||||
| 3 | WE19M984 | End Cap Lh Ad |
|
- | |||||
| 4 | WE19M985 | End Cap Rh Ad |
|
- | |||||
| 7 | WE1M432 | Knob Timer Ad |
|
- | |||||
| 11 | WE1X1270 | Scr 8-18 Ab Flt 5/8 Sn |
|
- | |||||
| 13 | WE19M1132 | Switch Trim Ad |
|
- | |||||
| 19 | WE1M431 | Knob & Clip Asm Ad |
|
- | |||||
| 20 | WE19M1059 | Cap Support Switch Rh |
|
- | |||||
| 22 | WE19M1058 | Cap Support Switch Lh |
|
- | |||||
| 35 | WG04F03522 | Switch Rotary Start (Replaces: WE4X881) |
|
Immediately | $ 110.98 | ||||
| 41 | WE1X980 | U Clip |
|
- | |||||
| 72 | WE20X811 | Panel Back |
|
- | |||||
| 75 | WE2M173 | Screw |
|
- | |||||
| 80 | WE4M255 | Resistor |
|
- | |||||
| 87 | WG04F07469 | Switch Rotary Temp (Replaces: WE4M242) |
|
Immediately | $ 10.62 | ||||
| 100 | WE4M188 | Timer Dryer |
|
- | |||||
| 151 | WE2M175 | Screw |
|
- | |||||
| 199 | WE2X280 | Scr 14-10 A Hx 1 S |
|
- | |||||
| 200 | WG04A01065 | Clamp (Replaces: WE1X688) |
|
$ 73.76 | |||||
| 201 | WW02A00073 | Blower Wheel (Replaces: WE16X30) |
|
Immediately | $ 64.24 | ||||
| 203 | WE13X182 | Strap Motor |
|
- | |||||
| 204 | WE1X921 | Strap Motor |
|
- | |||||
| 205 | WE13M22 | Bracket Motor |
|
- | |||||
| 209 | WE2M165 | Speednut |
|
- | |||||
| 213 | WW02F00854 | Belt Drive (Replaces: WE12M22) |
|
Immediately | $ 29.38 | ||||
| 215 | WW02A00060 | Spring Idler (Replaces: WE3M17) |
|
$ 12.60 | |||||
| 216 | WW02F00871 | Pulley Idler (Replaces: WE12M8) |
|
Immediately | $ 5.96 | ||||
| 218 | WE14M78 | Housing Blower |
|
- | |||||
| 228 | WE14M54 | Elbow Exhaust |
|
- | |||||
| 230 | WG04F01127 | Thermostat Bias Drum Out (Replaces: WE4M216) |
|
Immediately | $ 16.58 | ||||
| 232 | WW02A00032 | Screw (Replaces: WE2M156) |
|
$ 3.97 | |||||
| 233 | WE13M25 | Bracket Motor |
|
- | |||||
| 234 | WG04A00124 | Cap Nut (Replaces: WE2M96) |
|
$ 10.12 | |||||
| 235 | WE2M155 | Screw |
|
- | |||||
| 237 | WE2M148 | Screw |
|
- | |||||
| 239 | WE2M167 | Screw |
|
- | |||||
| 250 | WE12X41 | Pulley Drive |
|
- | |||||
| 630 | WG04F00726 | Motor Pulley Asm (Replaces: WE17M22) |
|
Immediately | $ 290.62 | ||||
| 803 | WW02F00249 | Switch Interlock (Replaces: WD21X557) |
|
Immediately | $ 17.47 | ||||
| 3109 | WE2M154 | Screw |
|
- | |||||
| 3118 | WH2M342 | Screw |
|
- |
