View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

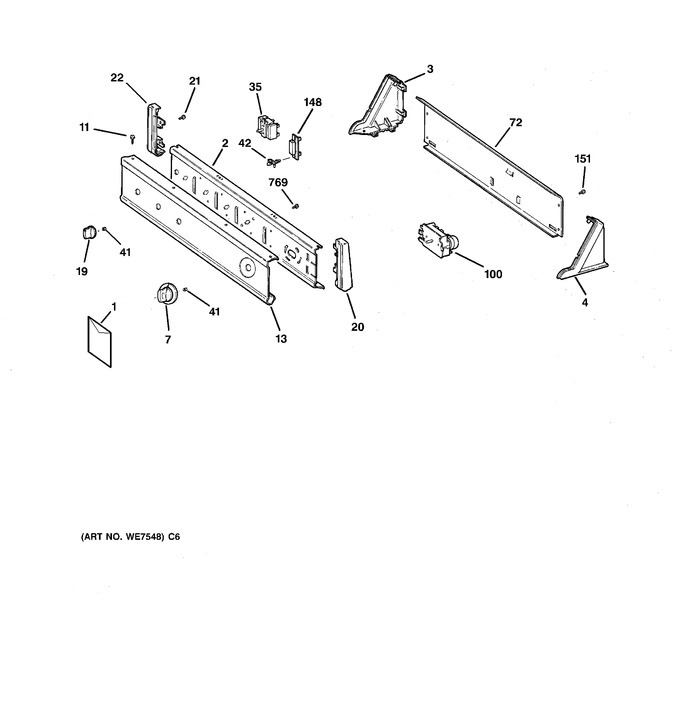

1 - Control Assembly
2 - Cabinet & Top
3 - Front Panel & Door
4 - Drum, Heater Asm., Blower & Drive Assembly
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 31-10049 | Mini Manual |
|
- | |||||
| 1 | 39-9330 | Use Care Manual |
|
- | |||||
| 1 | 31-2812 | Install Instructions |
|
- | |||||
| 2 | WH46X348 | Support Switch |
|
- | |||||
| 3 | WE19X1005 | End Cap Lh Bk |
|
- | |||||
| 4 | WE19X1006 | End Cap Rh Bk |
|
- | |||||
| 7 | WG04L04237 | Knob Timer Wh (Replaces: WE1X1267) |
|
Immediately | $ 20.65 | ||||
| 11 | WH2X1206 | Scr 8-18 Abflt 5/8 Sn Wh |
|
- | |||||
| 13 | WE19X992 | Switch Trim Asm |
|
- | |||||
| 19 | WH1X2756 | Knob & Clip Asm |
|
- | |||||
| 20 | WE19X984 | Cap Support Switch Rh |
|
- | |||||
| 21 | WH2X1185 | Scr 8-18 B Ihw 5/16 S |
|
- | |||||
| 22 | WE19X983 | Cap Support Switch Lh |
|
- | |||||
| 35 | WG04F03522 | Switch Rotary Start (Replaces: WE4X881) |
|
Immediately | $ 110.98 | ||||
| 41 | WE1X980 | U Clip |
|
- | |||||
| 42 | WE2X373 | Support Circ Board |
|
- | |||||
| 72 | WE20X814 | Panel Back |
|
- | |||||
| 100 | WE4X884 | Timer Dryer |
|
- | |||||
| 148 | WE4X799 | Resistor Board Asm |
|
- | |||||
| 151 | WH2X1210 | Scr 8-18 B Ihw 1/2 S N |
|
- | |||||
| 769 | WB1X500 | Scr 8-18 B Hxw 1/4 S |
|
- |
