SELECT A DIAGRAM

1 - Backsplash, Blower & Motor Assembly


2 - Front Panel & Door


3 - Cabinet


4 - Drum


5 - Gas Valve & Burner Assembly

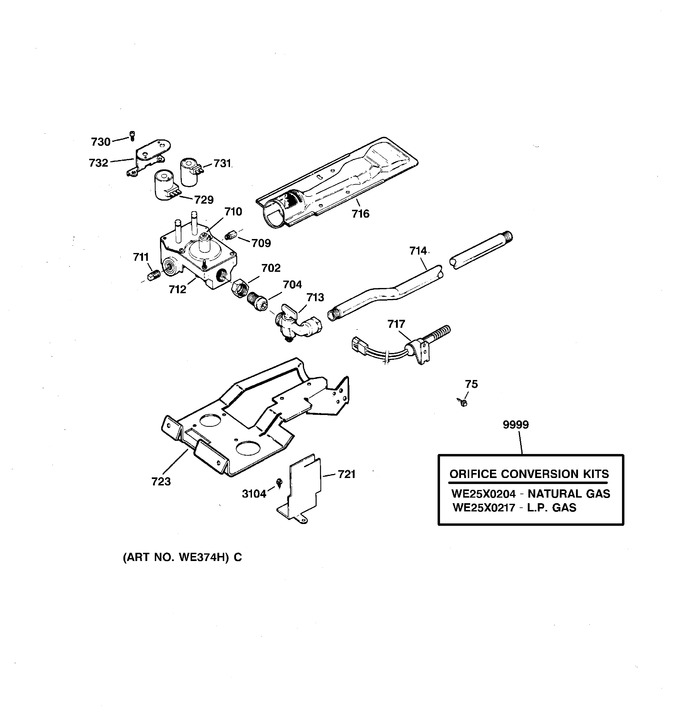

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
75	WE2M173		Screw		Appelez-nous	-
702	WE2X319		Nut		Appelez-nous	-
704	WE2X396		Nipple, Shutoff Valve		Appelez-nous	-
709	WE1X1148		Orifice		Appelez-nous	-
710	WE1X1076		Leak Limiter		Appelez-nous	-
711	1/8-27 NPT		Plug Pipe (not Stocked)		Appelez-nous	-
712	WW02F00099		Gas Valve Asm   (Replaces: WE14X215)			Immediately	$ 171.67
713	WE14X239		Valve, Elbow		Appelez-nous	-
714	WE1X1077		Pipe Lug Asm		Appelez-nous	-
716	WE14X217		Burner Asm		Appelez-nous	-
717	WW02F00740		Igniter Asm   (Replaces: WE4X739)			Immediately	$ 92.28
721	WE13X118		Bracket Spacer		Appelez-nous	-
723	WE13X195		Bracket Gas Valve		Appelez-nous	-
729	279834		Coil Dual   (Replaces: WE4X692)			Immediately	$ 32.85
730	WE2X333		Screw (coil Mtg Brkt)		Appelez-nous	-
731	279834		Coil Main   (Replaces: WE4X693)			Immediately	$ 32.85
732	WE13X169		Brkt. Coil		Appelez-nous	-
3104	WW01A00521		Screw   (Replaces: WE1M280)				$ 3.97
9999	WG04A00110		Kit Lp Gas Orifice Conv   (Replaces: WE25X217)			Immediately	$ 97.53
9999	WE25X218		Kit Nat Gas Orifice Conv		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
