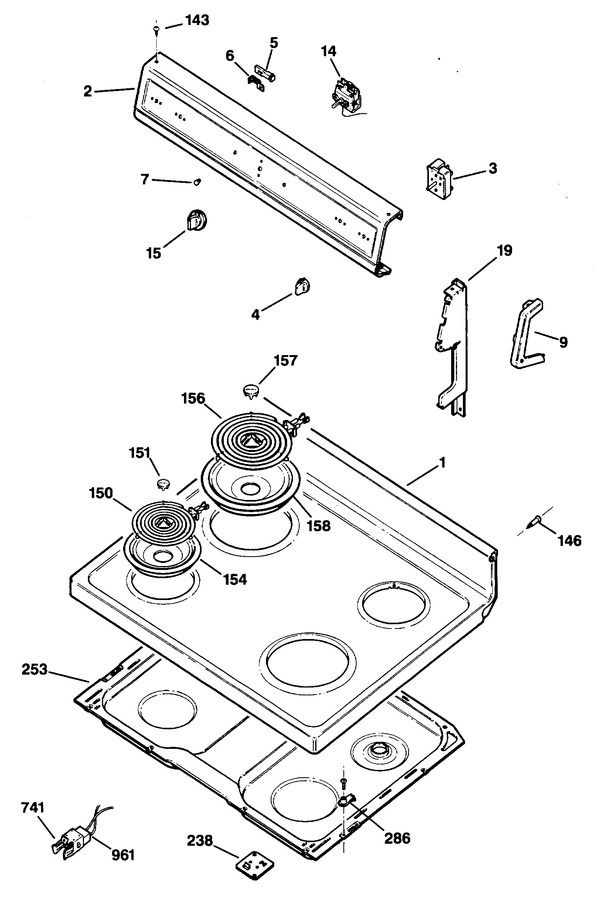

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WB62X5409		Cooktop Ad		Appelez-nous	-
1	WB62X5408		Cooktop Wh		Appelez-nous	-
2	WB7X7138		Trim Control		Appelez-nous	-
3	5500-200		Switch, Inf Surface Unit   (Replaces: WB21X5243)			Immediately	$ 60.94
4	WB3X5792		Knob Surface Unit		Appelez-nous	-
5	WB2X1608		Neon Lamp 118v				$ 31.65
7	WB25X65		Jewel		Appelez-nous	-
9	WB7X7136		End Cap Right		Appelez-nous	-
9	WB7X7137		End Cap Left		Appelez-nous	-
14	WB21X5304		Thermostat		Appelez-nous	-
14	WB2X6274		Sleeve Cap Tube		Appelez-nous	-
15	WB3X5793		Knob Thermostat		Appelez-nous	-
19	WB7X7166		Plate End L		Appelez-nous	-
19	WB7X7165		Plate End R		Appelez-nous	-
143	WB1X5860		Screw		Appelez-nous	-
146	WB1X5832		Screw Shoulder		Appelez-nous	-
150	WB30X5109		Unit Asm 6 Inch Plug In		Appelez-nous	-
151	WB32X52		Center Trim 6" Unit		Appelez-nous	-
152	WB2X1351		Term Block Double Coil		Appelez-nous	-
154	WB32X5075		Burner Bowl 6"		Appelez-nous	-
156	WB30K5027		8" Surface Element		Appelez-nous	-
157	WB32X51		Center Trim 8" Unit		Appelez-nous	-
158	WB32X5076		Burner Bowl 8"				$ 10.45
253	WB49X5499		Box Cooktop		Appelez-nous	-
254	WB1X549		Screw (hex)		Appelez-nous	-
286	WB2X8107		Strike Cooktop		Appelez-nous	-
520	WB58X5015		Oven Liner		Appelez-nous	-
741	WG02A00459		Clip Receptacle   (Replaces: WB2X8228)			Immediately	$ 50.66
741	WZ06X0038		Scr 8-18 Ab Hxw 5/8 S		Appelez-nous	-
961	WB017X5121		Recept. Asm		Appelez-nous	-
978	WB2X1126		Plug Button		Appelez-nous	-
32767	WB1X448		Washer		Appelez-nous	-
32767	31-0824		Install Instr (anti-tip)		Appelez-nous	-
32767	WB2X7876		Bracket Asm Anti-tip		Appelez-nous	-
32767	31-1065		Pm Manual Mini		Appelez-nous	-
32767	39-4700		Manual User		Appelez-nous	-
