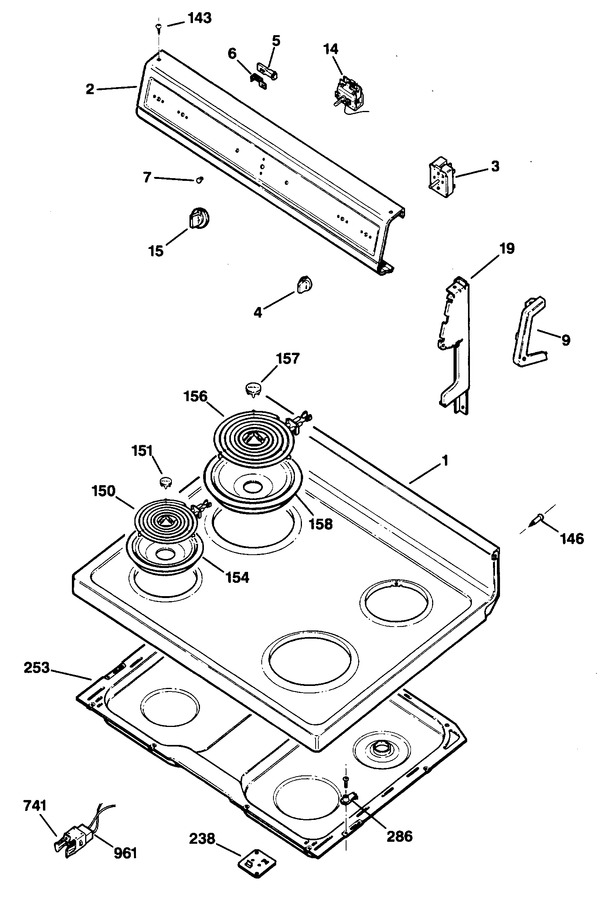

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WB62X5408 | Weld Asm Rangetop |
|
- | |||||
| 2 | WB7X7138 | Trim Control |
|
- | |||||
| 3 | 5500-200 | Switch, Inf Surface Unit (Replaces: WB21X5243) |
|
Immediately | $ 60.94 | ||||
| 4 | WB3X5792 | Knob Surface Unit |
|
- | |||||
| 5 | WB2X1608 | Neon Lamp 118v |
|
$ 31.65 | |||||
| 7 | WB25X65 | Jewel |
|
- | |||||
| 9 | WB7X7137 | End Cap Left |
|
- | |||||
| 9 | WB7X7136 | End Cap Right |
|
- | |||||
| 14 | WB21X5304 | Thermostat |
|
- | |||||
| 14 | WB2X6274 | Sleeve Cap Tube |
|
- | |||||
| 15 | WB3X5793 | Knob Thermostat |
|
- | |||||
| 19 | WB7X7166 | Plate End L |
|
- | |||||
| 19 | WB7X7165 | Plate End R |
|
- | |||||
| 45 | WB30X5119 | 6" Surface Element |
|
- | |||||
| 46 | WB32X5088 | Trim Center |
|
- | |||||
| 46 | WB30X5120 | 8" Surface Element |
|
- | |||||
| 47 | WB30X5121 | Unit Asm 6" P I |
|
- | |||||
| 57 | WB30K5027 | 8" Surface Element |
|
- | |||||
| 108 | WS01A01150 | Screw (Replaces: WB1X5364) |
|
$ 3.97 | |||||
| 143 | WB1X5860 | Screw |
|
- | |||||
| 146 | WB1X5832 | Screw Shoulder |
|
- | |||||
| 152 | WB2X1351 | Term Block Double Coil |
|
- | |||||
| 154 | WB32X5075 | Burner Bowl 6" |
|
- | |||||
| 157 | WB32X51 | Center Trim 8" Unit |
|
- | |||||
| 158 | WB32X5076 | Burner Bowl 8" |
|
$ 10.45 | |||||
| 253 | WB49X5499 | Box Cooktop |
|
- | |||||
| 256 | WB2X8248 | Glider Adj |
|
- | |||||
| 274 | WB2X8247 | Knockout Plate |
|
- | |||||
| 275 | WB2X8249 | Guard Terminal |
|
- | |||||
| 286 | WB2X8107 | Strike Cooktop |
|
- | |||||
| 457 | WB56X7069 | Panel Drawer Wh |
|
- | |||||
| 521 | WB9X88 | Lockwasher |
|
- | |||||
| 529 | WB49X5547 | Pan Broiler |
|
- | |||||
| 530 | 4396923 | Broiler Pan Rack (Replaces: WB48X5093) |
|
Immediately | $ 60.71 | ||||
| 741 | WG02A00459 | Clip Receptacle (Replaces: WB2X8228) |
|
Immediately | $ 50.66 | ||||
| 741 | WZ06X0038 | Scr 8-18 Ab Hxw 5/8 S |
|
- | |||||
| 769 | WB1X500 | Screw |
|
- | |||||
| 875 | WG04A00781 | Scr 8-18 Ab Hxw 3/8 S (Replaces: WH2X930) |
|
Immediately | $ 3.97 | ||||
| 904 | WB1X5550 | Scr 8/32 Tf Flr 1/4 S |
|
- | |||||
| 961 | WB2X1185 | Clip |
|
- | |||||
| 32767 | WB2X7876 | Bracket Asm Anti-tip |
|
- | |||||
| 32767 | 31-0824 | Install Instr (anti-tip) |
|
- | |||||
| 32767 | 31-1065 | Pm Manual Mini |
|
- | |||||
| 32767 | 39-4700 | Manual User |
|
- |
