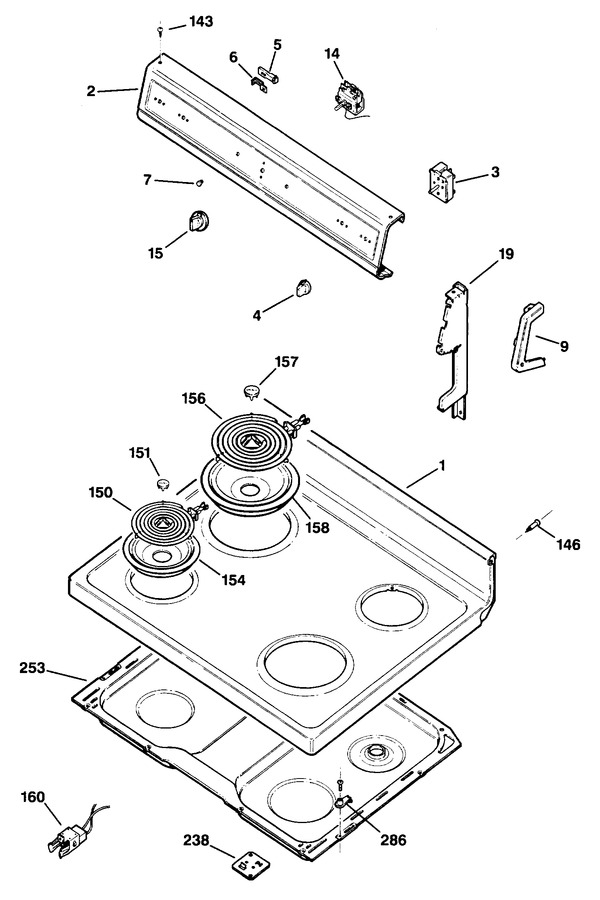

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WB62X5402 | Cooktop Ad |
|
- | |||||
| 1 | WB62X5407 | Cooktop Wh |
|
- | |||||
| 2 | WB7X7138 | Trim Control |
|
- | |||||
| 3 | 5500-200 | Switch, Inf Surface Unit (Replaces: WB21X5243) |
|
Immediately | $ 60.94 | ||||
| 4 | WB3X5792 | Knob Surface Unit |
|
- | |||||
| 5 | WB2X1608 | Neon Lamp 118v |
|
$ 31.65 | |||||
| 7 | WB25X65 | Jewel |
|
- | |||||
| 9 | WB7X7137 | End Cap Left |
|
- | |||||
| 9 | WB7X7136 | End Cap Right |
|
- | |||||
| 14 | WB2X6274 | Sleeve Cap Tube |
|
- | |||||
| 14 | WB21X5304 | Thermostat |
|
- | |||||
| 15 | WB3X5793 | Knob Thermostat |
|
- | |||||
| 19 | WB7X7161 | Plate End |
|
- | |||||
| 19 | WB7X7164 | Plate End |
|
- | |||||
| 19 | WB7X7163 | Plate End |
|
- | |||||
| 19 | WB7X7162 | Plate End |
|
- | |||||
| 56 | WG02F05372 | 6" Surf Elem (Replaces: WB30M1) |
|
Immediately | $ 68.23 | ||||
| 57 | WB30K5027 | 8" Surface Element |
|
- | |||||
| 108 | WS01A01150 | Screw (Replaces: WB1X5364) |
|
$ 3.97 | |||||
| 109 | WB1X5743 | Speednut |
|
- | |||||
| 143 | WB1X5860 | Screw |
|
- | |||||
| 146 | WB1X5832 | Screw Shoulder |
|
- | |||||
| 150 | WB30X5109 | Unit Asm 6 Inch Plug In |
|
- | |||||
| 152 | WB2X1351 | Term Block Double Coil |
|
- | |||||
| 154 | WB32X5076 | Burner Bowl 8"chrome |
|
$ 10.45 | |||||
| 158 | WB32X5075 | Burner Bowl 6" Chrome |
|
- | |||||
| 160 | WB17X5113 | Receptacle Asm |
|
- | |||||
| 223 | WG02A00596 | Pin Hinge Door (Replaces: WB2X6195) |
|
$ 4.20 | |||||
| 224 | WB2X1082 | Ring Retaining |
|
- | |||||
| 253 | WB49X5499 | Box Cooktop |
|
- | |||||
| 254 | WB1X549 | Screw |
|
- | |||||
| 286 | WB2X8107 | Strike Cooktop |
|
- | |||||
| 312 | WB1X119 | Washer Contoured |
|
- | |||||
| 314 | WB2X1222 | Pad Glass |
|
- | |||||
| 321 | WB1X5731 | Screw |
|
- | |||||
| 326 | WB2X6574 | Clip Trim |
|
- | |||||
| 327 | WB1X5736 | Speednut |
|
- | |||||
| 328 | WB1K15 | Screw Double Lead |
|
- | |||||
| 530 | 4396923 | Broiler Pan Rack (Replaces: WB48X5093) |
|
Immediately | $ 60.71 | ||||
| 752 | WZ04X0345 | Screw |
|
- | |||||
| 769 | WB1X500 | Screw |
|
- | |||||
| 904 | WB1X5550 | Scr 8/32 Tf Flr 1/4 S |
|
- | |||||
| 961 | WB2X1185 | Clip |
|
- | |||||
| 32767 | 39-4700 | Manual User |
|
- | |||||
| 32767 | WB2X7876 | Bracket Asm Anti-tip |
|
- | |||||
| 32767 | 31-0824 | Install Instr (anti-tip) |
|
- |
