SELECT A DIAGRAM

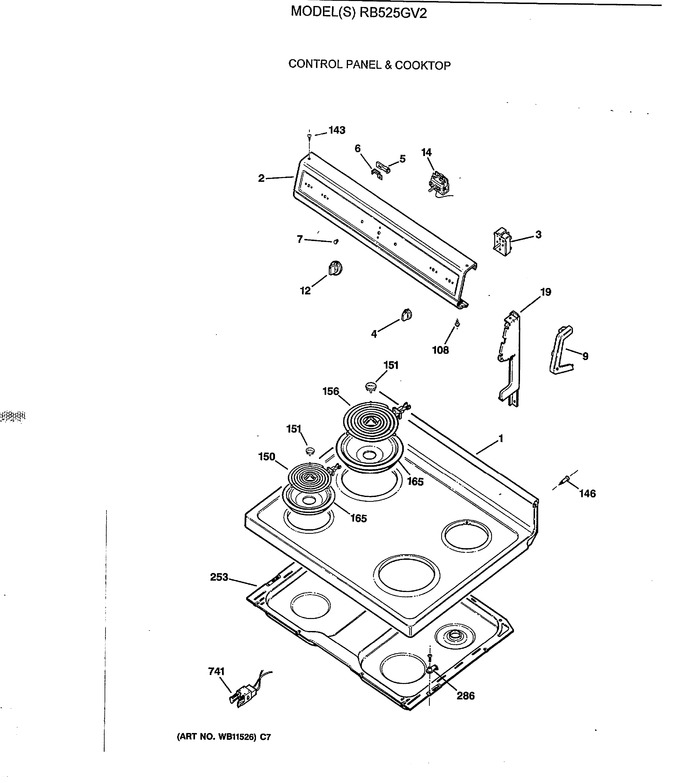

1 - Control Panel & Cooktop


2 - Body Parts


3 - Door & Drawer Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WB62X5407		Cooktop Wh		Appelez-nous	-
1	WB62X5403		Range Top Asm - Ad		Appelez-nous	-
2	WB36X5774		Trim Control		Appelez-nous	-
3	5500-200		Switch, Inf Surface Unit   (Replaces: WB21X5243)			Immediately	$ 60.94
4	WB3X5792		Knob Surface Unit		Appelez-nous	-
5	WB2X1608		Neon Lamp 118v				$ 31.65
6	WB2X1185		Clip Lamp		Appelez-nous	-
7	WB25X65		Jewel		Appelez-nous	-
9	WB7X7136		End Cap Right		Appelez-nous	-
9	WB7X7137		End Cap Left		Appelez-nous	-
14	WB20X5071		Thermostat Top Heat Sp		Appelez-nous	-
15	WB3X5793		Knob Thermostat		Appelez-nous	-
19	WB7X7274		Plate End Rh - Almond		Appelez-nous	-
19	WB7X7275		Plate End Lh - Almond		Appelez-nous	-
19	WB7X7273		Plate End Lh - White		Appelez-nous	-
19	WB7X7272		Plate End Rh - White		Appelez-nous	-
108	WB1X5904		Scr 8-18 Ba Por 3/4 Sn		Appelez-nous	-
143	WB1X5860		Screw		Appelez-nous	-
146	WB1X5832		Screw Shoulder		Appelez-nous	-
150	WB30X5129		6" P.i. S/u Alum		Appelez-nous	-
151	WG02F04803		Trim Center   (Replaces: WB31X5021)				$ 4.78
156	WB30X5130		8" P.i. S/u Alum		Appelez-nous	-
165	WB32X5076		Burner Bowl 8" Chrome				$ 10.45
165	WB32X5075		Burner Bowl 6" Chrome		Appelez-nous	-
253	WB49X5566		Box Cooktop		Appelez-nous	-
286	WB2X8107		Strike Cooktop		Appelez-nous	-
741	WG02A00459		Clip Receptacle   (Replaces: WB2X8228)			Immediately	$ 50.66
875	WG04A00781		Scr 8-18 Ab Hxw 3/8 S   (Replaces: WH2X930)			Immediately	$ 3.97
32767	31-0824		Install Instr (anti-tip)		Appelez-nous	-
32767	31-20214		Pm Manual Mini		Appelez-nous	-
32767	39-4755		Pm Manual Use & Care		Appelez-nous	-
32767	WB2X7876		Bracket Asm Anti-tip		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
