View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
1 - Cooktop
2 - Body Parts

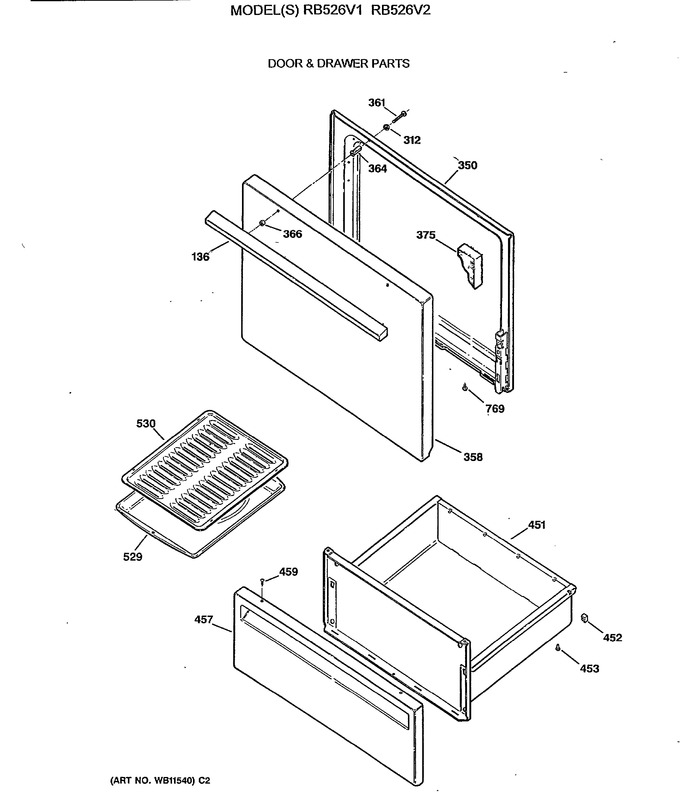

3 - Door & Drawer Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 136 | WB15X5202 | Handle Chrome |
|
- | |||||
| 312 | WB1X119 | Washer Contoured |
|
- | |||||
| 350 | WB55X5372 | Door Liner |
|
- | |||||
| 358 | WB56X7053 | Panel Door |
|
- | |||||
| 361 | WB1X5873 | Scr 10-16 B Pnp 2.95 S |
|
- | |||||
| 364 | WB2X8443 | Spacer |
|
- | |||||
| 366 | WB2X3241 | Handle Spacer |
|
- | |||||
| 375 | WB2X8125 | Insulation |
|
- | |||||
| 451 | WB58X5015 | Drawer Asm |
|
- | |||||
| 452 | WB2X840 | Slide Top |
|
- | |||||
| 453 | WB2X3394 | Plug Button |
|
- | |||||
| 457 | WB56X7069 | Panel Drawer Wh |
|
- | |||||
| 459 | WB1X537 | Screw |
|
- | |||||
| 529 | WB49X5547 | Pan Broiler |
|
- | |||||
| 530 | WB48X5107 | Grid Broiler Pan |
|
- | |||||
| 769 | WB1X500 | Screw |
|
- |
