SELECT A DIAGRAM

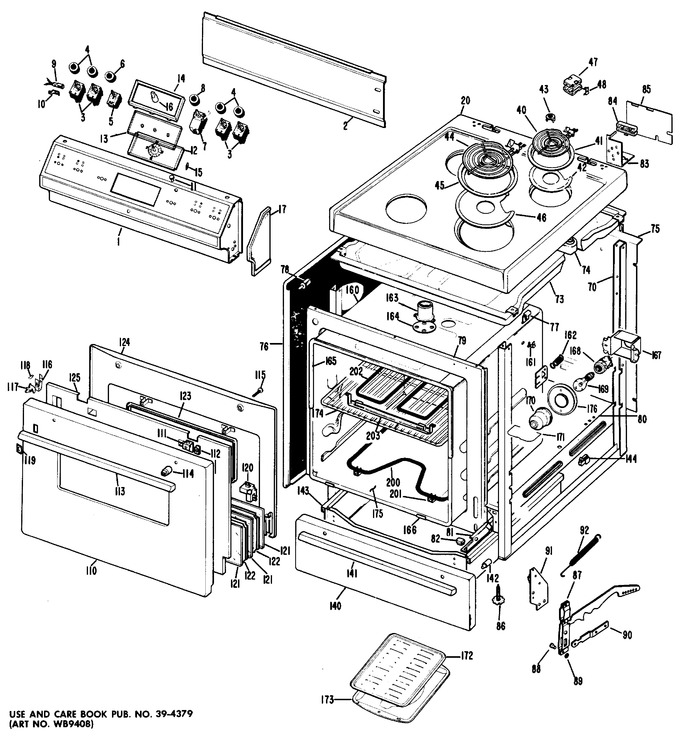

1 - Component Group
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WB61X5993 | Control Panel - Cf |
|
- | |||||
| 1 | WB61X5994 | Control Panel - Fa |
|
- | |||||
| 1 | WB61X5995 | Control Panel - Ha |
|
- | |||||
| 1 | WB61X5992 | Control Panel - Wh |
|
- | |||||
| 1 | WB61X5996 | Control Panel - Ad |
|
- | |||||
| 2 | WB63X5193 | Back Cover |
|
- | |||||
| 3 | WB21X242 | Switch, Inf Surface Unit |
|
- | |||||
| 3 | WB1X5218 | Screw Mtg. S.u. Switch |
|
- | |||||
| 4 | WB3X5479 | Knob Surface Unit |
|
- | |||||
| 5 | WB1X5218 | Screw Mtg. S.u. Switch |
|
- | |||||
| 5 | WB22X5023 | Switch, Oven L.o. |
|
- | |||||
| 6 | WB3X5502 | Knob Oven Switch |
|
- | |||||
| 7 | WB21X177 | Thermostat, Oven L.o. |
|
- | |||||
| 7 | WB2X5760 | Sleeving |
|
- | |||||
| 7 | WB1X5218 | Screw Mtg. S.u. Switch |
|
- | |||||
| 8 | WB3X5481 | Knob Thermostat |
|
- | |||||
| 9 | WB2X1608 | Neon Lamp 118v |
|
$ 31.65 | |||||
| 10 | WB2X1185 | Clip Lamp |
|
- | |||||
| 11 | WB25X65 | Jewel |
|
- | |||||
| 12 | WB19X149 | Timer |
|
- | |||||
| 13 | WB36X5320 | Crystal Timer |
|
- | |||||
| 14 | WB7X5607 | Bezel |
|
- | |||||
| 15 | WB2X3325 | Clip Mtg Timer |
|
- | |||||
| 16 | WB3X459 | Knob Timer |
|
- | |||||
| 17 | WB7X6692 | End Casting - Lh |
|
- | |||||
| 17 | WB7X6691 | End Casting - Rh |
|
- | |||||
| 17 | WZ05X0250 | Scr 8-32 T Hxw 5/16 S |
|
- | |||||
| 20 | WZ04X0350 | Scr 10-16 B Hxw 5/8 S |
|
- | |||||
| 20 | WZ04X0219 | Screw Mtg. Cooktop Rear |
|
- | |||||
| 20 | WB62X5230 | Cooktop - Ad |
|
- | |||||
| 20 | WB62X5229 | Cooktop - Ha |
|
- | |||||
| 20 | WB62X5227 | Cooktop - Cf |
|
- | |||||
| 20 | WB62X5226 | Cooktop - Wh |
|
- | |||||
| 20 | WB2X5165 | Clip Cable |
|
- | |||||
| 20 | WB62X5228 | Cooktop - Fa |
|
- | |||||
| 40 | WB1X500 | Terminal Screw |
|
- | |||||
| 40 | WB30X342 | Surface Unit, 6" |
|
- | |||||
| 40 | WB1X5485 | Screw Mtg. - Units To Co |
|
- | |||||
| 41 | WB31X5013 | Trim Ring 6" |
|
- | |||||
| 42 | WB32X36 | Unit Pan 6" |
|
- | |||||
| 43 | WB32X51 | Center Trim 8" Unit |
|
- | |||||
| 43 | WB32X52 | Center Trim 6" Unit |
|
- | |||||
| 43 | WB1X500 | Terminal Screw |
|
- | |||||
| 45 | WB31X5014 | Trim Ring 8" |
|
Immediately | $ 13.55 | ||||
| 46 | WB32X5013 | Unit Pan 8" |
|
- | |||||
| 47 | WB2X2398 | Term Block Single Coil |
|
- | |||||
| 47 | WB2X1351 | Term Block Double Coil |
|
- | |||||
| 48 | WB2X574 | 3 In 1 Insulator Clip |
|
- | |||||
| 70 | WB63X5096 | "u" Frame Assembly |
|
- | |||||
| 73 | WB63X5132 | Top Insulation Cover |
|
- | |||||
| 74 | WB38X5032 | Oven Vent |
|
- | |||||
| 75 | WB63X5191 | Back Cover |
|
- | |||||
| 76 | WB56X5732 | Side Panel - Ad |
|
- | |||||
| 76 | WB56X5731 | Side Panel - Ha |
|
- | |||||
| 76 | WB56X5728 | Side Panel - Wh |
|
- | |||||
| 76 | WB56X5729 | Side Panel - Cf |
|
- | |||||
| 76 | WB56X5730 | Side Panel - Fa |
|
- | |||||
| 77 | WB2X5522 | Mounting Clip |
|
- | |||||
| 78 | WB2X5828 | Sleeving |
|
- | |||||
| 78 | WB24X105 | Switch |
|
- | |||||
| 79 | WB63X5094 | Oven Front |
|
- | |||||
| 80 | WB63X5190 | Lower Cover Assembly |
|
- | |||||
| 81 | WB39X5008 | Drawer Guide |
|
- | |||||
| 82 | WB2X5115 | Slide - Nylon (at Front |
|
- | |||||
| 83 | WB2X6519 | Bracket Terminal Block |
|
- | |||||
| 84 | WB17X168 | Terminal Block-power |
|
- | |||||
| 84 | WB2X646 | Plate Ground |
|
- | |||||
| 85 | WB2X6521 | Terminal Box Cover |
|
- | |||||
| 86 | WB1X450 | Leg Leveling |
|
- | |||||
| 87 | WB10X5109 | Doorguideasm.lh And Rh |
|
- | |||||
| 88 | WB2X5682 | Hinge Pin For Serv., 3/1 |
|
- | |||||
| 89 | WB2X5681 | Retaining Ring |
|
- | |||||
| 90 | WB10X5022 | Door Support - Lh And Rh |
|
- | |||||
| 91 | WB10X5042 | Hinge Support Asm. - Lh |
|
- | |||||
| 91 | WB1X5134 | Screw Mt. Hinge Support |
|
- | |||||
| 91 | WB10X5041 | Hinge Support Asm. - Rh |
|
- | |||||
| 92 | WB9X5018 | Door Spring |
|
- | |||||
| 110 | WB56X5714 | Panel - Cf |
|
- | |||||
| 110 | WB56X5715 | Panel - Fa |
|
- | |||||
| 110 | WB56X5713 | Panel - Wh |
|
- | |||||
| 110 | WB2X6530 | Insulation |
|
- | |||||
| 110 | WB56X5717 | Panel - Ad |
|
- | |||||
| 110 | WB56X5716 | Panel - Ha |
|
- | |||||
| 111 | WB2X6036 | Handle Support |
|
- | |||||
| 112 | WB1X5065 | Speed Nut |
|
- | |||||
| 113 | WB15X5125 | Handle |
|
- | |||||
| 114 | WB1X5530 | Grommet |
|
- | |||||
| 115 | WB1X5272 | Handle Mtg. Screw |
|
- | |||||
| 116 | WB2X5218 | Peek Light Spring |
|
- | |||||
| 117 | WB2X5410 | Cam |
|
- | |||||
| 118 | WB2X5217 | Cam Link |
|
- | |||||
| 119 | WB7X5022 | Trim Plate Lower Oven |
|
- | |||||
| 120 | WB1X5484 | Screw Mtg. - Window To L |
|
- | |||||
| 120 | WB2X5505 | Bracket Window |
|
- | |||||
| 121 | WB16X5318 | Window-outer Middle Inne |
|
- | |||||
| 122 | WB2X6528 | Frame Window |
|
- | |||||
| 123 | WB2X5500 | Gasket Window |
|
- | |||||
| 124 | WB55X5123 | Inner Door Liner |
|
- | |||||
| 125 | WB2X6821 | Heat Shield |
|
- | |||||
| 125 | WB1X5484 | Screw Mtg. - Window To L |
|
- | |||||
| 125 | WB1X5493 | Speednut Mtg. Heat Shiel |
|
- | |||||
| 140 | WB56X5822 | Panel - Fa |
|
- | |||||
| 140 | WB56X5821 | Panel - Cf |
|
- | |||||
| 140 | WB56X5820 | Panel - Wh |
|
- | |||||
| 140 | WB56X5824 | Panel - Ad |
|
- | |||||
| 140 | WB56X5823 | Panel - Ha |
|
- | |||||
| 141 | WB15X5125 | Handle |
|
- | |||||
| 141 | WB1X5203 | Mounting Screw |
|
- | |||||
| 141 | WB1X560 | Washer |
|
- | |||||
| 142 | WB2X5521 | Bumper |
|
- | |||||
| 143 | WB58X5003 | Drawer |
|
- | |||||
| 144 | WB2X5116 | Drawer Slide - Nylon (at |
|
- | |||||
| 160 | WB53X5062 | Oven Liner Package |
|
- | |||||
| 160 | WB2X5208 | Insulation Back |
|
- | |||||
| 160 | WB1X119 | Washer Contoured |
|
- | |||||
| 160 | WB2X5206 | Liner Insulation Wrap |
|
- | |||||
| 160 | WB5X196 | Screw At Oven Front |
|
- | |||||
| 161 | WB2X5041 | Clip For Thermostat Capi |
|
- | |||||
| 162 | WB9X5022 | Oven Liner Mounting Spri |
|
- | |||||
| 163 | WB38X5037 | Vent Tube |
|
- | |||||
| 164 | WB49X5005 | Vent Tube Baffle |
|
- | |||||
| 165 | WB2X5103 | Gasket - Top And Sides |
|
$ 16.61 | |||||
| 166 | WB2X5084 | Gasket - Bottom (1-1/2") |
|
- | |||||
| 167 | WB2X3447 | Bracket Support |
|
- | |||||
| 168 | WB8X191 | Receptacle |
|
- | |||||
| 170 | WG02F04576 | Ov Lamp Lens (Replaces: WB36X389) |
|
$ 20.65 | |||||
| 171 | WB2X2885 | Bail |
|
- | |||||
| 172 | WB48X5002 | Broiler Pan Rack |
|
- | |||||
| 173 | WB49X88 | Broil Pan |
|
- | |||||
| 174 | WB48X5012 | Shelf Straight |
|
- | |||||
| 176 | WB2X3448 | Trim Lamp |
|
- | |||||
| 200 | UB813 | Unit Asm Bake (Replaces: WB44X5083) |
|
Immediately | $ 49.95 | ||||
| 200 | WB1X500 | Terminal Screw |
|
- | |||||
| 201 | WB2X5729 | Foot - Bake Unit |
|
- | |||||
| 202 | WB1X500 | Terminal Screw |
|
- | |||||
| 202 | WB44X5074 | Broil Unit 240v L.o. |
|
- | |||||
| 203 | WB1X5166 | Mounting Screw |
|
- | |||||
| 203 | WB2X1452 | Support Broil |
|
- |
