1 - Control Panel & Cooktop

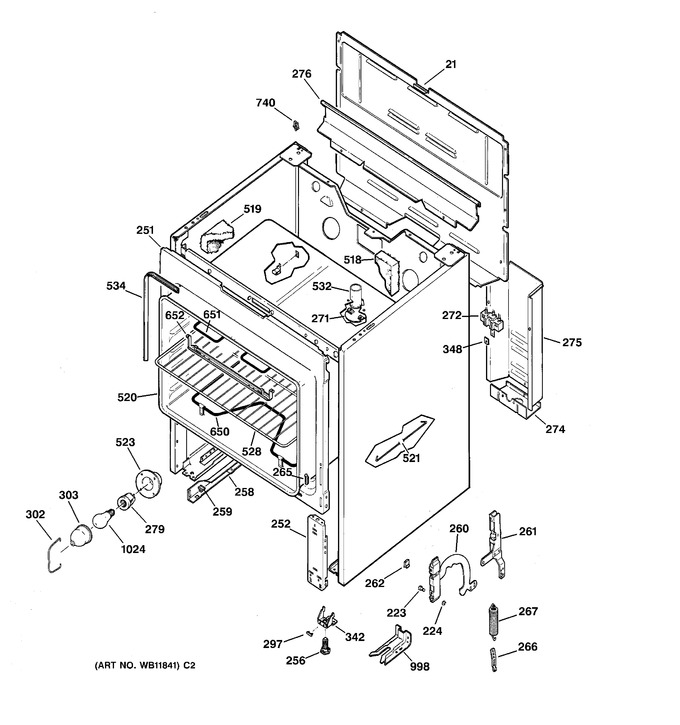

2 - Body Parts
3 - Door & Drawer Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 21 | WB49X10011 | Cover Back |
|
- | |||||
| 223 | WG02A00596 | Pin Hinge Door (Replaces: WB2X6195) |
|
$ 4.20 | |||||
| 224 | WB2X1082 | Ring Retaining |
|
- | |||||
| 251 | WB56X7075 | Frame Front |
|
- | |||||
| 252 | WB49X10032 | Panel Filler Wh |
|
- | |||||
| 252 | WB49X10040 | Panel Filler Ad |
|
- | |||||
| 256 | WG02A00475 | Foot Leveling (Replaces: WB02X10521) |
|
Immediately | $ 6.35 | ||||
| 258 | WB39X51 | Drawer Guide Rh & Lh |
|
- | |||||
| 259 | WB02X10562 | Slide Guide |
|
- | |||||
| 260 | WB10X5206 | Hinge Lever |
|
- | |||||
| 261 | WB10X149 | Hinge Spt Lh |
|
- | |||||
| 261 | WB10X148 | Hinge Spt Rh |
|
- | |||||
| 262 | WB2X3193 | Clip Shim |
|
- | |||||
| 265 | WB2X6342 | Guide Hinge Lever |
|
- | |||||
| 266 | WB2X2506 | Hook Door Spring |
|
- | |||||
| 267 | WB9X146 | Spring Door |
|
- | |||||
| 271 | WB2X1626 | Baffle |
|
- | |||||
| 272 | WB17X5095 | Block Terminal |
|
- | |||||
| 274 | WB2X8247 | Knockout Plate |
|
- | |||||
| 275 | WB2X8249 | Guard Terminal |
|
- | |||||
| 276 | WB2X8105 | Divider Wiring |
|
- | |||||
| 279 | WB8X5095 | Receptacle |
|
- | |||||
| 297 | WB02X10522 | Bumper Range |
|
- | |||||
| 302 | WB2X7694 | Light Lens Bail |
|
- | |||||
| 303 | WG02F04576 | Ov Lamp Lens (Replaces: WB36X389) |
|
$ 20.65 | |||||
| 342 | WB02X10520 | Foot Extension |
|
- | |||||
| 348 | WB2X646 | Plate Ground |
|
- | |||||
| 518 | WB2X8120 | Insulation Back |
|
- | |||||
| 519 | WB2X8121 | Insulation Wrap |
|
$ 39.70 | |||||
| 520 | WB53X5149 | Liner Asm Weld Oven 23in |
|
- | |||||
| 520 | WB2X8441 | Clip Thermomstat |
|
- | |||||
| 521 | WB9X5118 | Hook Asm |
|
- | |||||
| 521 | WB9X88 | Lockwasher |
|
- | |||||
| 523 | WB2X7693 | Oven Light Cup |
|
- | |||||
| 528 | WB48X5099 | Rack Oven |
|
$ 90.78 | |||||
| 532 | WB38X5063 | Tube Vent |
|
- | |||||
| 534 | WB2X8123 | Gasket |
|
- | |||||
| 650 | WB44X10009 | Bake Element Push On |
|
- | |||||
| 651 | WB44X10015 | Broil Push/bushing |
|
- | |||||
| 652 | WB2X1452 | Support Broil |
|
- | |||||
| 740 | WB2X7226 | Clip Wire Black |
|
- | |||||
| 998 | WB02X10560 | Bracket Asm Anti Tip |
|
- | |||||
| 1024 | WX12X1510 | Bulb Oven Light |
|
- |
