SELECT A DIAGRAM

1 - Control Panel & Cooktop


2 - Body Parts

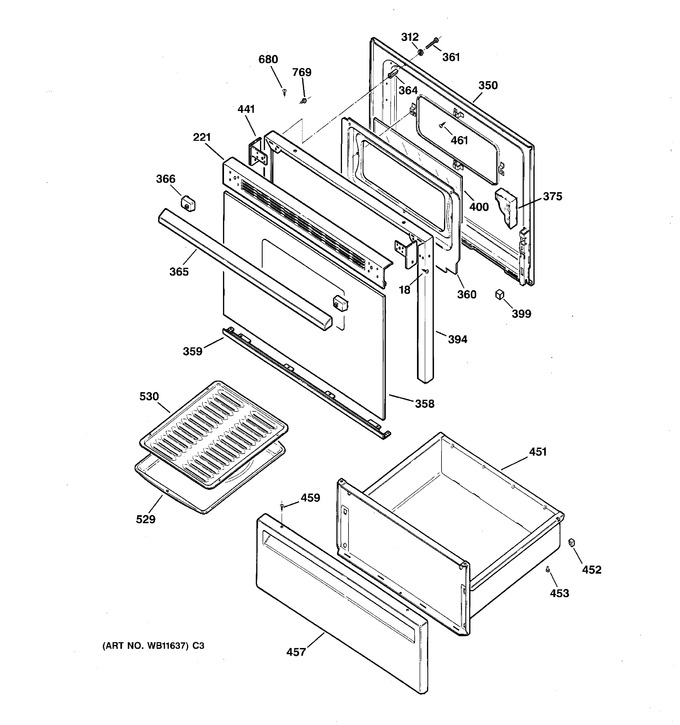

3 - Door & Drawer Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
18	WR1X1768		Scr 6-20 Ab Fht 3/8 S		Appelez-nous	-
221	WB7X7342		Trim Vent (black)		Appelez-nous	-
312	WB1X119		Washer Contoured		Appelez-nous	-
350	WB55X5373		Door Liner		Appelez-nous	-
358	WB36X5691		Glass Door		Appelez-nous	-
359	WB7X7195		Trim Bottom (blk)		Appelez-nous	-
360	WB49X5522		Guard Insulation		Appelez-nous	-
361	WB1X5873		Scr 10-16 B Pnp 2.95 S		Appelez-nous	-
364	WB2X8558		Spacer		Appelez-nous	-
365	WB15X5202		Handle - Chrome		Appelez-nous	-
366	WB2X8245		Spacer Handle		Appelez-nous	-
375	WB2X8411		Insulation		Appelez-nous	-
394	WB7X7340		Trim Door Lf Blk		Appelez-nous	-
394	WB7X7341		Trim Door Rt Blk		Appelez-nous	-
399	WB2X3285		Pad		Appelez-nous	-
400	WB36X526		Crystal Window				$ 140.86
441	WG02L01458		End Cap Door R - Black   (Replaces: WB7X7289)				$ 6.12
441	WB7X7290		End Cap Door L - Black		Appelez-nous	-
451	WB58X5015		Drawer Asm		Appelez-nous	-
452	WB2X840		Slide Top		Appelez-nous	-
453	WB2X3394		Plug Button		Appelez-nous	-
457	WB56X7032		Panel Drawer Ad		Appelez-nous	-
457	WB56X7069		Panel Drawer Wh		Appelez-nous	-
459	WB1X537		Screw		Appelez-nous	-
461	WB1X593		Screw - Door Asm (4 Per)		Appelez-nous	-
529	WB49X5547		Pan Broiler		Appelez-nous	-
530	WB48X5107		Grid Broiler Pan		Appelez-nous	-
680	WR1X1850		Scr 7-19 Hxw 1/2		Appelez-nous	-
769	WB1X500		Scr 8-18 B Hxw 1/4 S		Appelez-nous	-
