SELECT A DIAGRAM

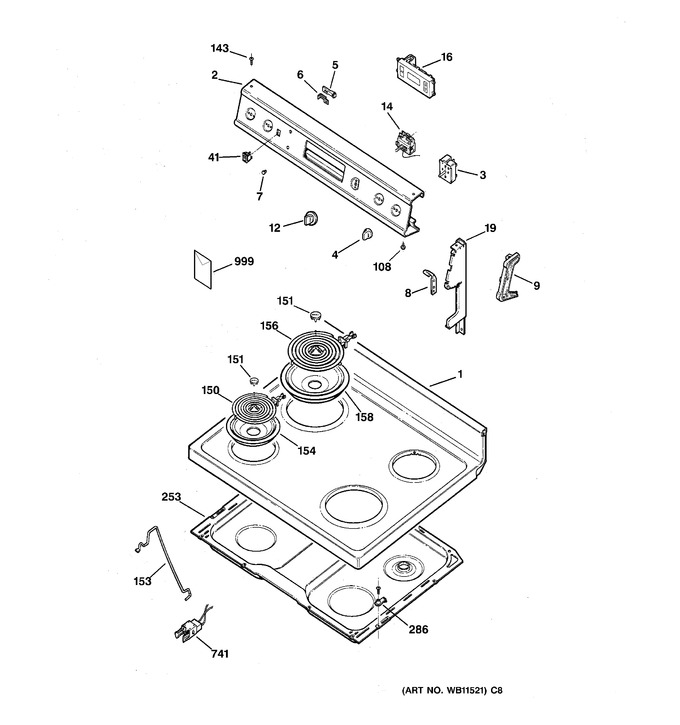

1 - Control Panel & Cooktop


2 - Body Parts


3 - Door & Drawer Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WB62X5452		Weld Asm Rangetop Ad		Appelez-nous	-
1	WB62X5451		Weld Asm Rangetop Wh		Appelez-nous	-
2	WB36X5765		Trim Bracket Asm		Appelez-nous	-
3	WB24X5333		Switch Inf Surface Un 6"		Appelez-nous	-
3	WB24X5334		Switch Inf Surface Un 8"		Appelez-nous	-
4	WB3X5792		Knob Surface Unit		Appelez-nous	-
5	WB2X1608		Neon Lamp 118v				$ 31.65
6	WB2X1185		Clip Lamp		Appelez-nous	-
7	WB25X65		Jewel		Appelez-nous	-
8	WB02X10486		Pin Hinge L		Appelez-nous	-
8	WB02X10485		Pin Hinge R		Appelez-nous	-
9	WB7X7136		End Cap Right		Appelez-nous	-
9	WB7X7137		End Cap Left		Appelez-nous	-
12	WB3X5793		Knob Thermostat		Appelez-nous	-
14	WB20X5071		Thermostat Top Heat Sp		Appelez-nous	-
16	WB27X5598		Timer Tod Led Asm		Appelez-nous	-
19	WB07X10154		Plate End Lh Bk		Appelez-nous	-
19	PLATE END RH BK		Plate End Rh Bk		Appelez-nous	-
41	WB24X5347		Switch Oven Lamp - Blk		Appelez-nous	-
108	WB1X5904		Scr 8-18 Ba Por 3/4 Sn		Appelez-nous	-
143	WB1X5860		Screw		Appelez-nous	-
150	WB30X5119		6" Surface Element		Appelez-nous	-
151	WG02F04803		Trim Center   (Replaces: WB31X5021)				$ 4.78
153	WB2X8114		Rod Support		Appelez-nous	-
154	WB32X5075		Burner Bowl 6"		Appelez-nous	-
156	WB30X5120		Coil Asm 8 Inch P I		Appelez-nous	-
158	WB32X5076		Burner Bowl 8"				$ 10.45
253	WB49X5566		Box Cooktop		Appelez-nous	-
286	WB2X8107		Strike Cooktop		Appelez-nous	-
741	WG02A00459		Clip Receptacle   (Replaces: WB2X8228)			Immediately	$ 50.66
999	49-8918		Pm Manual Use & Care		Appelez-nous	-
999	31-20701		Pm Manual Mini		Appelez-nous	-
999	49-8896		Pm Instruction Install		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
