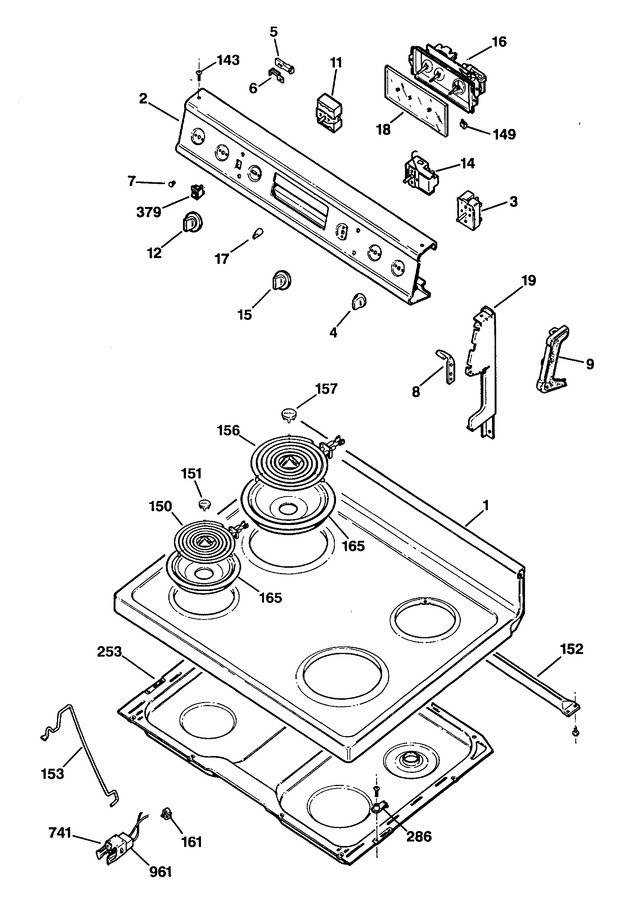

1 - Component Group
2 - Component Group
3 - Component Group
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WB62X5427 | Cooktop Wh |
|
- | |||||
| 1 | WB62X5428 | Cooktop Ad |
|
- | |||||
| 2 | WB36X5710 | Trim & Bracket Asm |
|
- | |||||
| 3 | WB24X5333 | Switch Infinite Control |
|
- | |||||
| 4 | WB3X5792 | Knob Surface Unit |
|
- | |||||
| 5 | WB2X1608 | Neon Lamp 118v |
|
$ 31.65 | |||||
| 6 | WB24X5334 | Switch Infinite Control |
|
- | |||||
| 7 | WB25X65 | Jewel |
|
- | |||||
| 8 | WB2X8126 | Pin Hinge R |
|
- | |||||
| 8 | WB2X8127 | Pin Hinge L |
|
- | |||||
| 9 | WB7X7137 | End Cap Left |
|
- | |||||
| 9 | WB7X7136 | End Cap Right |
|
- | |||||
| 11 | WB22X5131 | Switch, Oven |
|
- | |||||
| 14 | WB21X5208 | Thermostat Asm-up Ov |
|
- | |||||
| 14 | WB2X6494 | Barrier |
|
- | |||||
| 14 | WB2X6274 | Sleeve Cap Tube |
|
- | |||||
| 15 | WB3X5824 | Knob Thermostat |
|
- | |||||
| 16 | WB19X5306 | Timer |
|
- | |||||
| 17 | WB3X5814 | Knob |
|
- | |||||
| 18 | WB36X5574 | Crystal Timer |
|
- | |||||
| 19 | WB7X7166 | Plate End L |
|
- | |||||
| 19 | WB7X7165 | Plate End R |
|
- | |||||
| 149 | WB2X7702 | Clip Crystal |
|
- | |||||
| 150 | WB30X5121 | Unit Asm 6" P I |
|
- | |||||
| 151 | WB32X5089 | Trim Center |
|
- | |||||
| 152 | WB2X8128 | Bar Torsion |
|
- | |||||
| 152 | WB2X1351 | Term Block Double Coil |
|
- | |||||
| 153 | WB2X8114 | Rod Support |
|
- | |||||
| 156 | WB30X5122 | Unit Asm 8" P I |
|
- | |||||
| 161 | WS01A01095 | Clip Wire (Replaces: WB2X8115) |
|
Immediately | $ 3.97 | ||||
| 165 | WB32X5075 | Burner Bowl 6" |
|
- | |||||
| 165 | WB32X5076 | Burner Bowl 8" |
|
$ 10.45 | |||||
| 253 | WB49X5499 | Box Cooktop |
|
- | |||||
| 276 | WB2X8105 | Divider Wiring |
|
- | |||||
| 286 | WB2X8107 | Strike Cooktop |
|
- | |||||
| 349 | WB49X5533 | Reflector |
|
- | |||||
| 379 | WB24X5290 | Switch |
|
- | |||||
| 741 | WG02A00459 | Clip Receptacle (Replaces: WB2X8228) |
|
Immediately | $ 50.66 | ||||
| 752 | WB0X6542 | Screw |
|
- | |||||
| 769 | WB1X500 | Screw |
|
- | |||||
| 961 | WB2X1185 | Clip |
|
- | |||||
| 1458 | WB17X5073 | Terminal Blk Asm (1 Pin) |
|
- | |||||
| 32767 | WB2X7876 | Bracket Asm Anti-tip |
|
- | |||||
| 32767 | 31-0824 | Install Instr (anti-tip) |
|
- | |||||
| 32767 | 31-1426 | Pm Manual |
|
- |
