View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

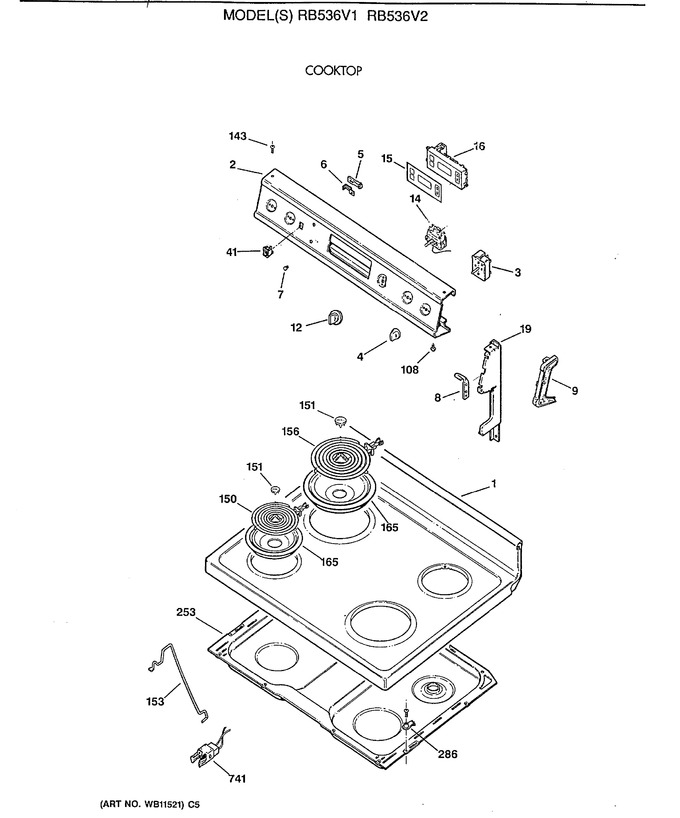

1 - Cooktop
2 - Body Parts
3 - Door & Drawer Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WB62X5454 | Weld Asm Rangetop Ad |
|
- | |||||
| 1 | WB62X5455 | Weld Asm Rangetop Wh |
|
- | |||||
| 2 | WB36X5765 | Trim & Bracket Asm |
|
- | |||||
| 3 | 5500-200 | Switch, Inf Surface Unit (Replaces: WB21X5243) |
|
Immediately | $ 60.94 | ||||
| 4 | WB3X5792 | Knob Surface Unit |
|
- | |||||
| 5 | WB2X1608 | Neon Lamp 118v |
|
$ 31.65 | |||||
| 6 | WB2X1185 | Clip |
|
- | |||||
| 7 | WB25X65 | Jewel |
|
- | |||||
| 8 | WB2X8127 | Pin Hinge L |
|
- | |||||
| 8 | WB2X8126 | Pin Hinge R |
|
- | |||||
| 9 | WB7X7137 | End Cap Left |
|
- | |||||
| 9 | WB7X7136 | End Cap Right |
|
- | |||||
| 12 | WB3X5793 | Knob Thermostat |
|
- | |||||
| 14 | WB20X5071 | Thermostat Top Heat Sp |
|
- | |||||
| 15 | WB27X5561 | Faceplate |
|
- | |||||
| 16 | WB27X5559 | Clock Tod Ii |
|
- | |||||
| 19 | WB7X7274 | Plate End Rh - Almond |
|
- | |||||
| 19 | WB7X7275 | Plate End Lh - Almond |
|
- | |||||
| 19 | WB7X7272 | Plate End Rh - White |
|
- | |||||
| 19 | WB7X7273 | Plate End Lh - White |
|
- | |||||
| 41 | WB24X5347 | Switch Oven Lamp - Blk |
|
- | |||||
| 108 | WB1X5904 | Scr 8-18 Ba Por 3/4 Sn |
|
- | |||||
| 143 | WB1X5860 | Screw |
|
- | |||||
| 150 | WG02F05372 | 6" Surf Elem (Replaces: WB30M1) |
|
Immediately | $ 68.23 | ||||
| 151 | WG02F04803 | Trim Center (Replaces: WB31X5021) |
|
$ 4.78 | |||||
| 153 | WB2X8114 | Rod Support |
|
- | |||||
| 156 | WB30X5130 | 8" P.i. S/u Alum |
|
- | |||||
| 165 | WB32X5076 | Burner Bowl 8" Chrome |
|
$ 10.45 | |||||
| 165 | WB32X5075 | Burner Bowl 6" Chrome |
|
- | |||||
| 251 | WB56X7075 | Frame Front |
|
- | |||||
| 253 | WB49X5566 | Box Cooktop |
|
- | |||||
| 267 | WB9X146 | Spring Door |
|
- | |||||
| 286 | WB2X8107 | Strike Cooktop |
|
- | |||||
| 349 | WB49X5533 | Reflector |
|
- | |||||
| 521 | WB9X5118 | Hook Asm |
|
- | |||||
| 741 | WG02A00459 | Clip Receptacle (Replaces: WB2X8228) |
|
Immediately | $ 50.66 | ||||
| 752 | WB0X6542 | Screw |
|
- | |||||
| 875 | WG04A00781 | Scr 8-18 Ab Hxw 3/8 S (Replaces: WH2X930) |
|
Immediately | $ 3.97 | ||||
| 904 | WB1X5550 | Scr 8/32 Tf Flr 1/4 S |
|
- | |||||
| 32767 | WB2X7876 | Bracket Asm Anti-tip |
|
- | |||||
| 32767 | 31-20213 | Pm Manual Mini |
|
- | |||||
| 32767 | 340732 | Tape |
|
- | |||||
| 32767 | 39-4745 | Pm Manual Use & Care |
|
- | |||||
| 32767 | 31-0824 | Install Instr (anti-tip) |
|
- |
